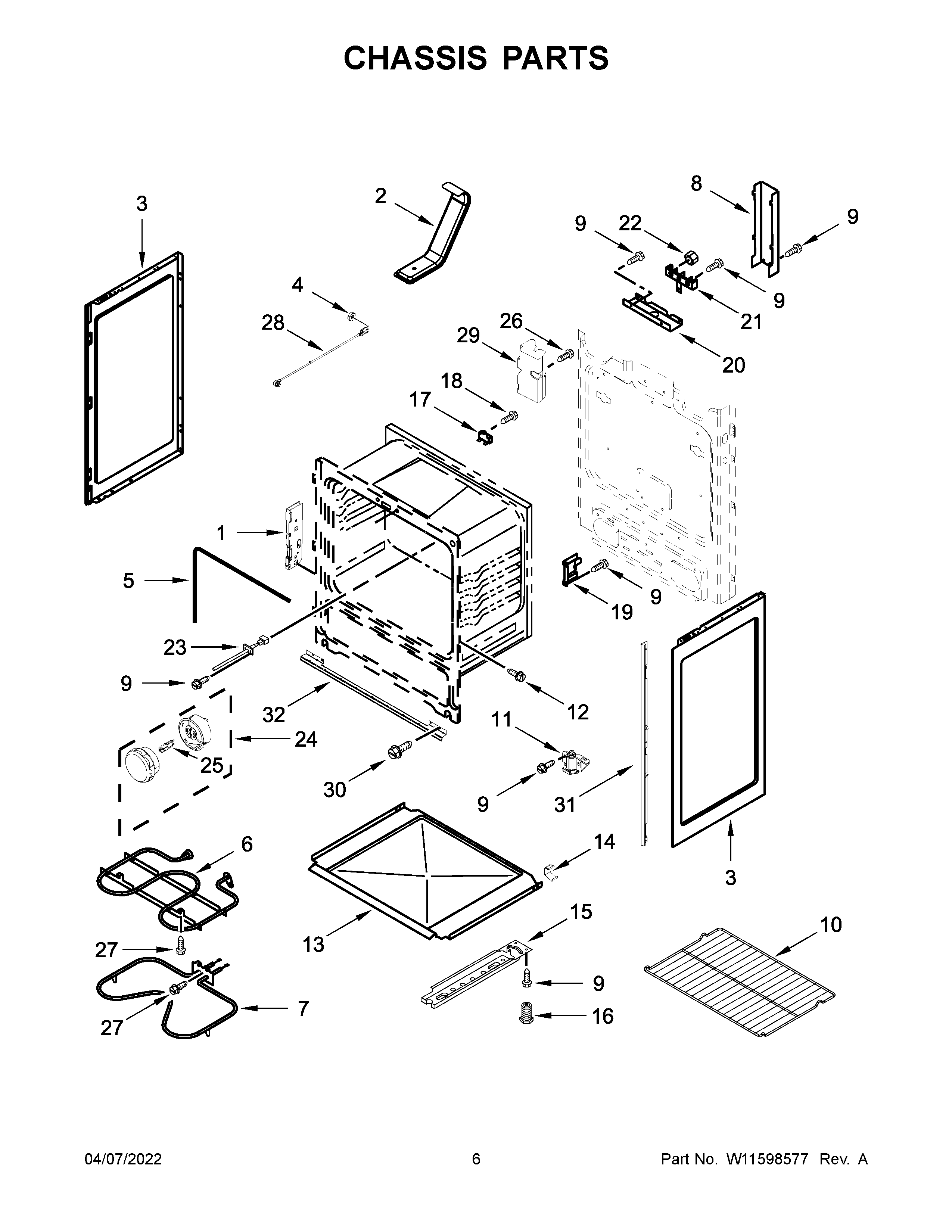

YAER6303MFW5 04 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	WPW10208653 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11311894 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	WPW10134285 Whirlpool Vent Tube
3	WPW10575396 Whirlpool Side Panel
4	Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	WPW10326122 Whirlpool Black Cover
9	WP3196557 Whirlpool Screw
10	RACK-OVEN
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15A	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
22	WP3400029 Whirlpool Dishwasher Nut
23	WPW10181986 Whirlpool Oven Sensor
24	W11594170 Whirlpool Light Socket
25	BULB-LIGHT
26	W11135756 Whirlpool Screw Torx
27	WP3196154 Whirlpool Screw Assembly
28	W11226497 Whirlpool Power Cord
29	W11135752 Whirlpool Anchor Tip
30	W11169708 Whirlpool Screw
31	W11594227 Whirlpool Rail Mounting
32	W11464547 Whirlpool Support Bracket
