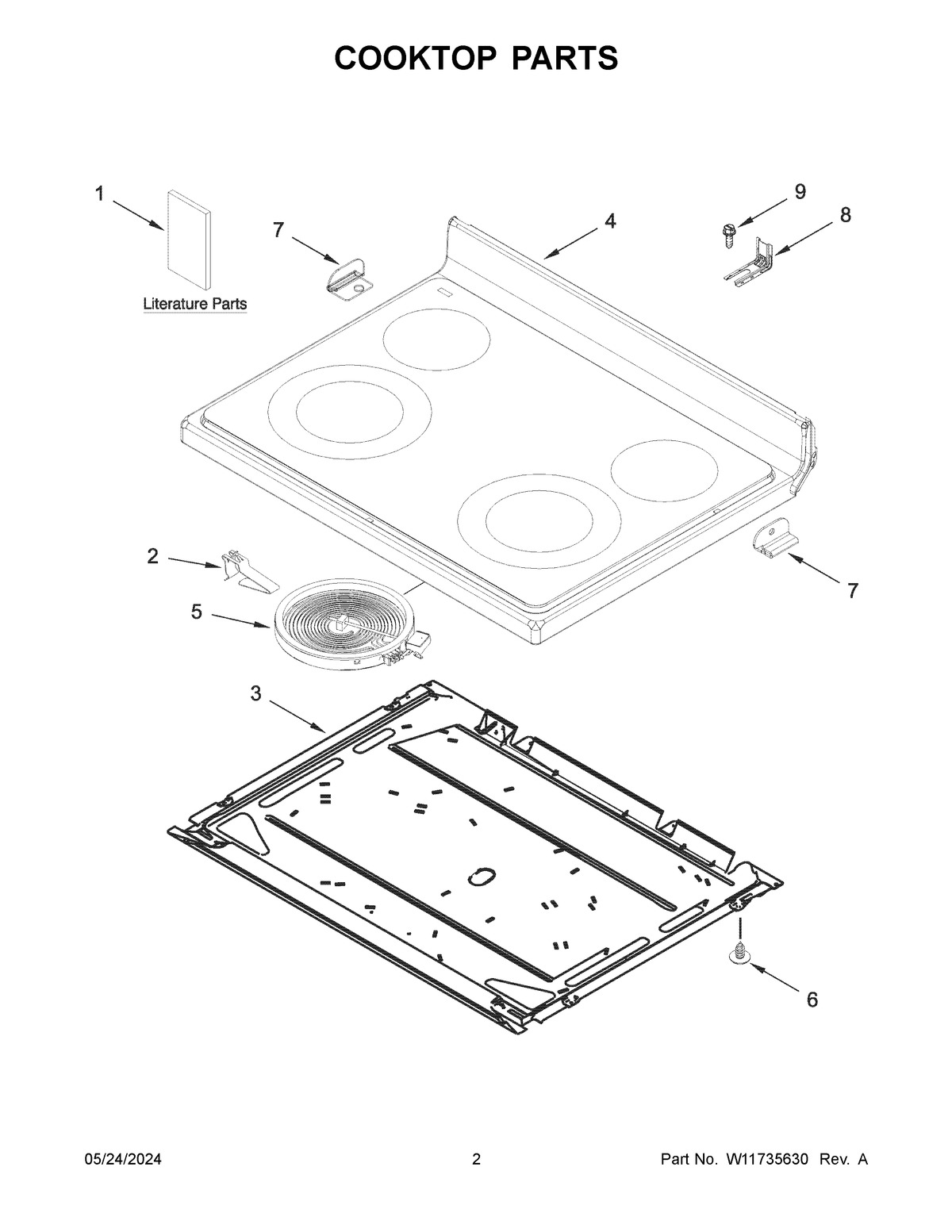

YAER6303MFW6 02 – COOKTOP PARTS

Products

PositionProduct
NIW11452628 Whirlpool Wire Harness
NIFOLLOWING PARTS NOT ILLUSTRATED
NIW11171894 Whirlpool Wire Harness
NIW11596058 Whirlpool Wire Harness
1BQUICK START GUIDE
1TECH SHEET
1AOWNERS MANUAL
2W11663556 Whirlpool Spring Assembly
3PAN
4W10906139 Whirlpool Cooktop
5WP8273993 Whirlpool Surface Element
5AELMNT-SURF
6WP3196557 Whirlpool Screw
7W10607641 Whirlpool Clip
7AW10607642 Whirlpool Clip
8W11447673 Whirlpool Range Tip Anchor
9SCREW, ANTI-TIP KIT
