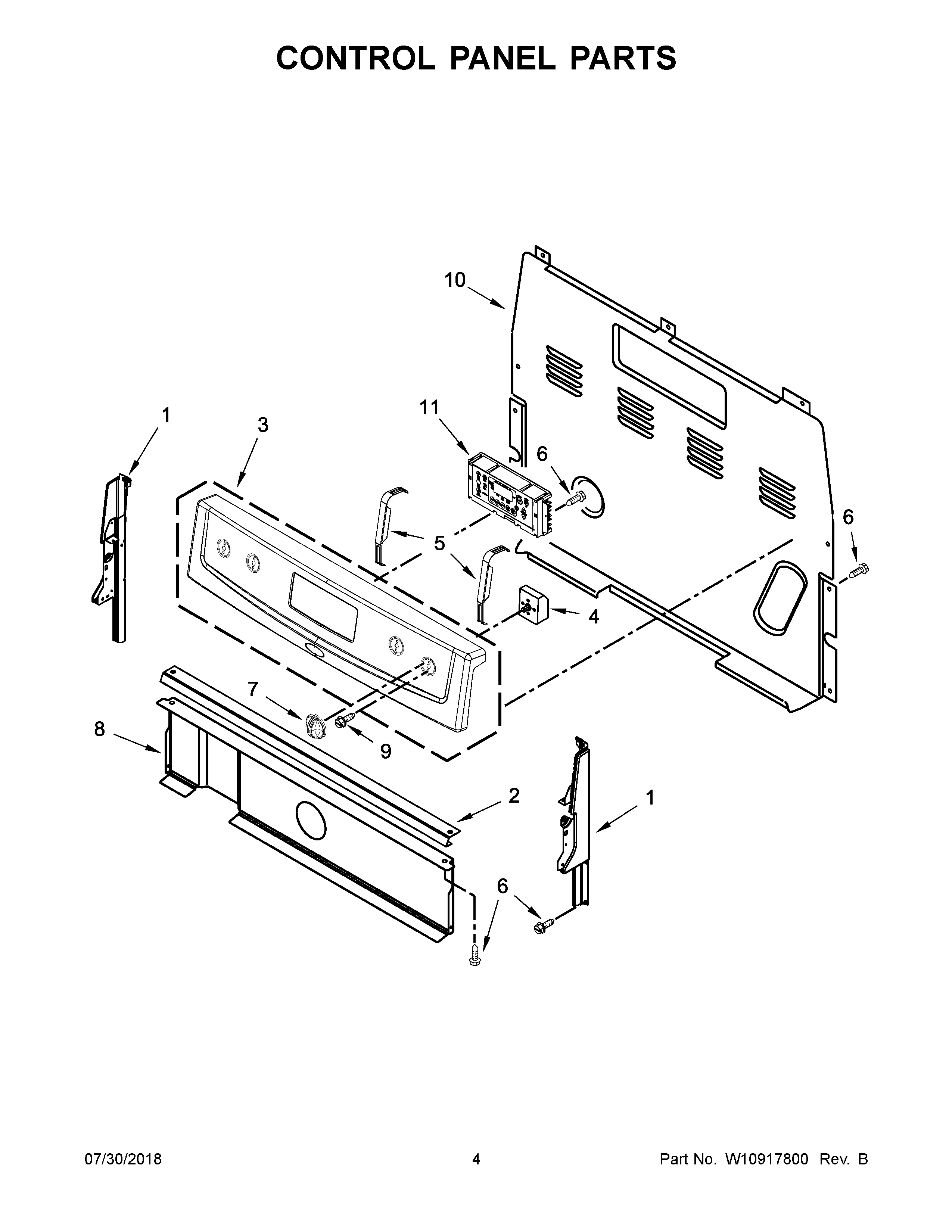

YAER6603SFS0 03 – CONTROL PANEL PARTS

Products

Position	Product
1C	ENDCAP (WHITE (RIGHT))
1	ENDCAP (BLACK (LEFT))
1B	ENDCAP (BLACK (RIGHT))
1A	ENDCAP (WHITE (LEFT))
2	BRACKET, CONSOLE MOUNTING
3A	MAY W11157019
3B	MAY W11157021
3	MAY W11157020
4B	SWITCH, INFINITE (DUAL) (LEFT FRONT)
4	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4A	SWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5	BRACKET, CONTROL
6	SCREW
7B	KNOBS (STAINLESS)
7A	KNOBS (WHITE)
7	KNOBS (BLACK)
8	SHIELD, HEAT
9	SCREW
10	COVER, UPPER REAR
11A	CONTROL (LCC95) (WHITE)
11	CONTROL (LCC95) (BLACK)
