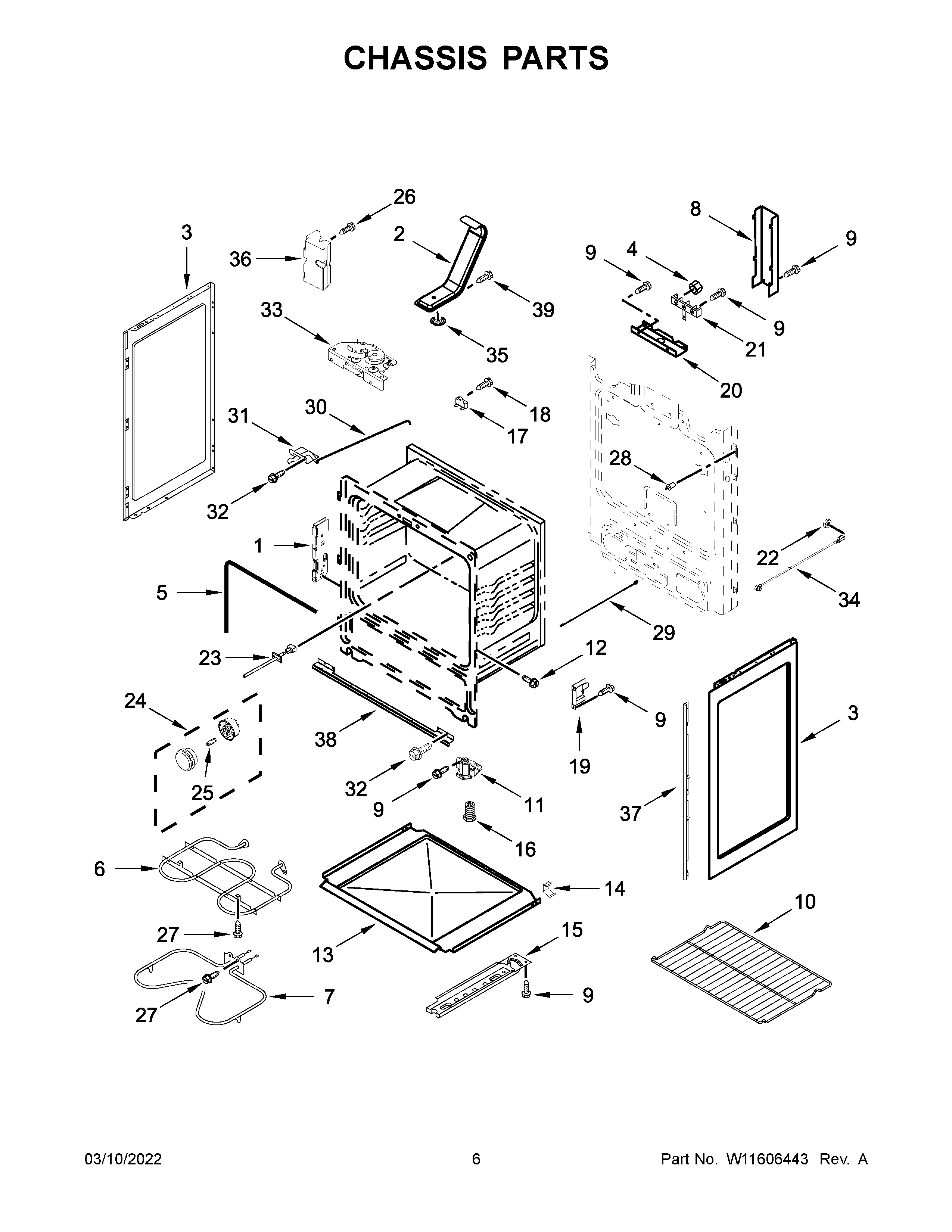

YAER6603SFS5 04 – CHASSIS PARTS

Products

Position	Product
NI	W11684918 Whirlpool Insulation
NI	CABINET (NOT A SERVICEABLE PART)
NI	W11311894 Whirlpool Insulation
NI	W11161831 Whirlpool Insulation
1	W10647259 Whirlpool Hinge Receiver
2	WPW10134285 Whirlpool Vent Tube
3	W11730303 Whirlpool Side Panel
4	WP3400029 Whirlpool Dishwasher Nut
5	W11542153 Whirlpool Door Gasket
6	W10856603 Whirlpool Broil Element
7	W11182108 Whirlpool Bake Element
8	WPW10326122 Whirlpool Black Cover
9	WP3196557 Whirlpool Screw
10	RACK-OVEN
11	WPW10341186 Whirlpool Refrigerator Front Levelling Leg
12	WPW10067840 Whirlpool Screw
13	WP8054068 Whirlpool Retainer
14	W10137382 Whirlpool Clip
15	WPW10306546 Whirlpool Base Rail
16	WPW10058460 Whirlpool Appliance Levelling Leg
17	WP3196548 Whirlpool Thermal Fuse
18	3196172 Whirlpool Oven Screw
19	W10404688 Whirlpool Bracket Support
20	W11728255 Whirlpool Service Bracket
21	WP8203546 Whirlpool Terminal Block
22	Nut
23	WPW10181986 Whirlpool Oven Sensor
24	W11594170 Whirlpool Light Socket
25	BULB-LIGHT
26	W11135756 Whirlpool Screw Torx
27	WP3196154 Whirlpool Screw Assembly
28	WP9757262 Whirlpool Light Switch
29	9757239 Whirlpool Oven Door Rod
30	Rod, Latch
31	WP9761013 Whirlpool Door Latch
32	W11169708 Whirlpool Screw
33	WPW10107840 Whirlpool Door Latch
34	W11226497 Whirlpool Power Cord
35	SCREEN, VENT
36	W11135752 Whirlpool Anchor Tip
37	W11594227 Whirlpool Rail Mounting
38	W11464547 Whirlpool Support Bracket
39	SCREW
