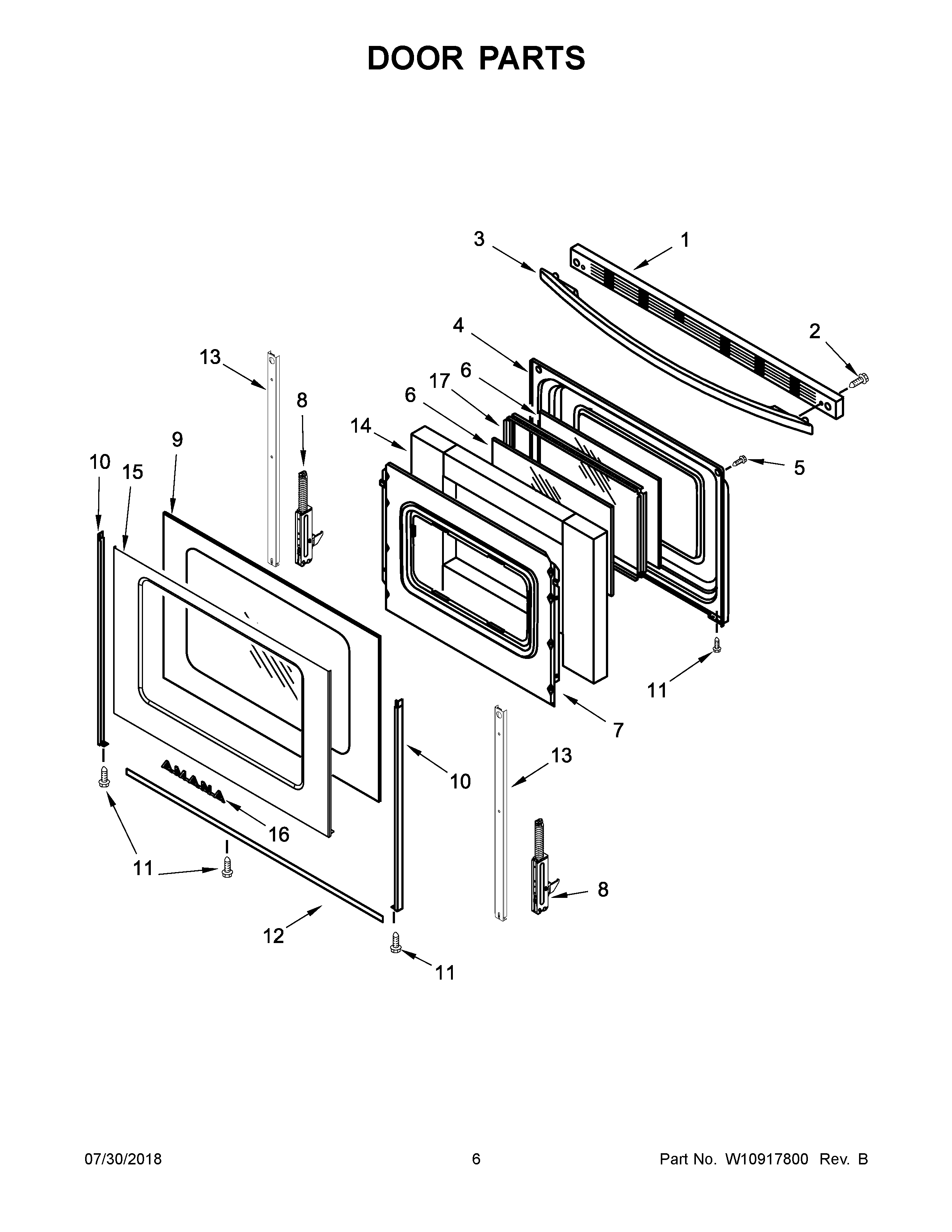

YAER6603SFW0 04 – DOOR PARTS

Products

Position	Product
1	TRIM, TOP (BLACK)
1A	TRIM, TOP (WHITE)
2	SCREW
3B	HANDLE, DOOR (STAINLESS)
3A	HANDLE, DOOR (WHITE)
3	HANDLE, DOOR (BLACK)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8B	HINGE, DOOR (PASSIVE)
8A	HINGE, ACTIVE
8	HINGE, ACTIVE (WITH SPRING)
9	GLASS, OUTER (BLACK)
9A	GLASS, OUTER (WHITE)
10	TRIM, SIDE (BLACK (LEFT))
10A	TRIM, SIDE (WHITE (LEFT))
10C	TRIM, SIDE (WHITE (RIGHT))
10B	TRIM, SIDE (BLACK (RIGHT))
11	SCREW
12A	TRIM, LOWER (WHITE)
12	TRIM, LOWER (BLACK)
13	STRAP, DOOR
14	INSULATION, DOOR STRIP
15	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
16B	BADGE (STAINLESS)
16A	BADGE (WHITE)
16	BADGE (BLACK)
17	FRAME, GLASS
