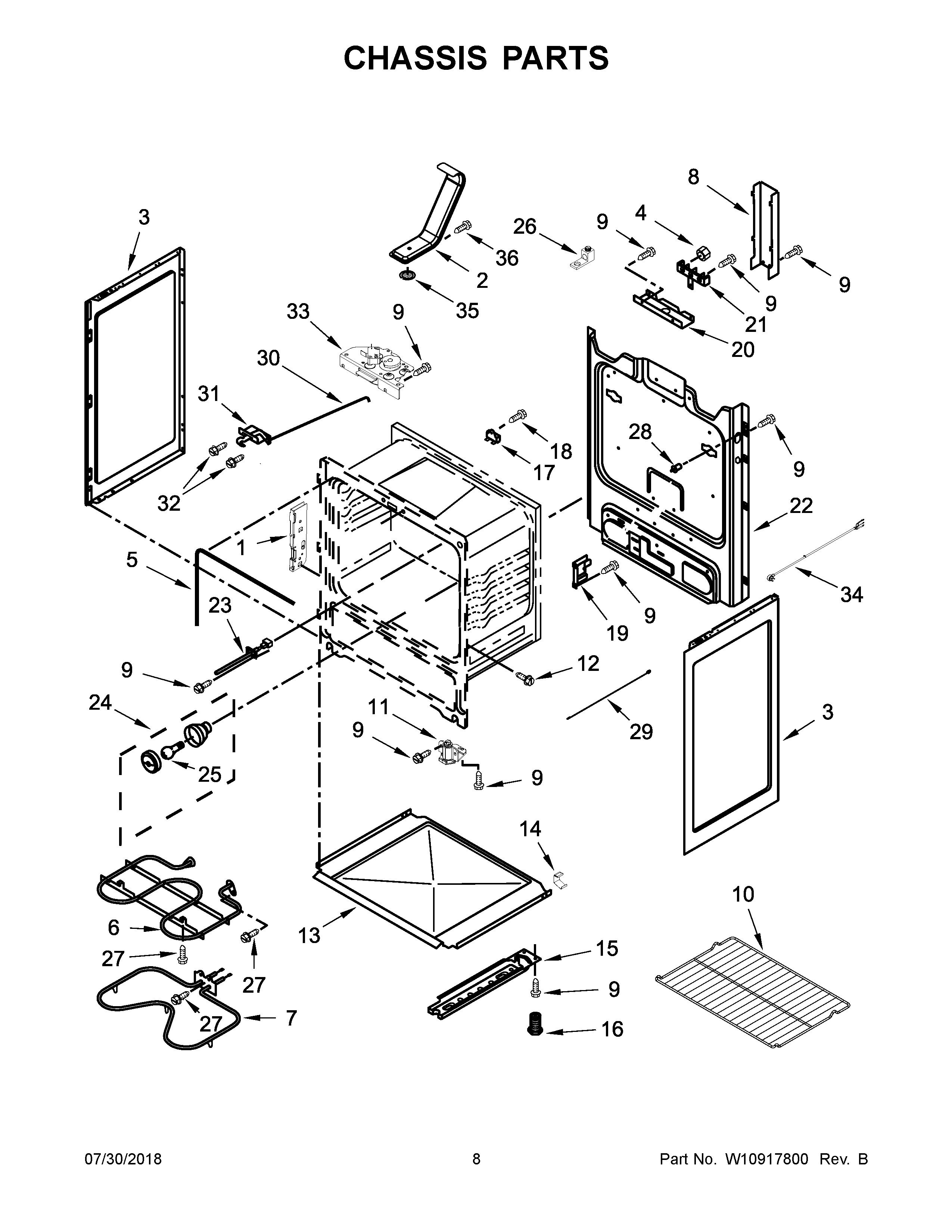

YAER6603SFW0 05 – CHASSIS PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	INSULATION, FLUE
NI	INSULATION, BACK
NI	INSULATION, WRAP
1	RECEIVER, HINGE
2	TUBE, VENT
3A	PANEL, SIDE (WHITE)
3	PANEL, SIDE (BLACK)
4	WP7103P027-60 Whirlpool Nut
5	SEAL, DOOR
6	ELEMENT, BROIL
7	ELEMENT, BAKE
8	COVER, TERMINAL BLOCK
9	SCREW
10	RACK, OVEN
11	ASSEMBLY, FRONT FOOT
12	SCREW
13	RETAINER, INSULATION
14	CLIP, PANEL
15	ASSEMBLY, BASE RAIL (RIGHT)
15A	ASSEMBLY, BASE RAIL (LEFT)
16	FOOT, LEVELING
17	FUSE, THERMAL
18	SCREW
19	CLIP, OVEN SUPPORT
20	BRACKET, SERVICE
21	BLOCK, TERMINAL
22	BACK, MAIN
23	SENSOR, OVEN
24	ASSEMBLY, LIGHT
25	BULB, OVEN LIGHT
26	KIT, BARE WIRE ADAPTER BLOCK
27	SCREW
28	SWITCH, DOOR
29	ROD, DOOR SWITCH
30	ROD, LATCH
31	ASSEMBLY, DOOR LATCH (FRONT)
32	SCREW
33	ASSEMBLY, LATCH (REAR)
34	CORD, POWER
35	SCREEN, VENT
36	MAY W10362924
