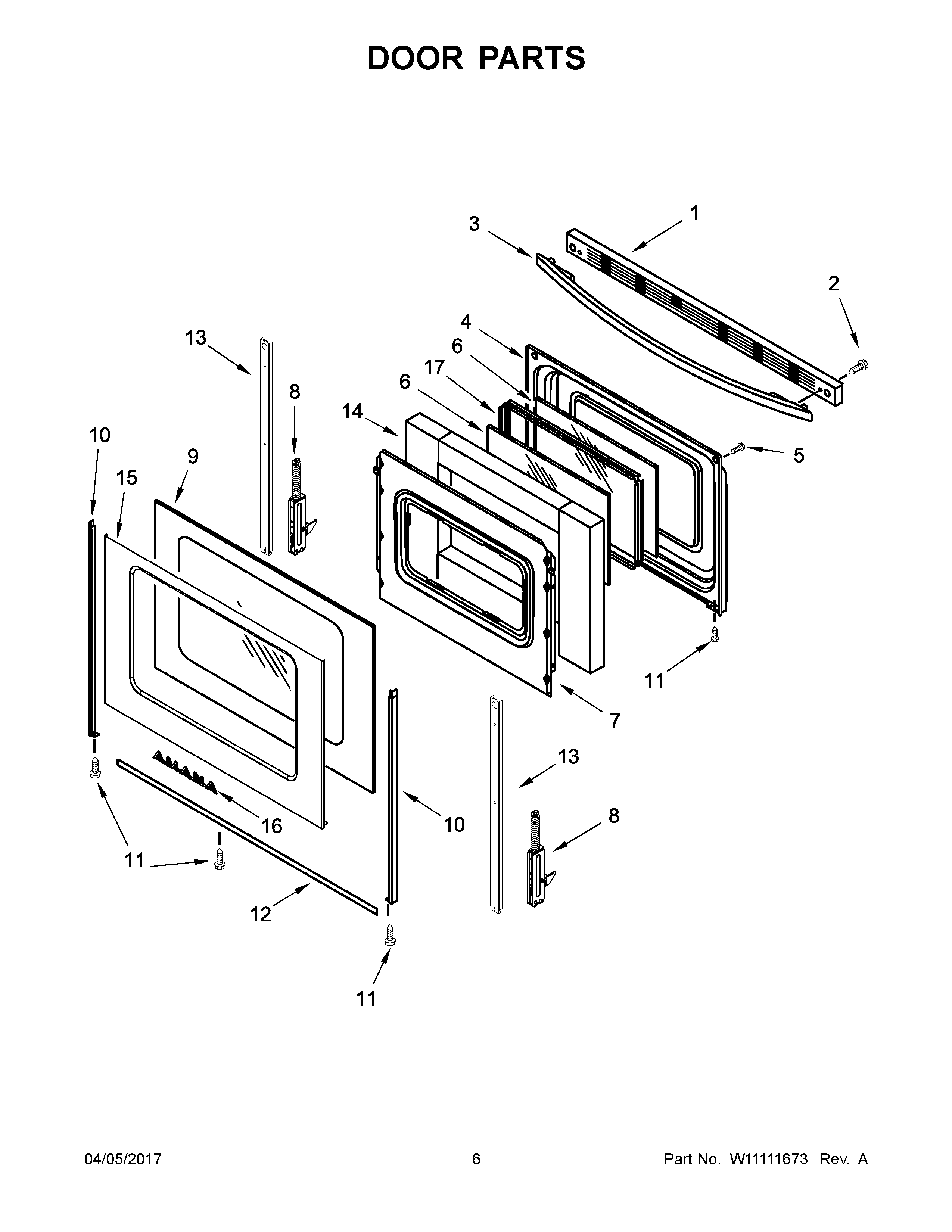

YAER6603SFW1 04 – DOOR PARTS

Products

Position	Product
1A	TRIM, TOP (BLACK)
1	TRIM, TOP (WHITE)
2	SCREW
3A	HANDLE, DOOR (STAINLESS)
3	HANDLE, DOOR (WHITE)
4	LINER, DOOR
5	SCREW
6	GLASS, INNER
7	RETAINER, INSULATION
8	HINGE, ACTIVE (WITH SPRING)
8A	HINGE, DOOR (PASSIVE)
9	GLASS, OUTER (WHITE)
9A	GLASS, OUTER (BLACK)
10B	TRIM, SIDE (WHITE (RIGHT))
10	TRIM, SIDE (WHITE (LEFT))
10C	TRIM, SIDE (BLACK (RIGHT))
10A	TRIM, SIDE (BLACK (LEFT))
11	SCREW
12	TRIM, LOWER (WHITE)
13	STRAP, DOOR
14	INSULATION, DOOR STRIP
15	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
16	BADGE (WHITE)
16A	BADGE (STAINLESS)
17	FRAME, GLASS
