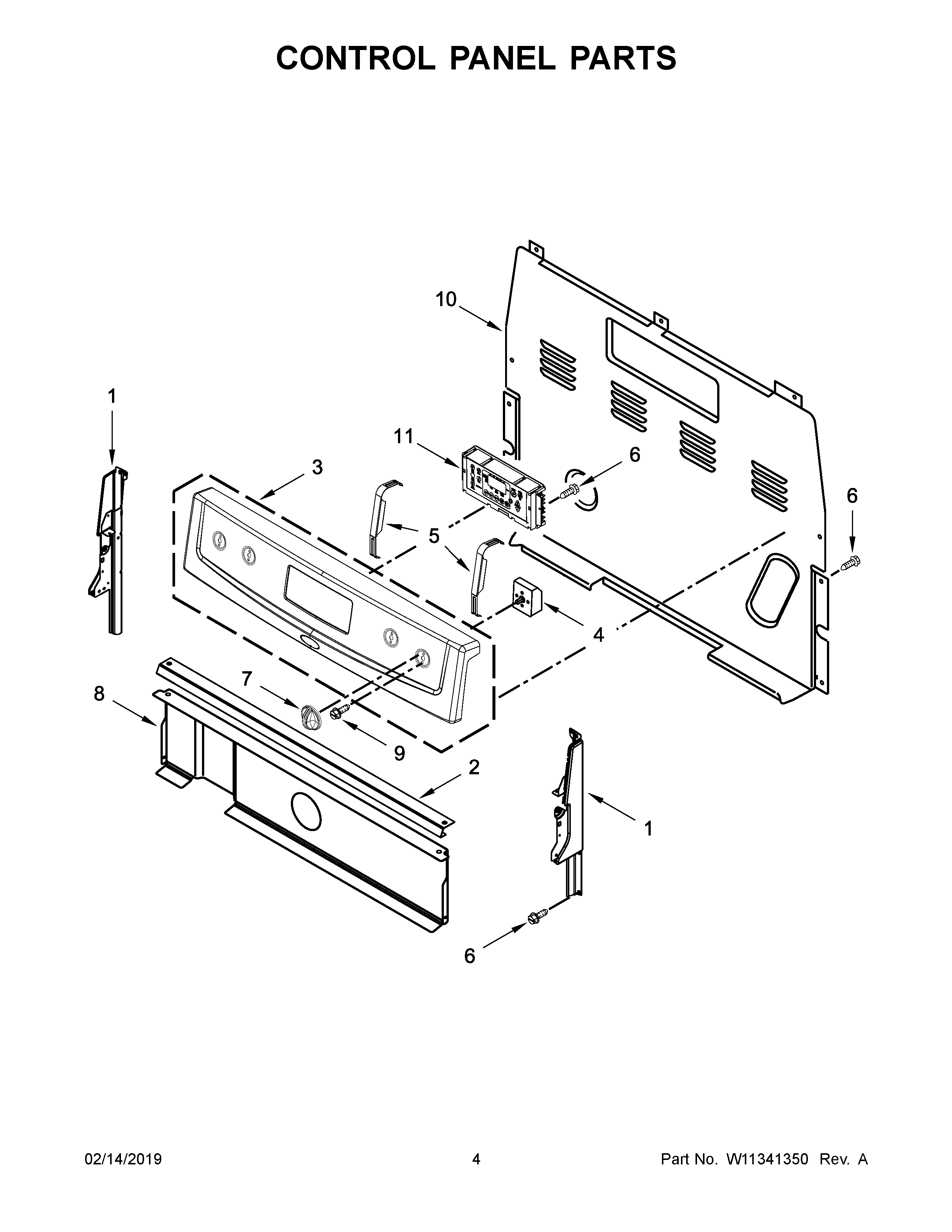

YAER6603SFW2 03 – CONTROL PANEL PARTS

YAER6603SFW2 03 – CONTROL PANEL PARTS

Written by

in

YAER6603SFW2 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AENDCAP (WHITE (RIGHT))
1ENDCAP (WHITE (LEFT))
2BRACKET, CONSOLE MOUNTING
3MAY W11157019
4BSWITCH, INFINITE (DUAL) (LEFT FRONT)
4SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
4ASWITCH, INFINITE (GREEN) (LEFT FRONT AND RIGHT REAR)
5BRACKET, CONTROL
6SCREW
7KNOBS (WHITE)
8SHIELD, HEAT
9SCREW
10COVER, UPPER REAR
11CONTROL, ELECTRONIC (WHITE)
