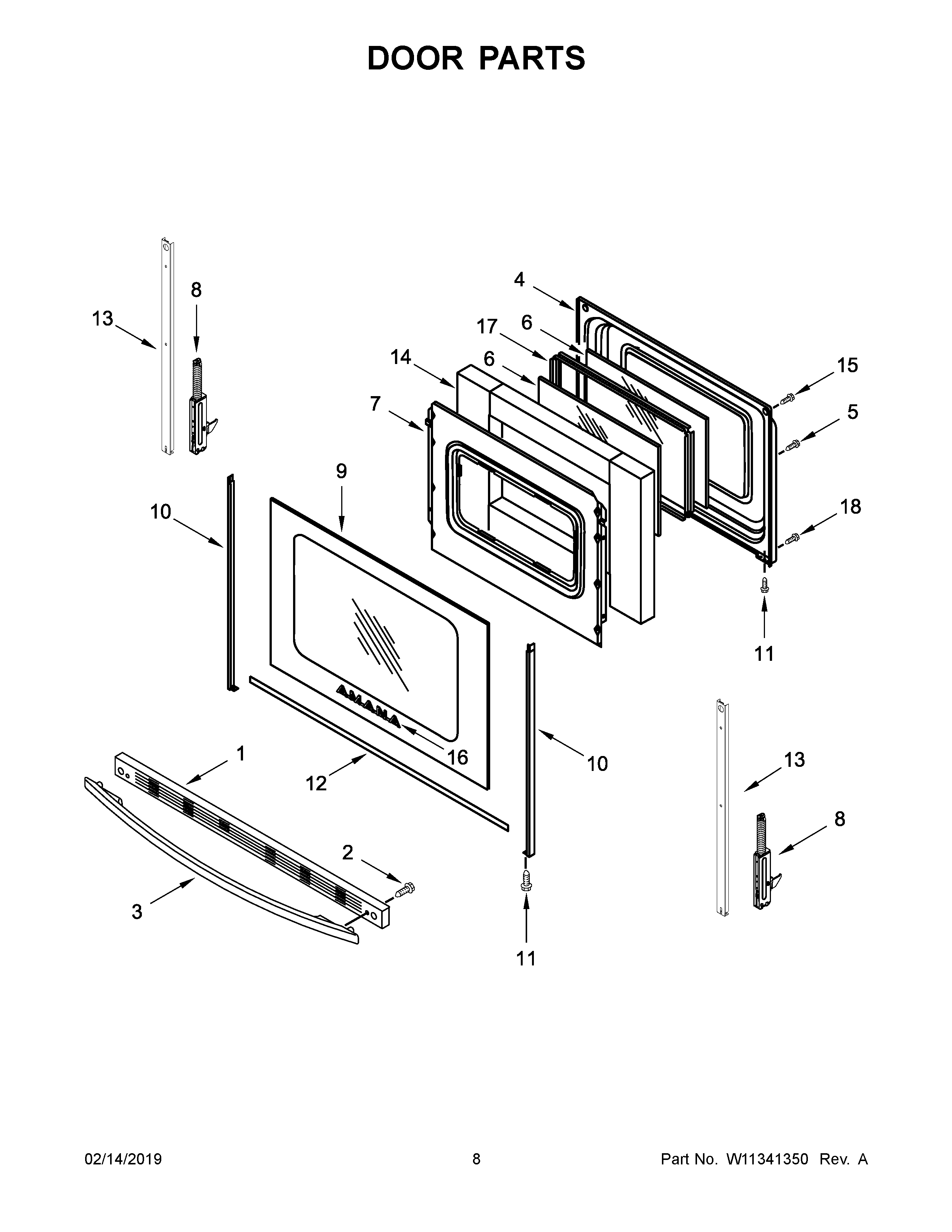

YAER6603SFW2 05 – DOOR PARTS

YAER6603SFW2 05 – DOOR PARTS

Written by

in

YAER6603SFW2 05 – DOOR PARTS

Products

PositionProduct
1TRIM, TOP (WHITE)
2SCREW
3HANDLE, DOOR (WHITE)
4LINER, DOOR
5SCREW
6GLASS, INNER
7RETAINER, INSULATION
8AHINGE, DOOR (PASSIVE)
8HINGE, ACTIVE
9GLASS, OUTER (WHITE)
10ATRIM, SIDE (WHITE (RIGHT))
10TRIM, SIDE (WHITE (LEFT))
11SCREW
12TRIM, LOWER (WHITE)
13STRAP, DOOR
14INSULATION, DOOR STRIP
15SCREW
16BADGE (WHITE)
17FRAME, GLASS
18MAY W10031780
