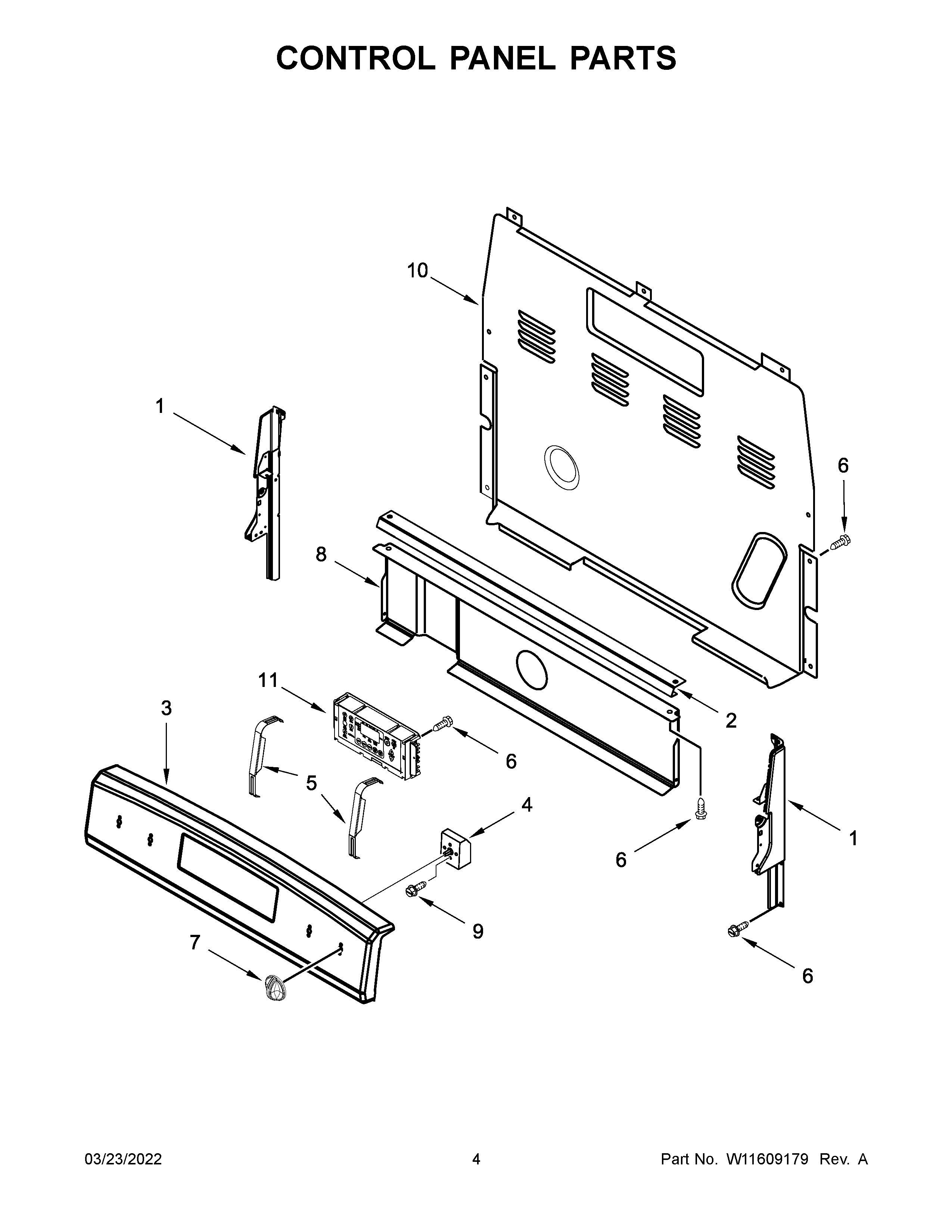

YAER6603SFW5 03 – CONTROL PANEL PARTS

YAER6603SFW5 03 – CONTROL PANEL PARTS

Written by

in

YAER6603SFW5 03 – CONTROL PANEL PARTS

Products

PositionProduct
1AW11219370 Whirlpool Endcap Panel
1W11219365 Whirlpool Panel Endcap
2W10525121 Whirlpool Control Bracket
3W11247314 Whirlpool Control Panel
4WP3149404 Whirlpool Oven Surface Element Switch
4BSWITCH-INF
4ASWITCH-INF
5W11230932 Whirlpool Bracket Mounting
6SCREW
7W11188750 Whirlpool Knob
8W10134247 Whirlpool Heat Shield
9WP3400882 Whirlpool Screw
10WP8272473 Whirlpool Rear Cover
11W11602267 Whirlpool Electronic Control Board + Core
