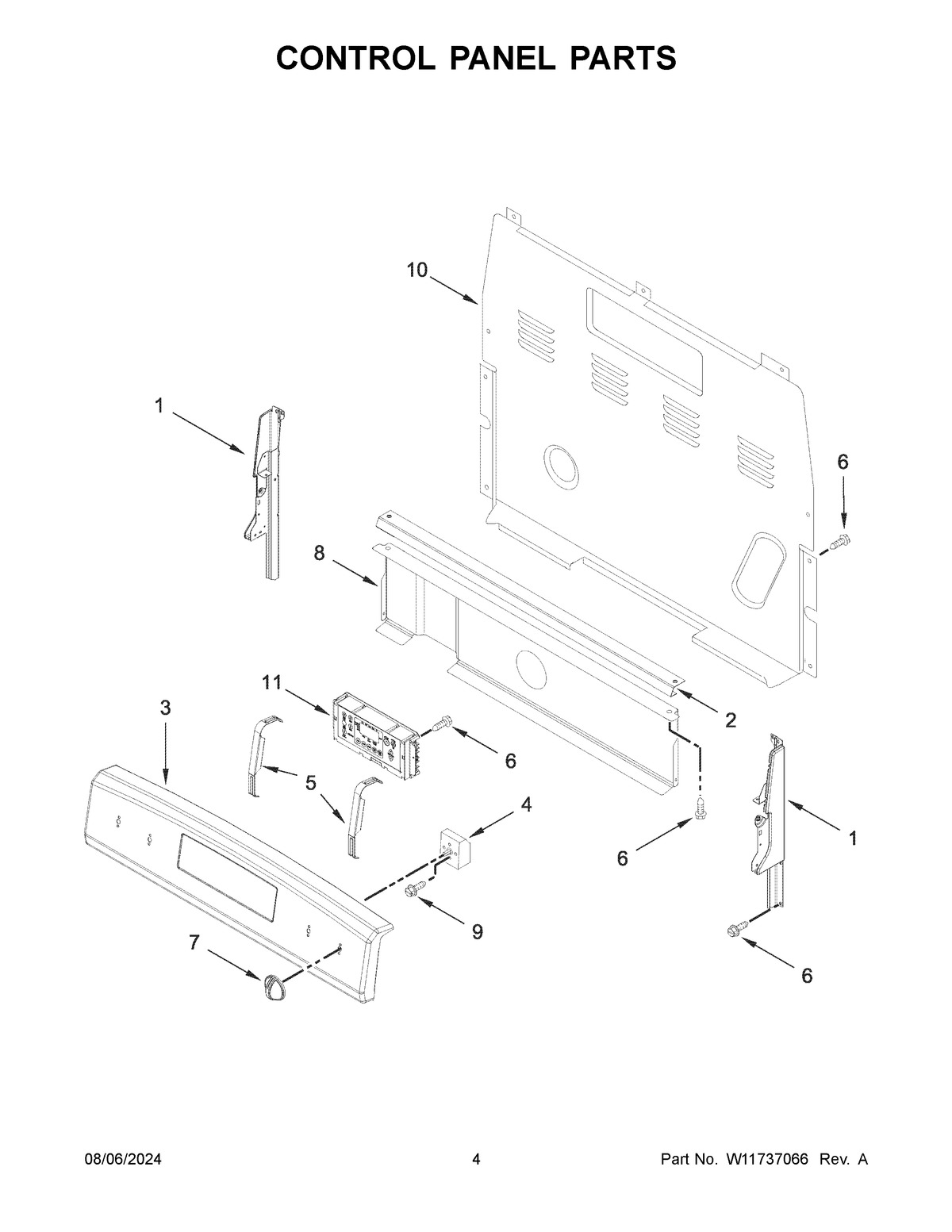

YAER6603SMS1 03 – CONTROL PANEL PARTS

Products

Position	Product
1A	W11219665 Whirlpool Panel Endcap
1	W11219664 Whirlpool Endcap Panel
2	W10525121 Whirlpool Control Bracket
3	W11247666 Whirlpool Control Panel
4	WP3149404 Whirlpool Oven Surface Element Switch
4A	SWITCH-INF
4B	SWITCH-INF
5	W11230932 Whirlpool Bracket Mounting
6	SCREW
7	W11210997 Whirlpool Knob
8	W10134247 Whirlpool Heat Shield
9	WP3400882 Whirlpool Screw
10	WP8272473 Whirlpool Rear Cover
11	W11594204 Whirlpool Electronic Control Board + Core
