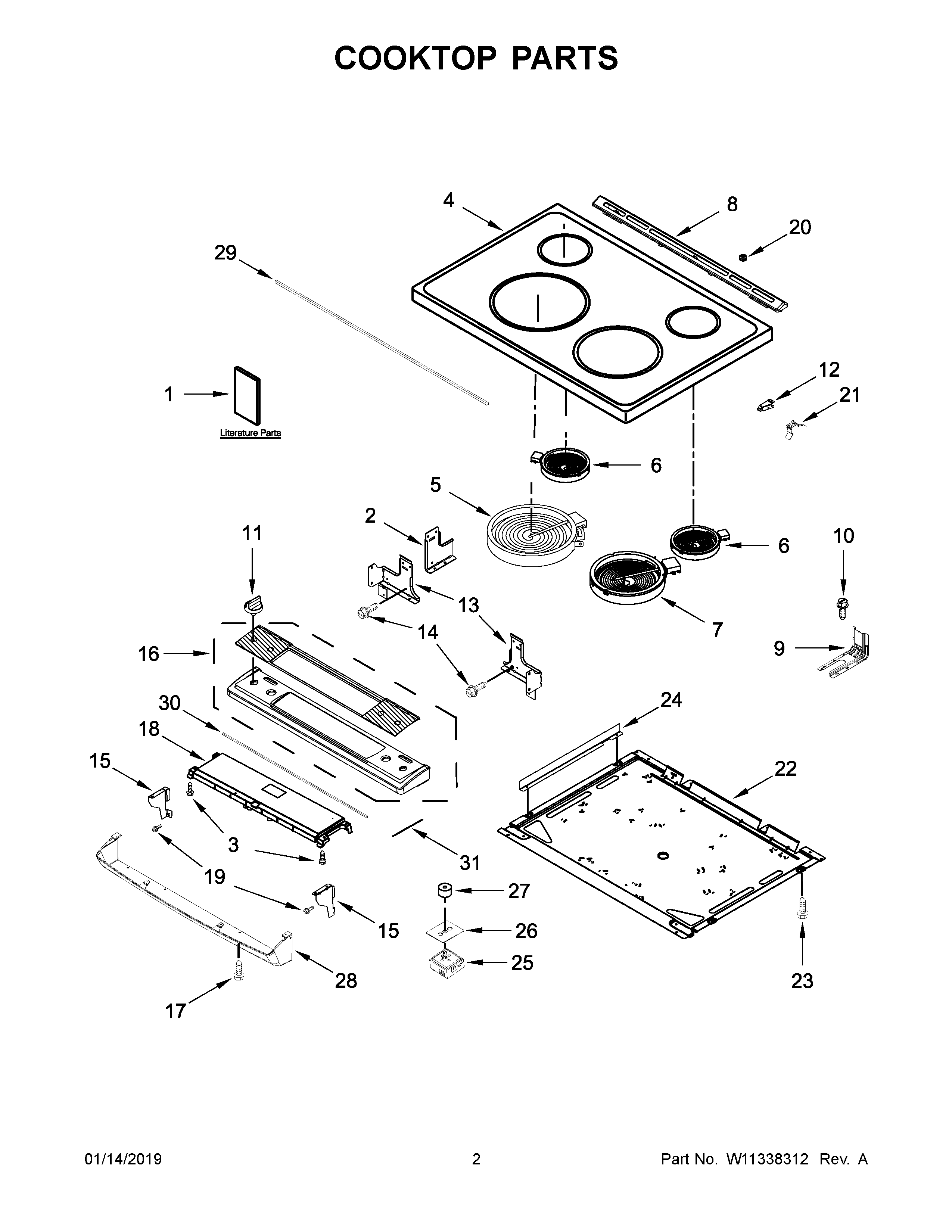

YAES6603SFS2 02 – COOKTOP PARTS

YAES6603SFS2 02 – COOKTOP PARTS

Written by

in

YAES6603SFS2 02 – COOKTOP PARTS

Products

PositionProduct
NIMAY W10664316
NIMAY 7111P017-60
NILINER (NOT A SERVICEABLE PART)
NIHARNESS, COOKTOP
NIHARNESS, MAIN
NIHARNESS, CONSOLE
1BSHEET, TECH
1AMAY W10887090
1CMAY W10842030
1MAY W10842014
2MAY W10814305
3SCREW
4MAY W10825864
5ELEMENT (3000/1400W) (LEFT FRONT)
6ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
8MAY W10636528
9BRACKET, ANTI-TIP
10SCREW, ANTI-TIP KIT
11MAY W10844799
12BRACE, CORNER (LEFT)
12ABRACE, CORNER (RIGHT)
13MAY W10814304
13AMAY W10814303
14SCREW
15BRACKET, CONSOLE (LEFT)
15ABRACKET, CONSOLE (RIGHT)
16MAY W10825358
17MAY W10516115
18CONTROL, ELECTRONIC (LCX) (BLACK)
19SCREW
20MAY W10854253
21SPRING, ELEMENT
22MAY W10536275
23SCREW
24BRACKET, RADIANT
25ASWITCH, INFINITE (DUAL) (LEFT FRONT)
25BMAY W10843843
25SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
26GASKET, INFINITE SWITCH
27MAY W10702912
28MAY W10816943
29GASKET, CONSOLE/COOKTOP
30GASKET, CONSOLE
31GASKET, CONSOLE SHORT
