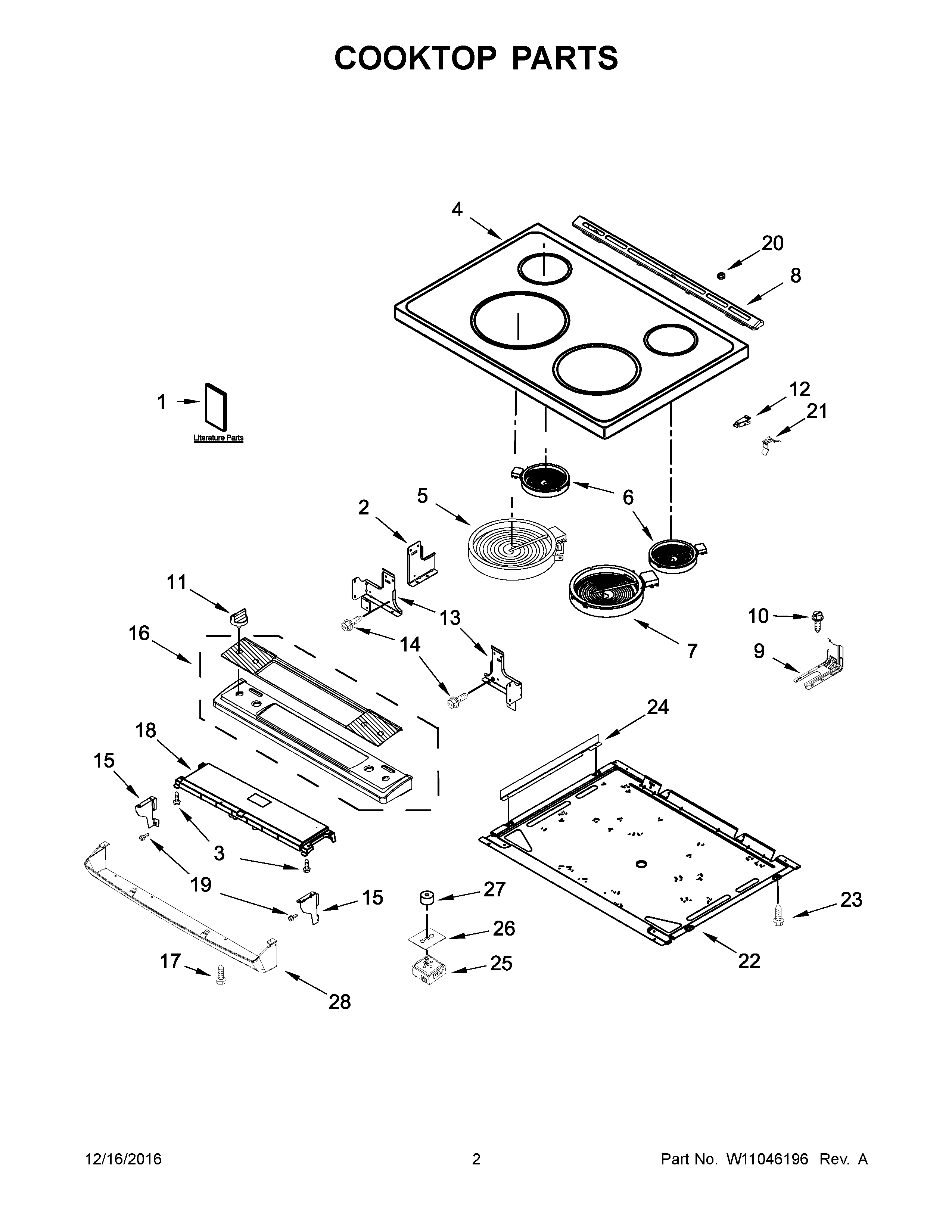

YAES6603SFW0 02 – COOKTOP PARTS

Products

Position	Product
NI	LINER (NOT A SERVICEABLE PART)
NI	MAY W10800464
NI	MAY W10817973
NI	MAY W10800458
NI	MAY W10664316
NI	MAY 7111P017-60
1	MAY W10842014
1A	MAY W10887090
1D	MAY W10842030
1B	SHEET, TECH
1C	TIPS, SAFE COOKING (ENGLISH)
2	MAY W10814305
3	SCREW
4	MAY W10825865
4A	MAY W10825864
5	ELEMENT (3000/1400W) (LEFT FRONT)
6	ELEMENT (1200W) (RIGHT FRONT AND LEFT REAR)
7	ELEMENT (1800W) (LEFT FRONT AND RIGHT REAR)
8	MAY W10636527
8A	MAY W10636528
9	BRACKET, ANTI-TIP
10	SCREW, ANTI-TIP KIT
11A	MAY W10844799
11	MAY W10844797
12	BRACE, CORNER (LEFT)
12A	BRACE, CORNER (RIGHT)
13	MAY W10814304
13A	MAY W10814303
14	SCREW
15A	BRACKET, CONSOLE (RIGHT)
15	BRACKET, CONSOLE (LEFT)
16	MAY W10825349
16A	MAY W10825358
17	MAY W10516115
18A	MAY W10806866
18	MAY W10806862
19	SCREW
20	MAY W10854253
21	SPRING, ELEMENT
22	MAY W10536275
23	SCREW
24	MAY W10613286
25B	MAY W10843843
25A	SWITCH, INFINITE (DUAL) (LEFT FRONT)
25	SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR)
26	GASKET, INFINITE SWITCH
27	MAY W10702912
28	MAY W10816942
28A	MAY W10816943
