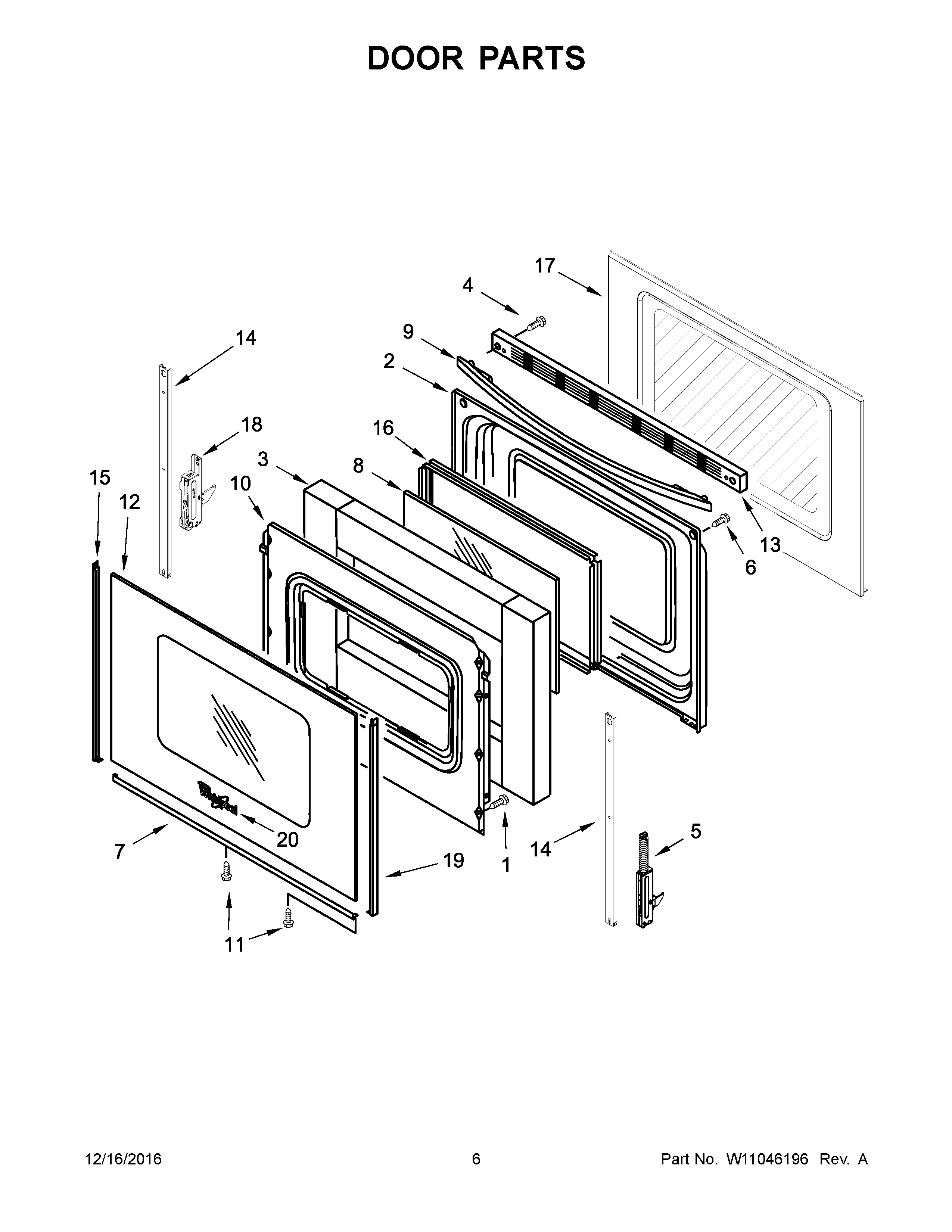

YAES6603SFW0 04 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER, DOOR
3	INSULATION, DOOR STRIP
4	SCREW
5	HINGE, DOOR (ACTIVE)
6	SCREW
7	TRIM, LOWER (WHITE)
8	GLASS, INNER
9A	HANDLE, DOOR (STAINLESS)
9	HANDLE, DOOR (WHITE)
10	RETAINER, INSULATION
11	MAY W10362924
12A	GLASS, OUTER (WHITE)
12	GLASS, OUTER (BLACK)
13A	TRIM, TOP (BLACK)
13	TRIM, TOP (WHITE)
14	STRAP, DOOR
15	TRIM, SIDE (WHITE (LEFT))
15A	TRIM, SIDE (BLACK (LEFT))
16	FRAME, GLASS
17	GLASS ASSEMBLY, OUTER DOOR (STAINLESS)
18	MAY W10440013
19	TRIM, SIDE (WHITE (RIGHT))
19A	TRIM, SIDE (BLACK (RIGHT))
20	BADGE (WHITE)
20A	BADGE (STAINLESS)
