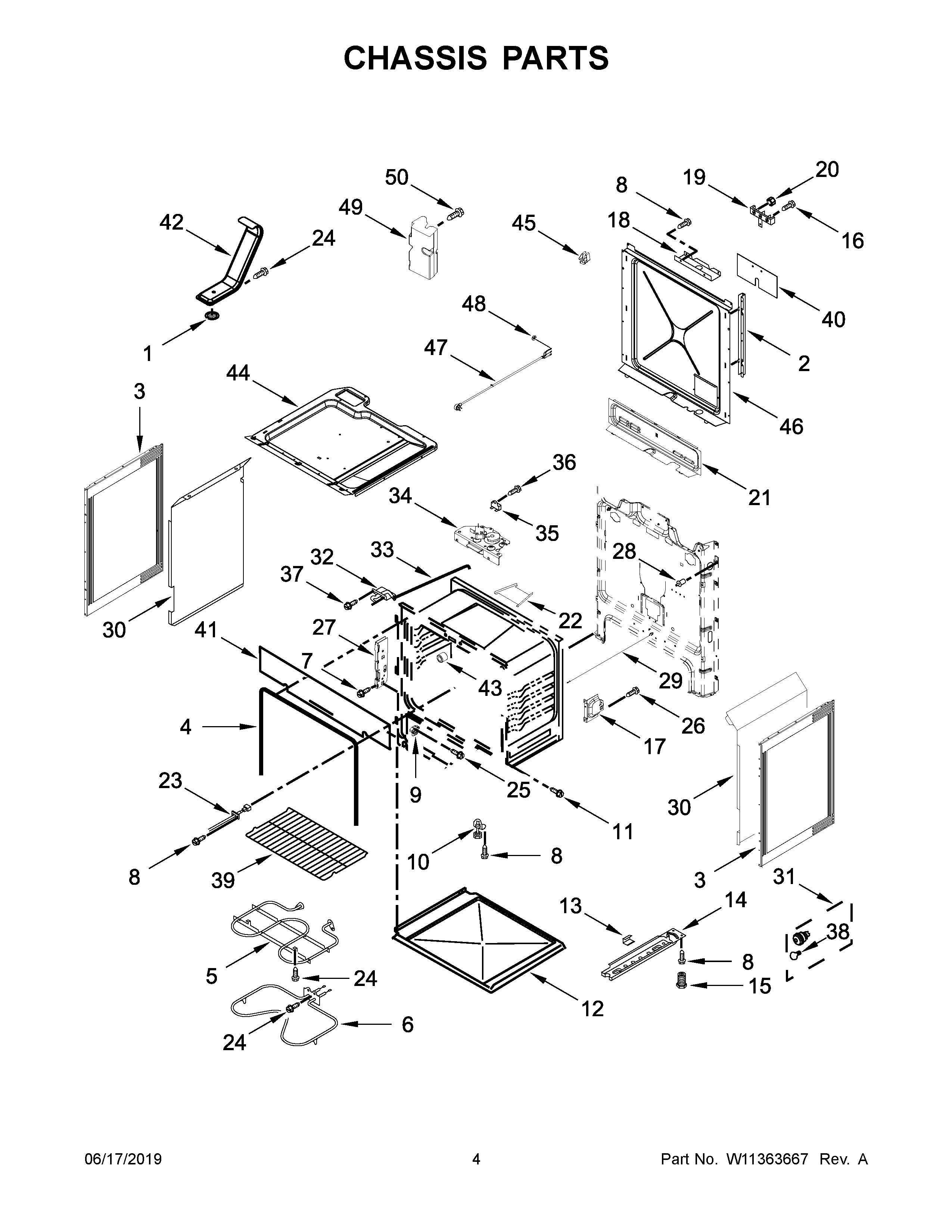

YAES6603SFW2 03 – CHASSIS PARTS

Products

Position	Product
NI	MAY W10830993
NI	MAY W10815385
NI	LINER (NOT A SERVICEABLE PART)
1	SCREEN, VENT
2	MAY W10162241
3	PANEL, SIDE (WHITE)
4	SEAL, DOOR
5	MAY W10583047
6	MAY W10535148
7	MAY W10031780
8	SCREW
9	GLIDE, DRAWER FRONT
10	ASSEMBLY, FRONT FOOT
11	SCREW
12	MAY W10312471
13	CLIP, PANEL
14	ASSEMBLY, BASE RAIL (LEFT)
14A	ASSEMBLY, BASE RAIL (RIGHT)
15	FOOT, LEVELING
16	SCREW
17	BRACKET, OVEN SUPPORT
18	BRACKET, SERVICE
19	BLOCK, TERMINAL
20	NUT
21	MAY W10162248
22	MAY W10853401
23	MAY W10586204
24	MAY W10362924
25	MAY 3400080
26	SCREW
27	RECEIVER, HINGE
28	SWITCH, DOOR
29	ROD, DOOR SWITCH
30A	MAY 9761448
30	MAY 9761449
31	ASSEMBLY, LIGHT
32	ASSEMBLY, DOOR LATCH (FRONT)
33	ROD, PUSH LATCH
34	ASSEMBLY, LATCH (REAR)
35	FUSE, THERMAL
36	SCREW
37	SCREW
38	RANGE ONLY 40W 120V APPL BULB
39	RACK, OVEN
40	MAY W10655441
41	CHASSIS, UPPER INSULATION
42	ASSEMBLY, FLUE
43	SPACER, DOOR
44	MAY W10814301
45	MAY W10866583
46	MAY W10289172
47	CORD, POWER
48	WP7103P027-60 Whirlpool Nut
49	COUNTERWEIGHT
50	SCREW
