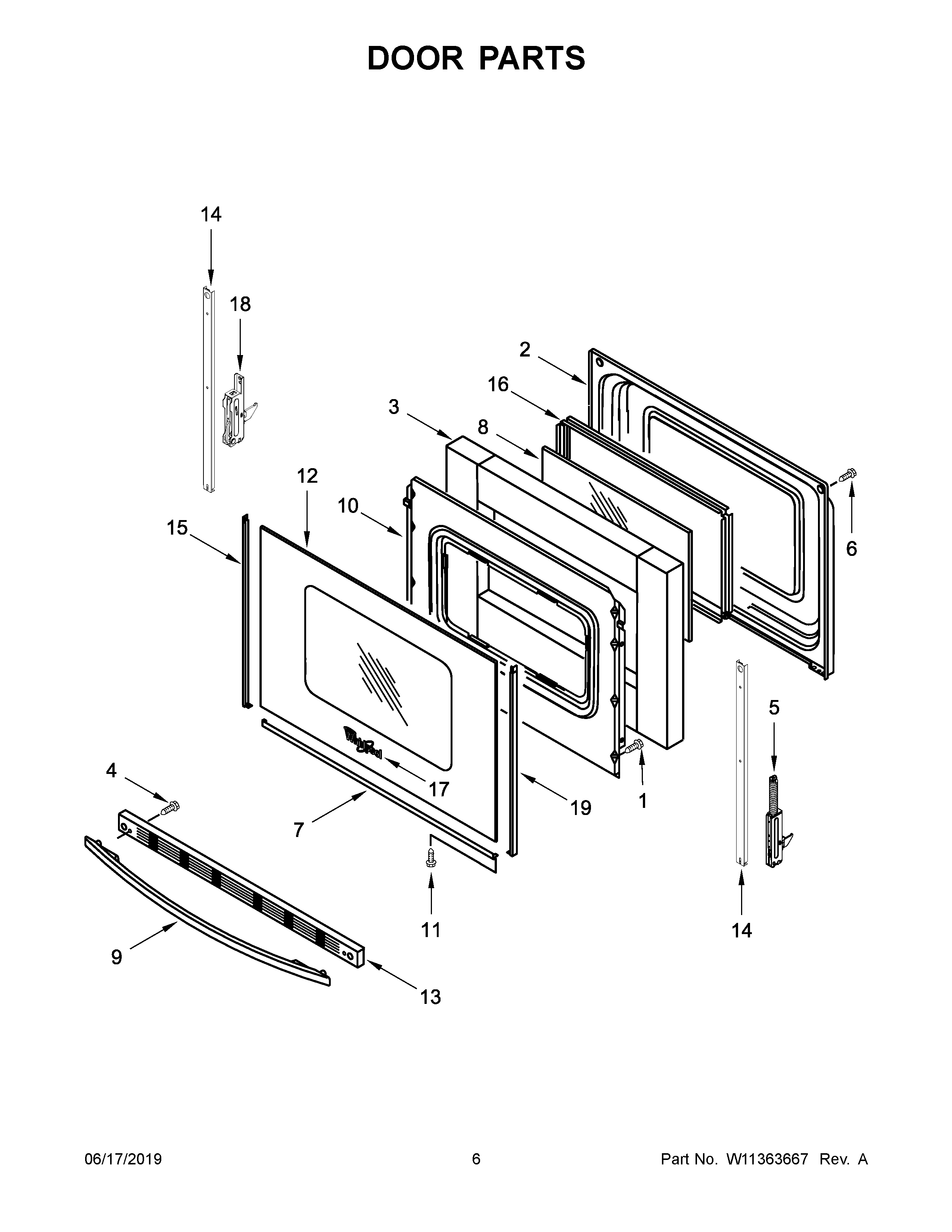

YAES6603SFW2 04 – DOOR PARTS

YAES6603SFW2 04 – DOOR PARTS

Written by

in

YAES6603SFW2 04 – DOOR PARTS

Products

Position	Product
1	SCREW
2	LINER, DOOR
3	INSULATION, DOOR STRIP
4	SCREW
5	HINGE, DOOR (ACTIVE)
6	SCREW
7	TRIM, LOWER (WHITE)
8	GLASS, INNER
9	HANDLE, DOOR (WHITE)
10	RETAINER, INSULATION
11	MAY W10362924
12	GLASS, OUTER (WHITE)
13	TRIM, TOP (WHITE)
14	STRAP, DOOR
15	TRIM, SIDE (WHITE (LEFT))
16	FRAME, GLASS
17	BADGE (WHITE)
18	MAY W10440013
19	TRIM, SIDE (WHITE (RIGHT))
