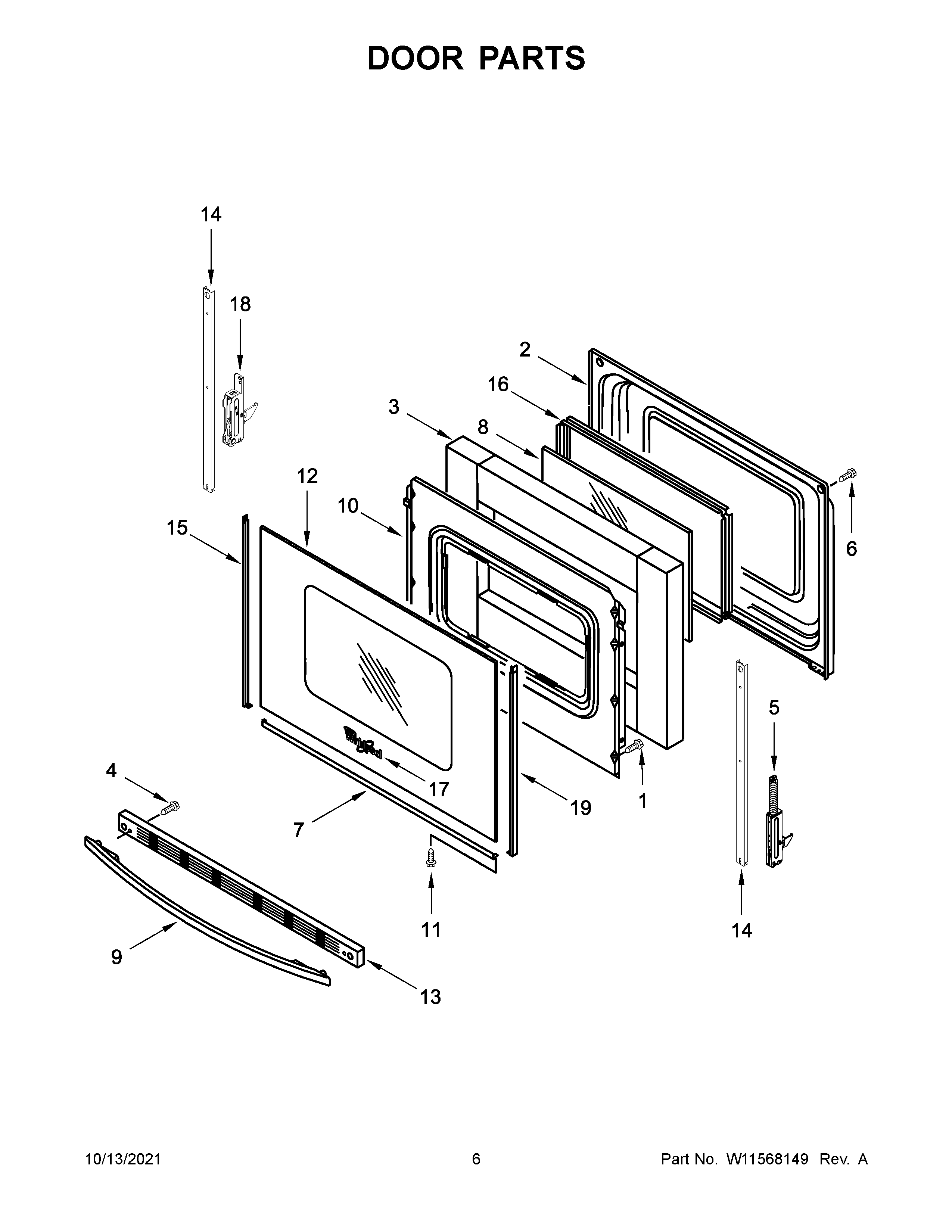

YAES6603SFW3 04 – DOOR PARTS

Products

Position	Product
1	WPW10031790 Whirlpool Screw
2	WP9761344 Whirlpool Door Liner
3	WPW10278991 Whirlpool Insulation
4	W10817436 Whirlpool Screw
5	WPW10388635 Whirlpool Door Hinge
6	WPW10200660 Whirlpool Range Oven Door Handle Screw
7	WP8523175 Whirlpool Door Trim Assembly
8	WP8053948 Whirlpool Door Glass
9	W10817434 Whirlpool Door Handle
10	W11539580 Whirlpool Retainer
11	SCREW
12	W10904906 Whirlpool Door Glass
13	W10817433 Whirlpool Vent Trim
14	W11502236 Whirlpool Door Trim
15	WP8523172 Whirlpool Left Door Trim
16	WPW10316950 Whirlpool Window Frame
17	W10849465 Whirlpool Nameplate
18	WPW10440013 Whirlpool Door Hinge
19	WP8523166 Whirlpool Door Trim
