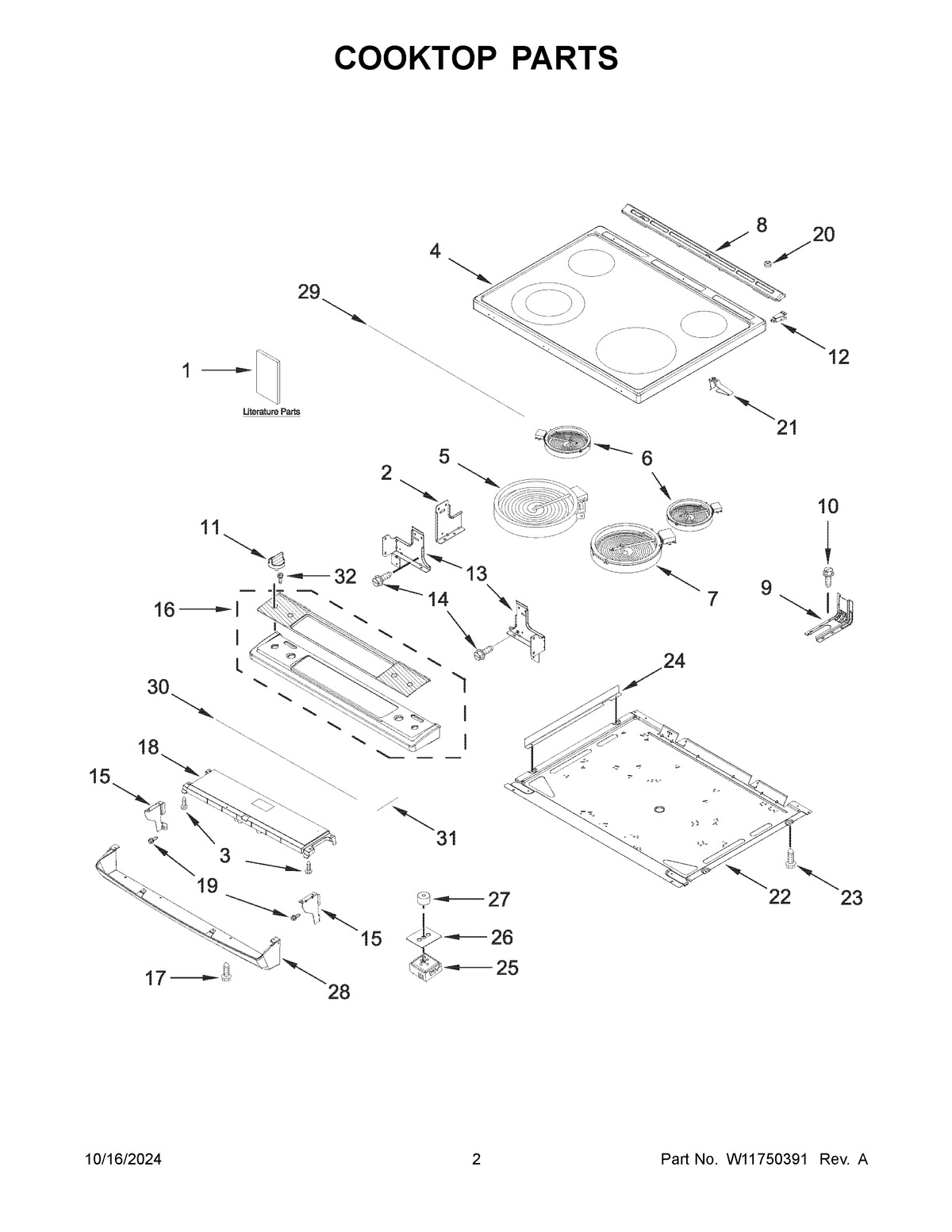

YAES6603SFW6 02 – COOKTOP PARTS

Products

Position	Product
NI	CLAMP, WIRE
NI	HARNESS, COOKTOP
NI	HARNESS, MAIN
NI	FOLLOWING PARTS NOT ILLUSTRATED
NI	16515 Whirlpool Clip
NI	W10664316 Whirlpool Clip
NI	HARNESS, CONSOLE
1	QUICK START GUIDE
1A	OWNERS MANUAL
1B	TECH SHEET
2	W10814305 Whirlpool Bracket Support
3	W11245710 Whirlpool Refrigerator Screw
4	COOKTOP (WHITE)
5	W11517959 Whirlpool Electric Range Radiant Surface Element
6	ELMNT-SURF
7	WP8273993 Whirlpool Surface Element
8	W10636527 Whirlpool Vent Trim
9	W11502257 Whirlpool Anchor Tip
10	SCREW, ANTI-TIP KIT
11	KNOB (WHITE)
12A	W10162252 Whirlpool Bracket Mounting
12	W10162253 Whirlpool Mounting Bracket
13A	W10814304 Whirlpool Support Bracket
13	SUPPORT, COOKTOP (LEFT)
14	WP3196557 Whirlpool Screw
15	W10547960 Whirlpool Endcap Panel
15A	W10547961 Whirlpool Endcap Panel
16	CONSOLE WHITE
17	W10516115 Whirlpool Screw
18	W11594269-includeCORE Whirlpool W11594269 Refrigerator Electronic Control Board
19	SCREW
20	W11690600 Whirlpool Bumper
21	W11663556 Whirlpool Spring Assembly
22	W10536275 Whirlpool Pan
23	3196172 Whirlpool Oven Screw
24	BRACKET, RADIANT
25A	SWITCH-INF
25	W10911303 Whirlpool Infinite Switch
25B	W11661906 Whirlpool Range Infinite Switch
26	GASKET, SWITCH
27	W10702912 Whirlpool Switch Gasket
28	W10894127 Whirlpool Control Panel
29	W10802441 Whirlpool Gasket
30	W10802457 Whirlpool Gasket
31	W11744482 Whirlpool Gasket Assembly
32	W10674068 Whirlpool Screw
