YAMV1160VAB3 03 – INTERIOR AND VENTILATION PARTS – Aparts

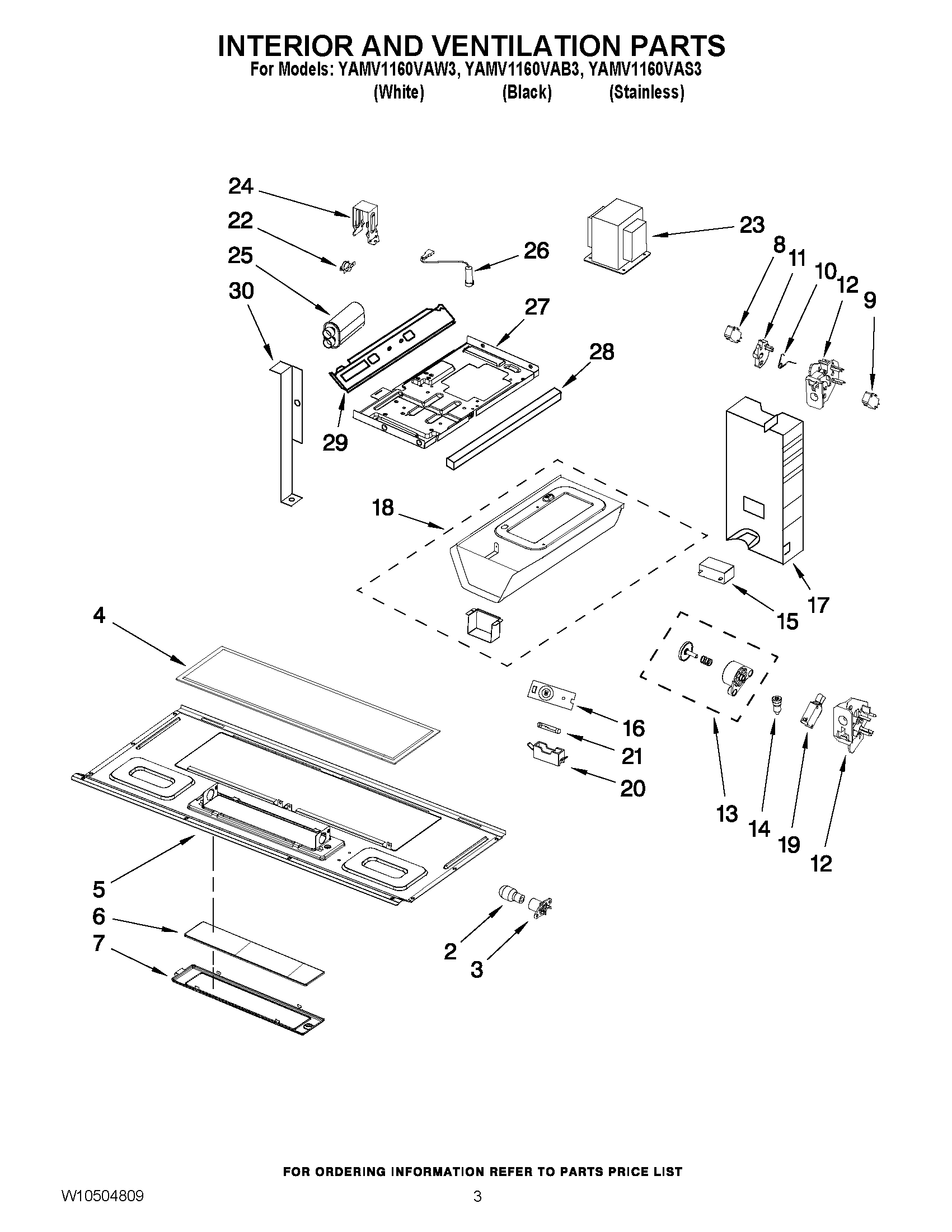

YAMV1160VAB3 03 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
2	MAY 8206232
3	MAY W10210871
4	MAY W10208631
5	MAY W10245196
6	MAY W10210875
7	MAY W10210873
8	SWITCH, MICRO V15T16-CZ200
9	SWITCH, MICRO V15T16-CC200
10	MAY W10156812
11	MAY W10156811
12	MAY 8206419
12	MAY W10156813
13	MAY W10197758
14	SCREW
15	Capacitor, 125 V
16	Thermistor (PCBA)
17	MAY W10364230
18	MAY W10163423
19	SWITCH, MICRO V15T16-CP200
20	MAY W10117908
21	MAY W10138793
22	MAY W10269232
23	MAY W10269455
24	MAY W10156817
25	MAY 8206562
26	MAY W10163432
27	MAY W10269456
28	MAY W10313276
29	MAY W10315759
30	BRACKET, TOP
