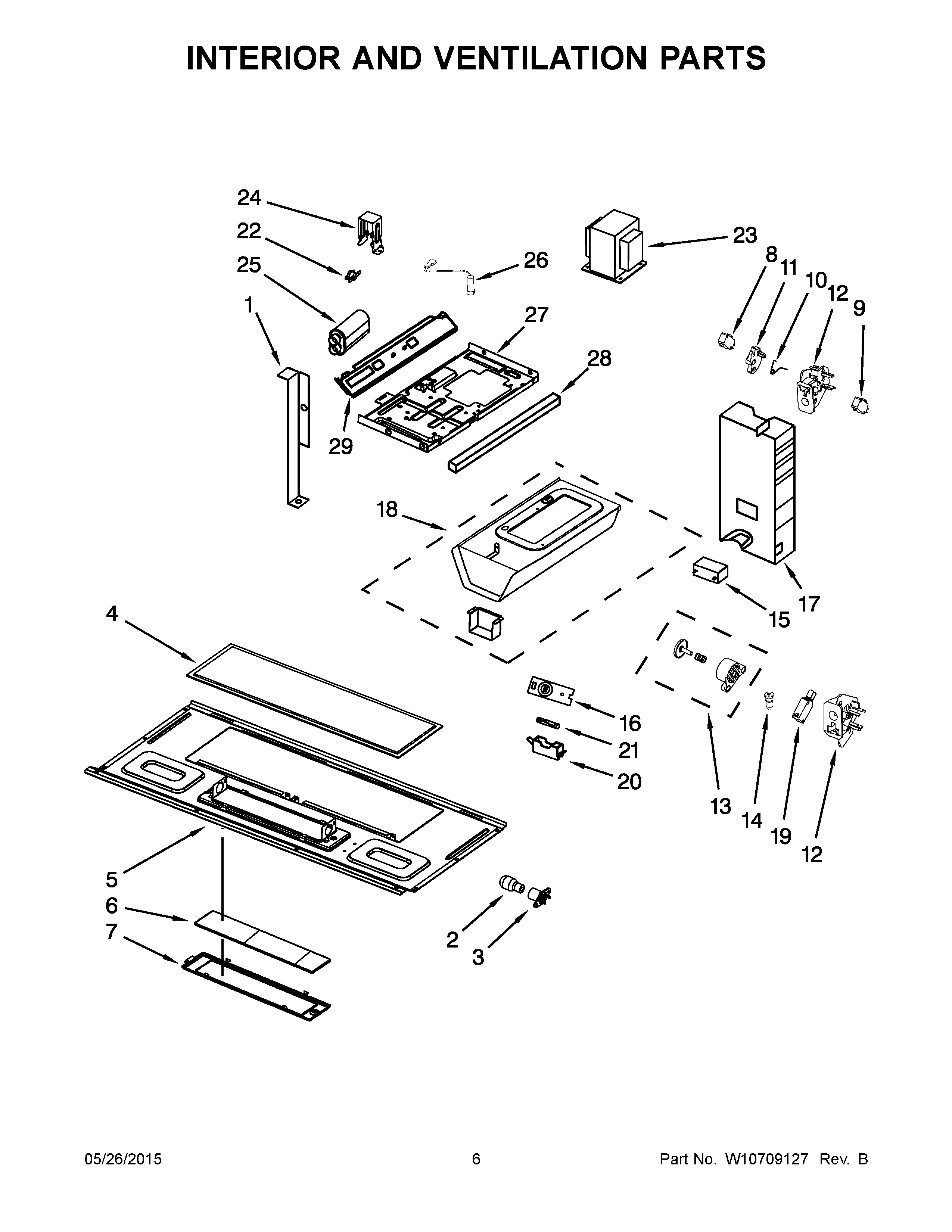

YAMV1160VAB6 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1BRACKET, TOP
2MAY 8206232
3MAY W10210871
4MAY W10208631
5MAY W10245196
6MAY W10210875
7MAY W10210873
8SWITCH, MICRO V15T16-CZ200
9SWITCH, MICRO V15T16-CC200
10MAY W10156812
11MAY W10156811
12MAY 8206419
12AMAY W10156813
13MAY W10197758
14SCREW
15Capacitor, 125 V
16Thermistor (PCBA)
17AIR GUIDE, LOWER
18MAY W10163423
19SWITCH, MICRO V15T16-CP200
20MAY W10117908
21MAY W10138793
22MAY W10269232
23MAY W10681123
24BRACKET, CAPACITOR
25MAY 8206562
26DIODE, HIGH VOLTAGE
27MAY W10269456
28MAY W10313276
29MAY W10315759
