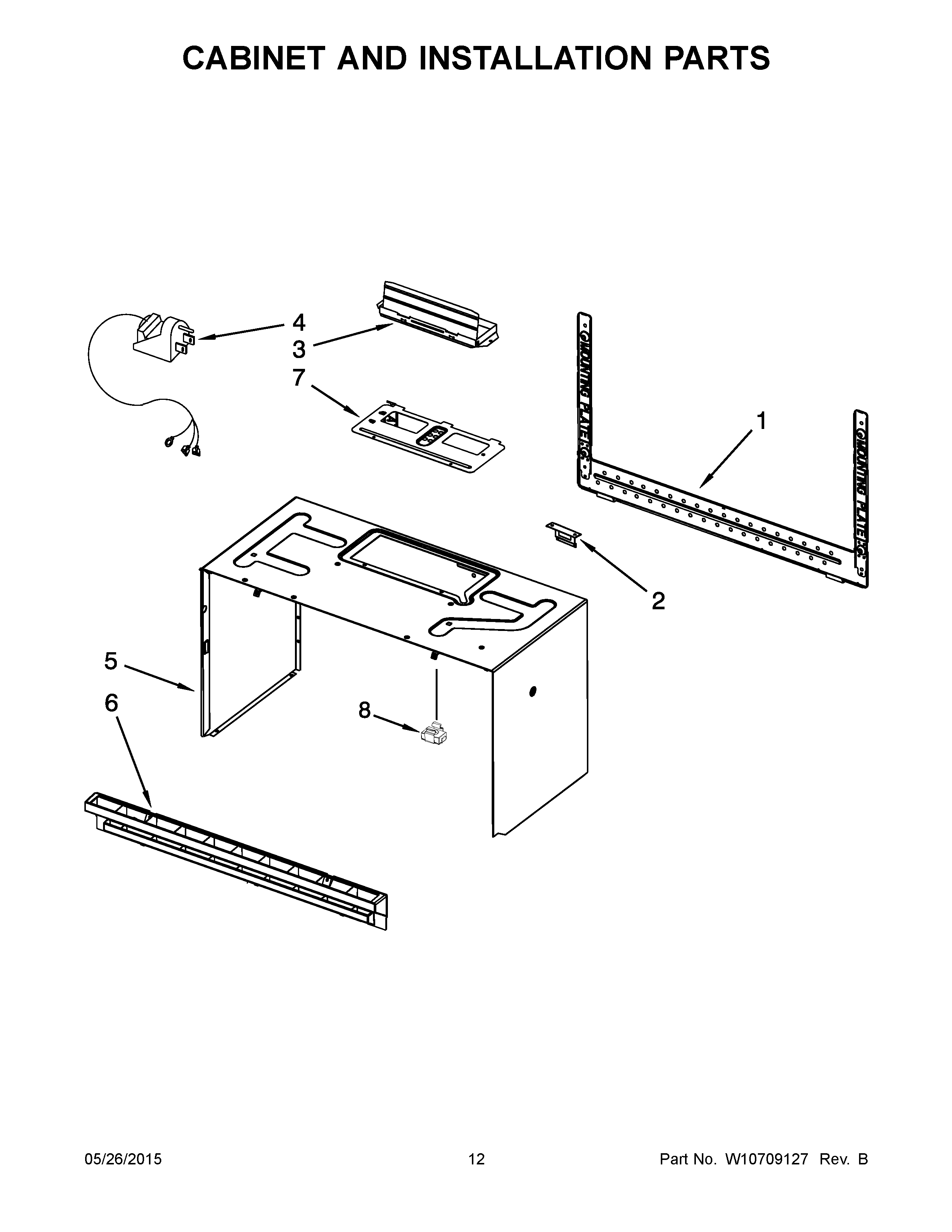

YAMV1160VAB6 07 – CABINET AND INSTALLATION PARTS

YAMV1160VAB6 07 – CABINET AND INSTALLATION PARTS

Written by

in

YAMV1160VAB6 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
NIMISCELLANEOUS PARTS, HARNESS, NTC SENSOR FLAT WIRE
NIMAY W10138802
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIInstallation, Hardware
1PLATE, MOUNTING
2MAY 8206385
3MAY 8206442
4CORD, POWER
5MAY W10462003
5AMAY W10462001
6AMAY W10318625
6BMAY W10212405
6MAY W10212400
7MAY W10210832
8ASSEMBLY, MOUNTING NUT
