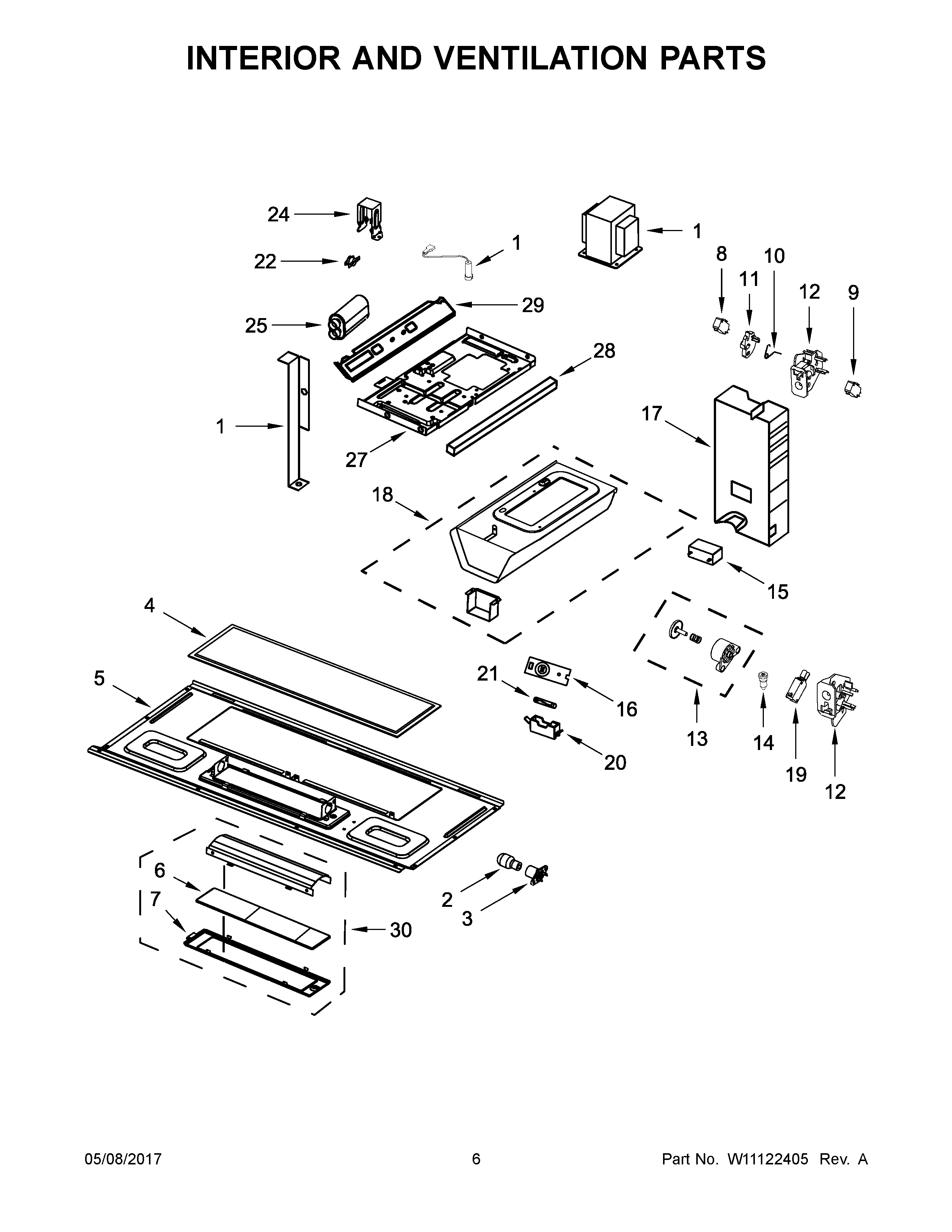

YAMV1160VAB7 04 – INTERIOR AND VENTILATION PARTSadmin2025-04-26T08:49:11+00:00YAMV1160VAB7 04 – INTERIOR AND VENTILATION PARTS
Products
| Position | Product |
|---|
| 1 | BRACKET, TOP |
| 2 | MAY 8206232 |
| 3 | MAY W10210871 |
| 4 | MAY W10208631 |
| 5 | MAY W10245196 |
| 6 | MAY W10210875 |
| 7 | MAY W10210873 |
| 8 | SWITCH, MICRO V15T16-CZ200 |
| 9 | SWITCH, MICRO V15T16-CC200 |
| 10 | MAY W10156812 |
| 11 | MAY W10156811 |
| 12A | MAY W10156813 |
| 12 | MAY 8206419 |
| 13 | MAY W10197758 |
| 14 | SCREW |
| 15 | Capacitor, 125 V |
| 16 | Thermistor (PCBA) |
| 17 | AIR GUIDE, LOWER |
| 18 | MAY W10163423 |
| 19 | SWITCH, MICRO V15T16-CP200 |
| 20 | MAY W10117908 |
| 21 | MAY W10138793 |
| 22 | MAY W10269232 |
| 23 | TRANSFORMER, HIGH VOLTAGE |
| 24 | BRACKET, CAPACITOR |
| 25 | MAY 8206562 |
| 26 | DIODE, HIGH VOLTAGE |
| 27 | MAY W10269456 |
| 28 | MAY W10313276 |
| 29 | MAY W10315759 |
| 30 | ASSEMBLY, LAMP GLASS AND HOLDER |
