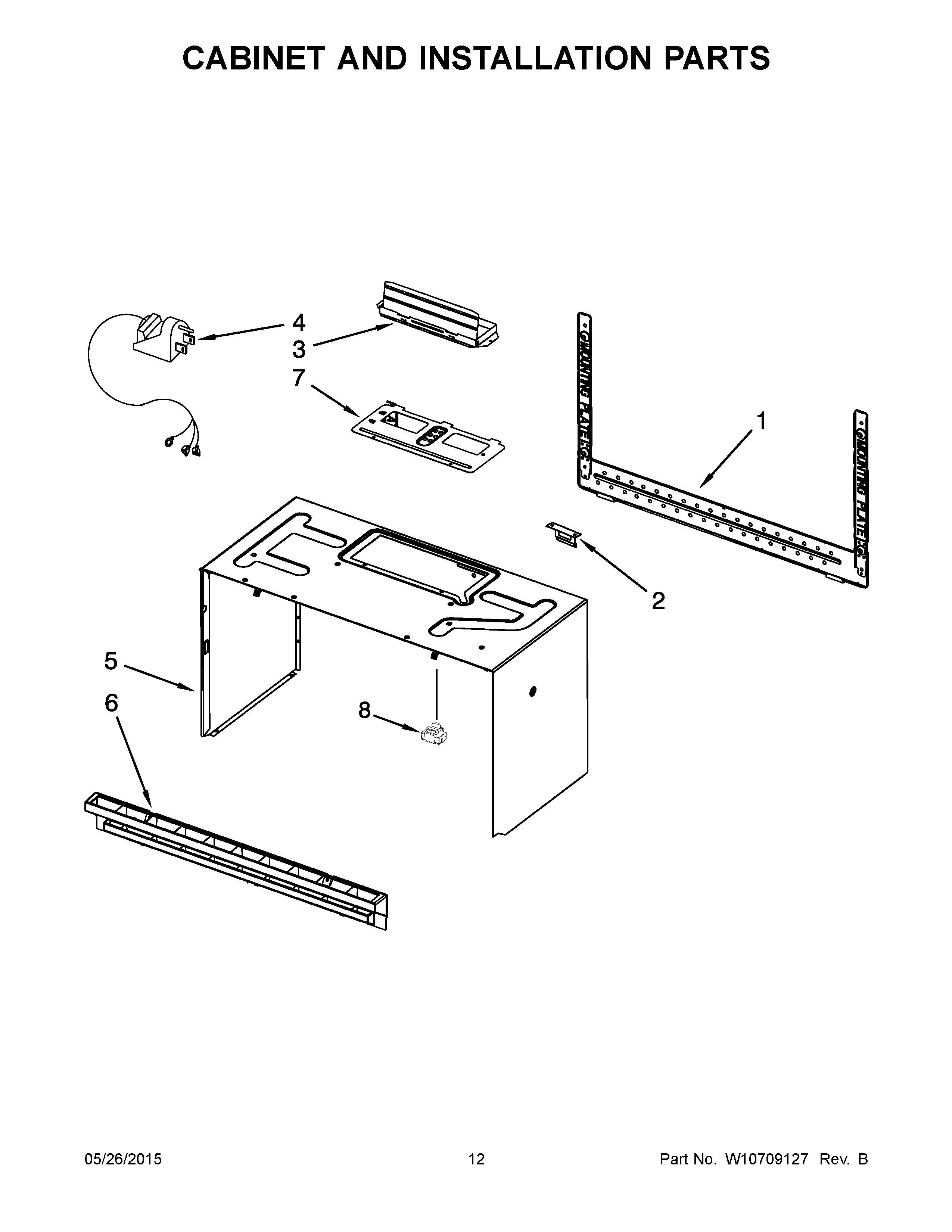

YAMV1160VAW6 07 – CABINET AND INSTALLATION PARTSadmin2025-04-26T08:48:51+00:00YAMV1160VAW6 07 – CABINET AND INSTALLATION PARTS
Products
| Position | Product |
|---|
| NI | MISCELLANEOUS PARTS, HARNESS, MAIN |
| NI | MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER |
| NI | MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR |
| NI | MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE |
| NI | MISCELLANEOUS PARTS, HARNESS, NTC SENSOR FLAT WIRE |
| NI | MAY W10138802 |
| NI | MISCELLANEOUS PARTS, TEMPLATE, UPPER |
| NI | Installation, Hardware |
| 1 | PLATE, MOUNTING |
| 2 | MAY 8206385 |
| 3 | MAY 8206442 |
| 4 | CORD, POWER |
| 5 | MAY W10462003 |
| 5A | MAY W10462001 |
| 6A | MAY W10318625 |
| 6B | MAY W10212405 |
| 6 | MAY W10212400 |
| 7 | MAY W10210832 |
| 8 | ASSEMBLY, MOUNTING NUT |
