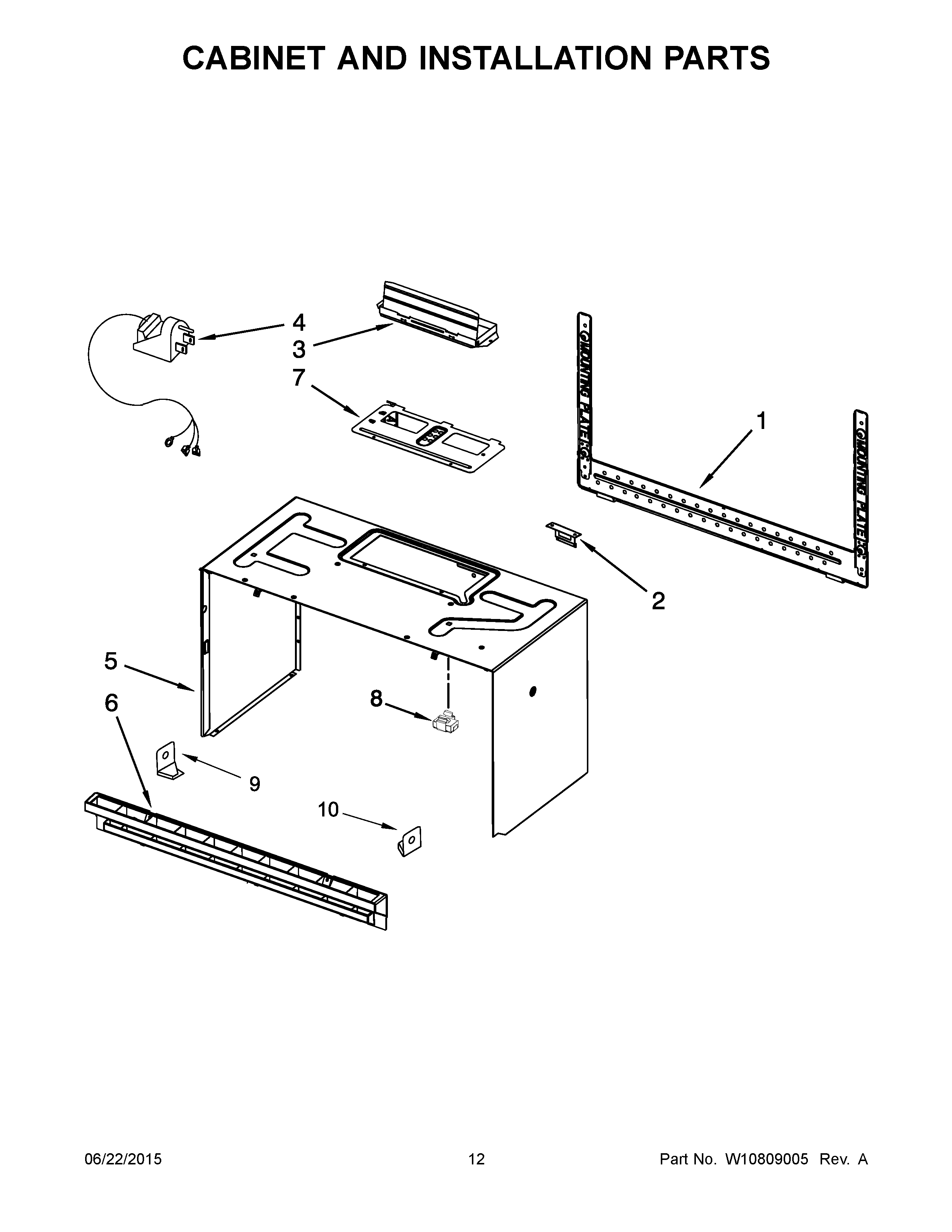

YAMV1170VES0 07 – CABINET AND INSTALLATION PARTSadmin2025-04-26T08:49:04+00:00YAMV1170VES0 07 – CABINET AND INSTALLATION PARTS
Products
| Position | Product |
|---|
| NI | MISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER |
| NI | MISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE |
| NI | MISCELLANEOUS PARTS, HARNESS, NTC SENSOR FLAT WIRE |
| NI | MISCELLANEOUS PARTS, HARNESS, HOOD LAMP AND TURNTABLE MOTOR |
| NI | MISCELLANEOUS PARTS, GROUND WIRE ASSEMBLY |
| NI | MAY W10676701 |
| NI | Installation, Hardware |
| NI | MAY W10779169 |
| NI | MAY W10138802 |
| NI | MISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH) |
| 1 | PLATE, MOUNTING |
| 2 | MAY 8206385 |
| 3 | DAMPER |
| 4 | CORD, POWER |
| 5 | MAY W10462001 |
| 6 | MAY W10259625 |
| 7 | MAY W10210832 |
| 8 | ASSEMBLY, MOUNTING NUT |
| 9 | HOLDER, VENT LEFT SIDE (BLACK) |
| 10 | HOLDER, VENT RIGHT SIDE (BLACK) |
