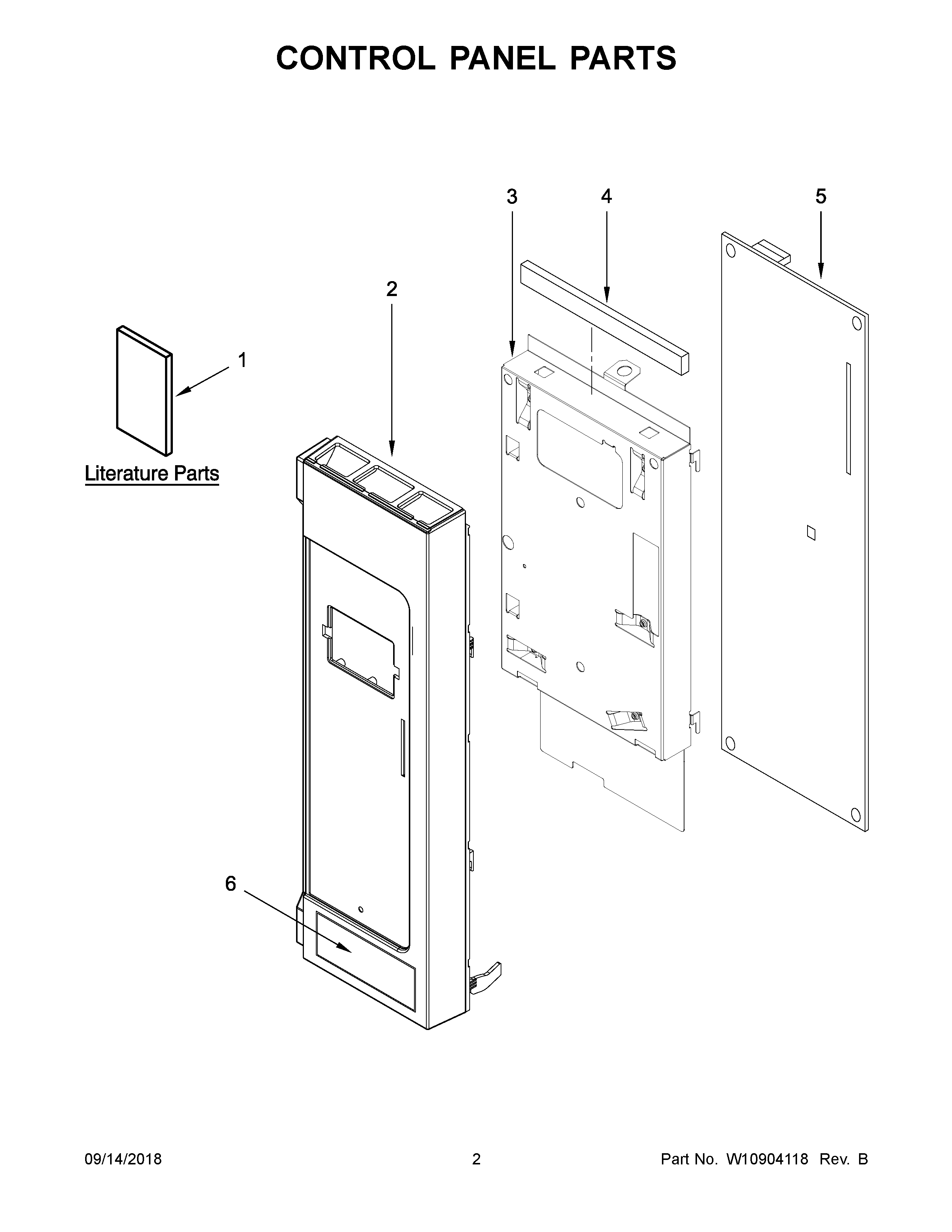

YAMV2307PFS0 02 – CONTROL PANEL PARTSadmin2025-04-26T08:49:16+00:00YAMV2307PFS0 02 – CONTROL PANEL PARTS ProductsPositionProduct1INSTALLATION INSTRUCTIONS1DTECH SHEET1CCOOKING GUIDE LABEL (FRENCH)1BCOOKING GUIDE LABEL (ENGLISH)1AUSE AND CARE GUIDE2CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEMBRANE SWITCH) (WHITE)2ACONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEMBRANE SWITCH) (STAINLESS)3BACKER, CONTROL4SEAL, CONTROL5MICROCOMPUTER6ASSEMBLY, PUSH BUTTON (WHITE)6AASSEMBLY, PUSH BUTTON (BLACK)
