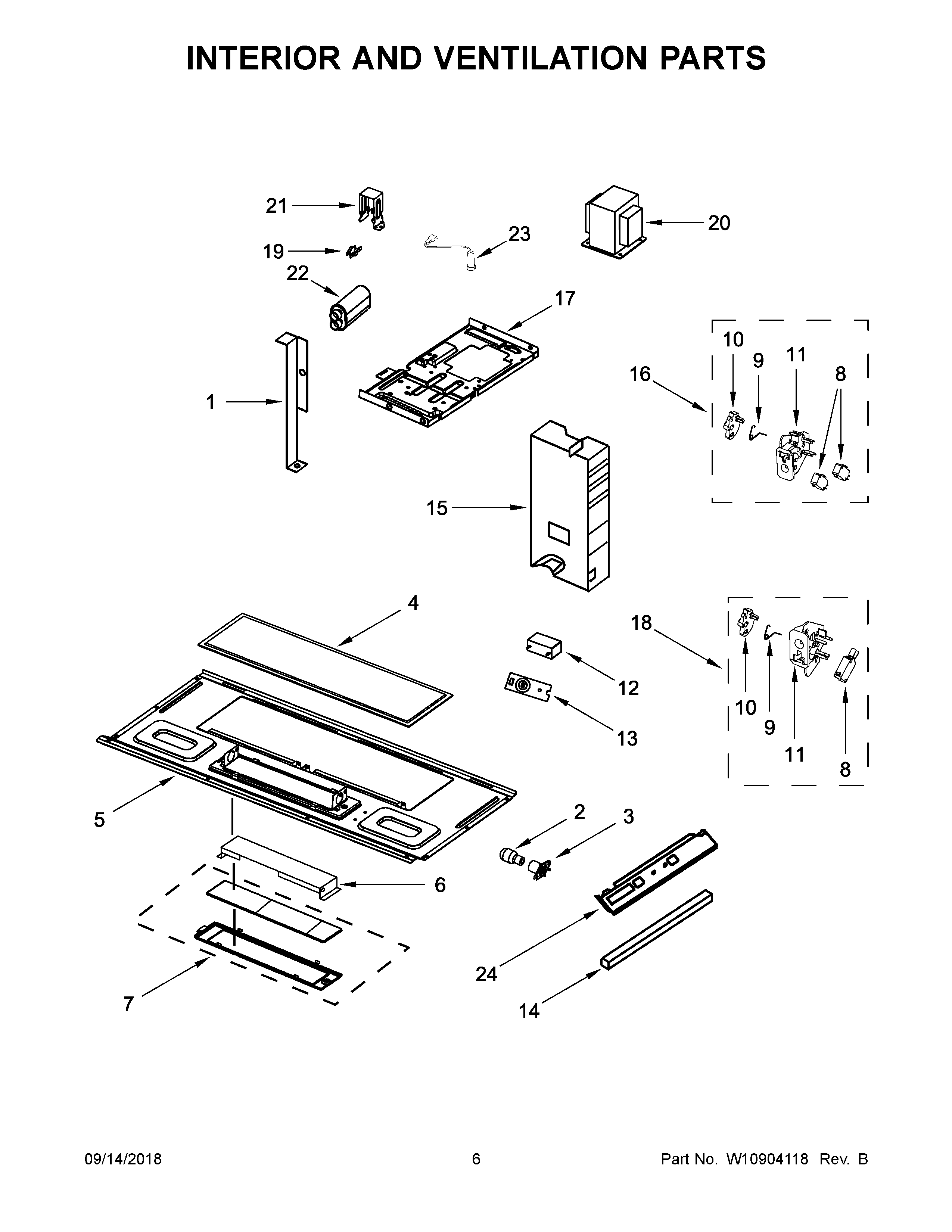

YAMV2307PFS0 04 – INTERIOR AND VENTILATION PARTS

Products

PositionProduct
1BRACKET, TOP
2MAY 8206232
3MAY W10210871
4MAY W10208631
5MAY W10245196
6REFLECTOR, LAMP
7ASSEMBLY, LAMP GLASS AND HOLDER
8LINER (NOT A SERVICEABLE PART)
9MAY W10156812
10PLATE, CAM
11MAY 8206419
11AMAY W10156813
12CAPACITOR, HOOD MOTOR
13Thermistor (PCBA)
14SEAL, COOLING
15AIR GUIDE, LOWER
16ASSEMBLY, UPPER INTERLOCK (INCLUDES SWITCHES)
17CHASSIS
18ASSEMBLY, LOWER INTERLOCK (INCLUDES SWITCHES)
19MAY W10269232
20TRANSFORMER, HIGH VOLTAGE
21BRACKET, CAPACITOR
22MAY 8206562
23DIODE, HIGH VOLTAGE
24SUPPORT, NTC
