YAMV2307PFS08 05 – AIR FLOW PARTS

YAMV2307PFS08 05 – AIR FLOW PARTS

Written by

in

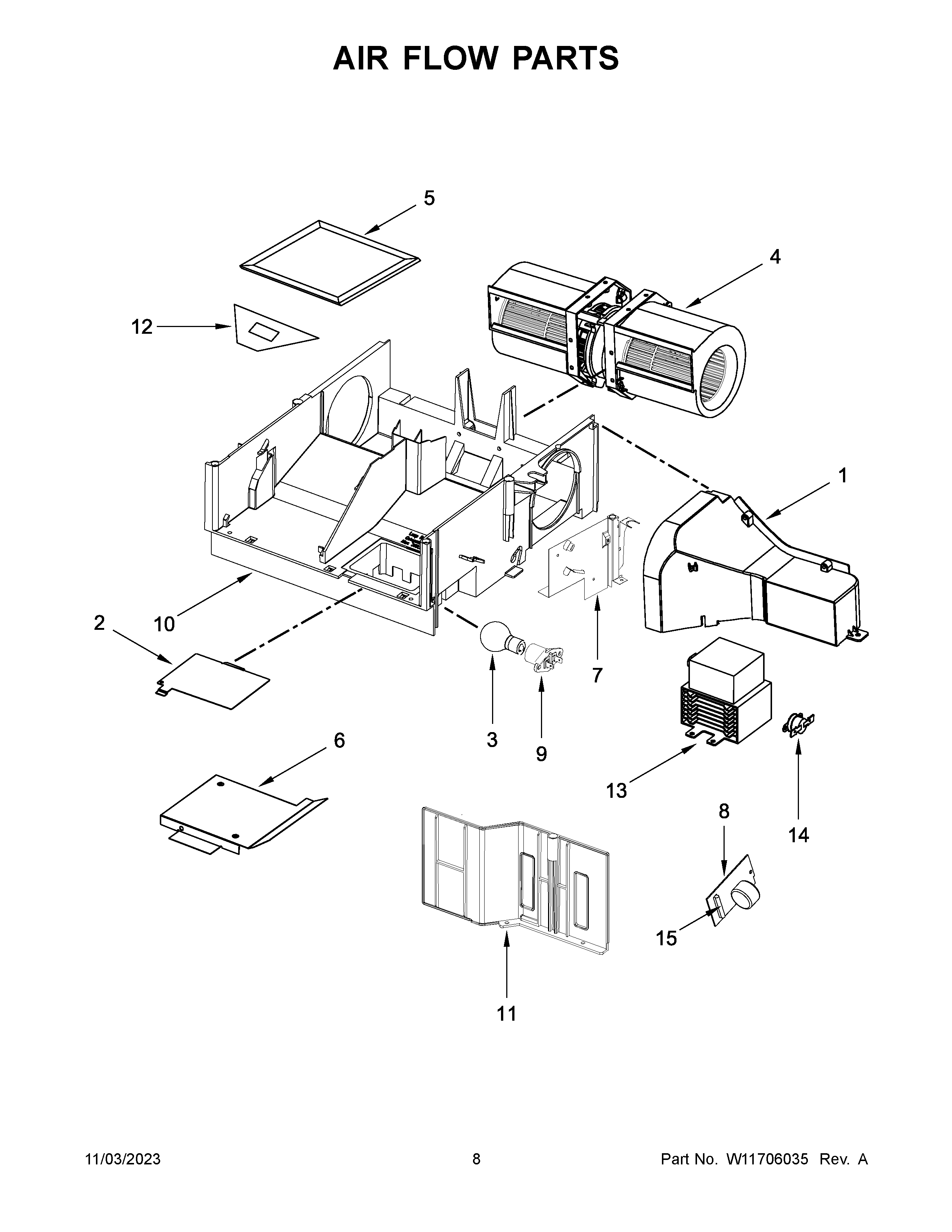

YAMV2307PFS08 05 – AIR FLOW PARTS

Products

PositionProduct
1W10471570 Whirlpool Microwave Deflector Assembly
28206382 Whirlpool Microwave Light Cover
3W11574182 Whirlpool Lamp Assembly
4W11441128 Whirlpool Microwave Fan Motor
5W10892387 Whirlpool Microwave Charcoal Filter
6W10138797 Whirlpool Microwave Duct Cover
7W11293488 Whirlpool Microwave Air Duct
8W10422269 Whirlpool Microwave Filter
9WPW10210878 Whirlpool Microwave LMP Housing
10W10828030 Whirlpool Microwave Air Duct
11W11520832 Whirlpool Side Cover
12W10810142 Whirlpool Relief Strain
13WPW10693025 Whirlpool Microwave Magnetron
14W11224803 Whirlpool Microwave Thermostat Fixed
15FUSE-THRML
