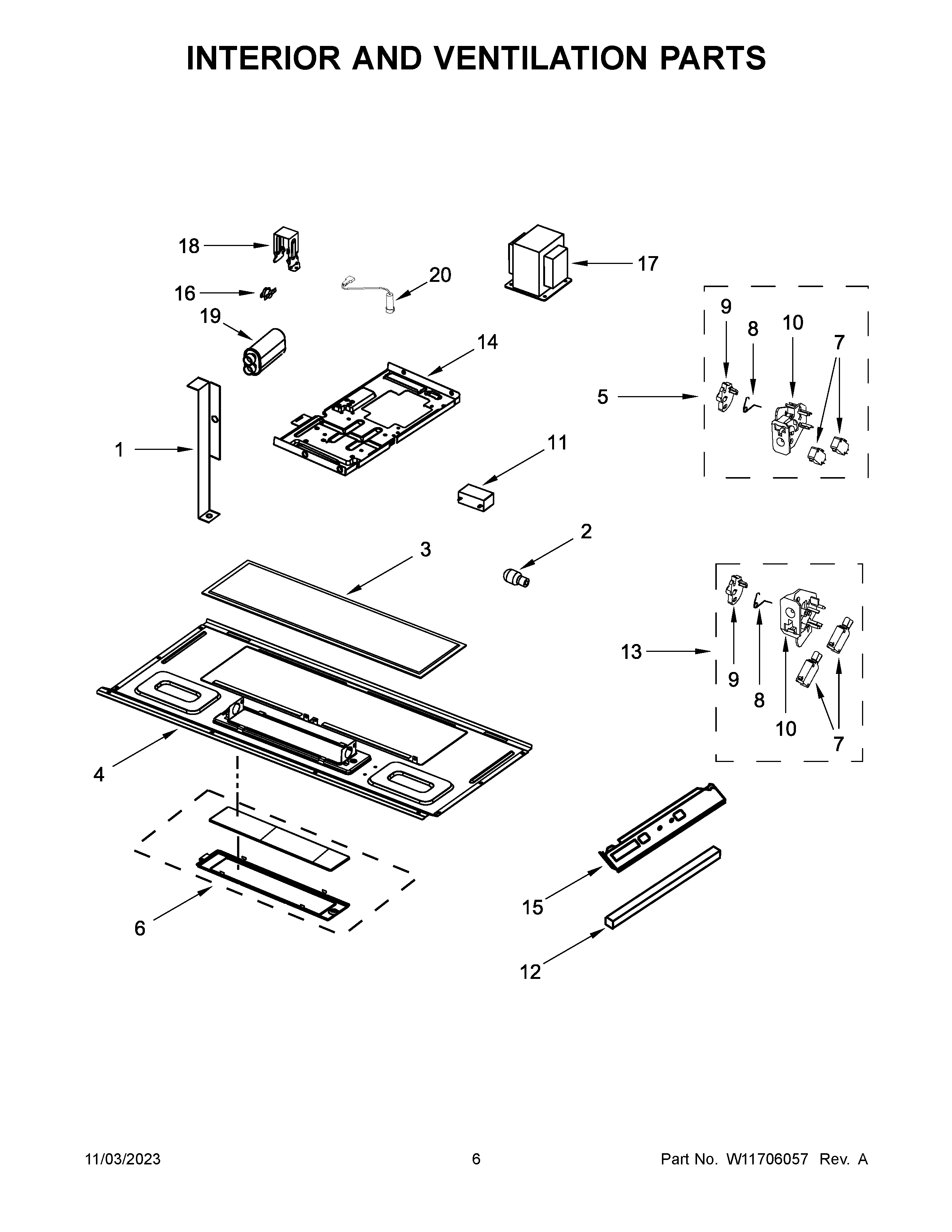

YAMV2307PFS09 04 – INTERIOR AND VENTILATION PARTS

Products

Position	Product
1	W10313275 Whirlpool Microwave Support Bracket
2	W11520384 Whirlpool Light Bulb
3	W10208631A Whirlpool Microwave Grease Filter
4	PLATE, BOTTOM
5	W11551558 Whirlpool Microwave Upper Interlock Assembly TITAN187
6	COVR-LIGHT
7	SWITCHES, INTERLOCK (NOT SERVICED, ORDER INTERLOCK ASSEMBLIES)
8	W10156812 Whirlpool Spring
9	W10562613 Whirlpool Microwave Interlock Cam Assembly
10A	WPW10156813 Whirlpool Microwave Bottom Interlock Support
10	WP8206419 Whirlpool Microwave Top Interlock Support
11	W11405832 Whirlpool Microwave Capacitor
12	W10571179 Whirlpool Cushion
13	LOWER INTERLOCK ASSY
14	W11520831 Whirlpool Base
15	SUPPORT, NTC
16	W11574181 Whirlpool Thermostat Fix
17	W11545871 Whirlpool Microwave Transformer
18	W10532063 Whirlpool Microwave Bracket
19	8206562 Whirlpool Microwave Capacitor MG
20	W11256462 Whirlpool Microwave Diode
