YAMV2307PFS2 02 – CONTROL PANEL PARTS

YAMV2307PFS2 02 – CONTROL PANEL PARTS

Written by

in

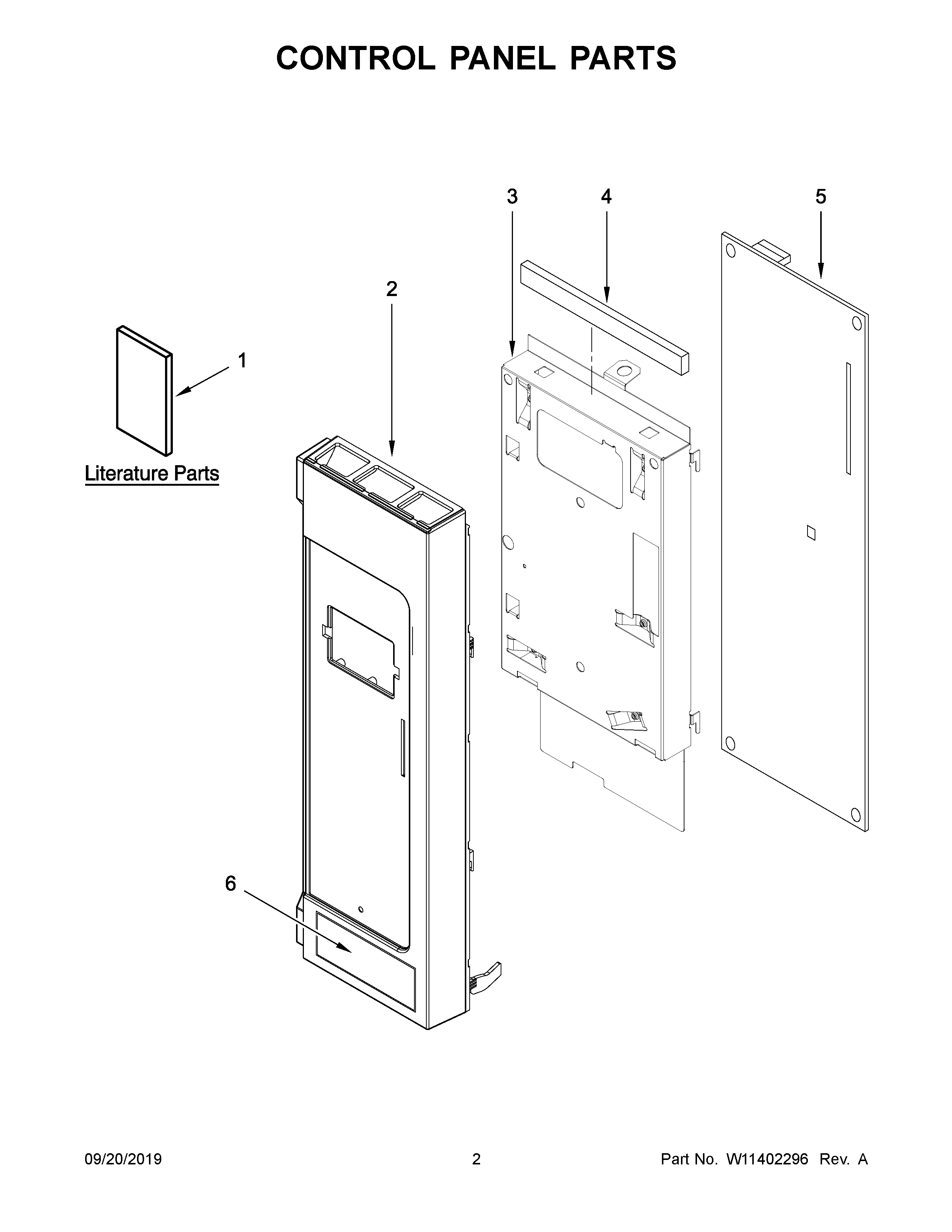

YAMV2307PFS2 02 – CONTROL PANEL PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
1AUSE AND CARE GUIDE
1BCOOKING GUIDE LABEL (ENGLISH)
1CCOOKING GUIDE LABEL (FRENCH)
1DMAY W11279374
2ACONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEMBRANE SWITCH) (STAINLESS)
2CONTROL PANEL ASSEMBLY (INCLUDES LENS AND MEMBRANE SWITCH) (WHITE)
3BACKER, CONTROL
4SEAL, CONTROL
5MICROCOMPUTER
6ASSEMBLY, PUSH BUTTON (WHITE)
6AASSEMBLY, PUSH BUTTON (BLACK)
