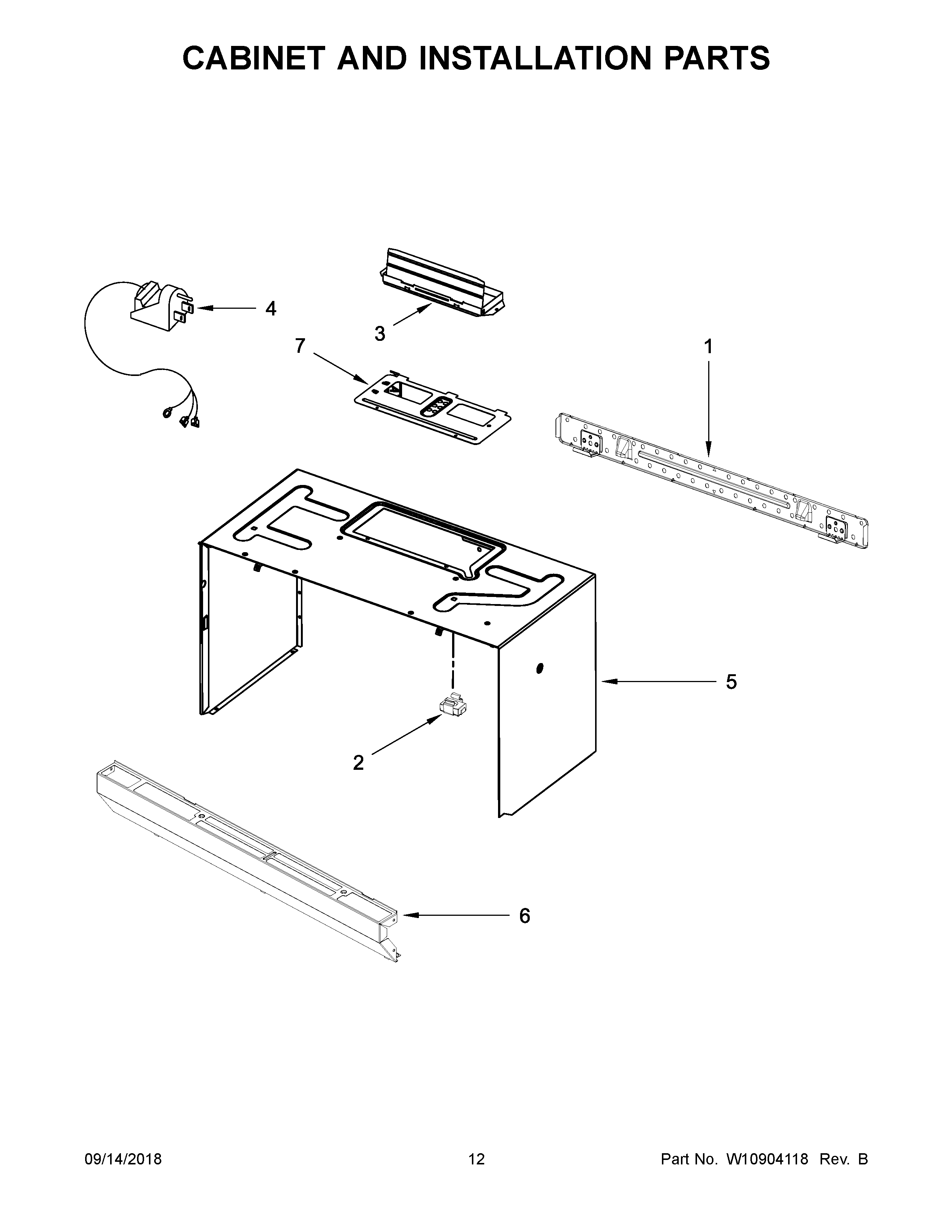

YAMV2307PFW0 07 – CABINET AND INSTALLATION PARTS

YAMV2307PFW0 07 – CABINET AND INSTALLATION PARTS

Written by

in

YAMV2307PFW0 07 – CABINET AND INSTALLATION PARTS

Products

PositionProduct
NIMISCELLANEOUS PARTS, HARNESS, MAIN
NIMISCELLANEOUS PARTS, HARNESS, MAGNETRON TO HIGH VOLTAGE TRANSFORMER
NIMISCELLANEOUS PARTS, HARDWARE, INSTALLATION
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER (ENGLISH & FRENCH)
NIMISCELLANEOUS PARTS, 1/4-20X3" PANHEAD SCREW
NIMISCELLANEOUS PARTS, TEMPLATE, UPPER
NIMISCELLANEOUS PARTS, HARNESS, PCBA GROUND WIRE
1PLATE, MOUNTING
2ASSEMBLY, MOUNTING NUT
3DAMPER
4CORD, POWER
5CASE, OUTER (WHITE)
5ACASE, OUTER (BLACK)
6GRILLE, VENT (WHITE)
6AGRILLE, VENT (BLACK)
7COVER, FAN MOTOR
