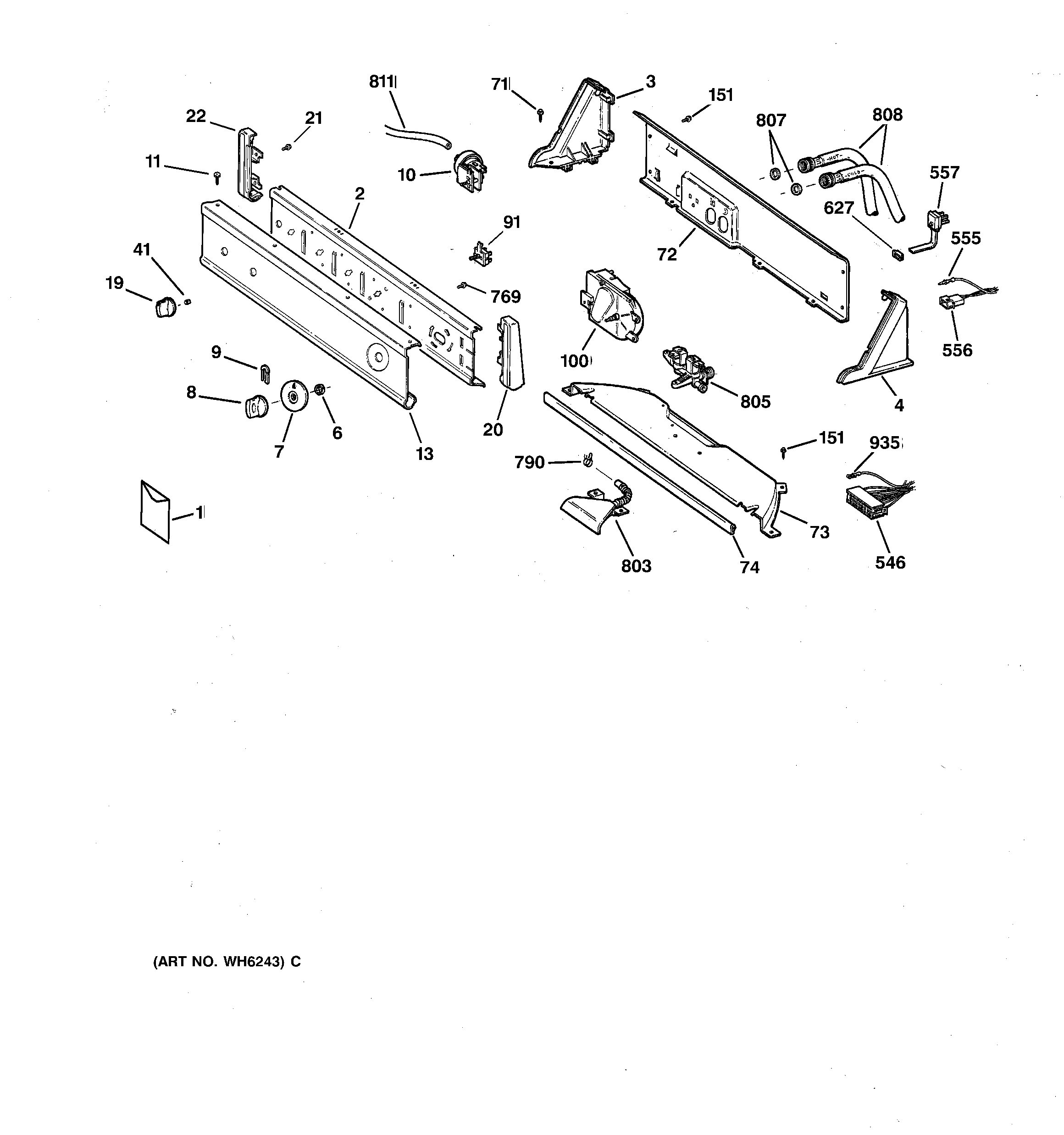

YBXR2070V0WW CONTROLS & BACKSPLASH

YBXR2070V0WW CONTROLS & BACKSPLASH

Written by

in

YBXR2070V0WW CONTROLS & BACKSPLASH

Products

PositionProduct
1USE CARE MANUAL
1GEN 31-15238
1INSTRUCTION INSTALL
2GEN WH46X0348
3GEN WH42X2397
4GEN WH42X2398
6GEN WH02X0650
7GEN WH11X0141
8GEN WH01X2757
9WH1X2117 GE Timer Knob Spring Clip
10WH12X10065 GE Washer Water Level Pressure Switch
11GEN WH02X1206
13GEN WH42X10038
19GEN WH01X2756
20GEN WE19X0984
21WH2X1185 GE Scraper 8-18 B
22GEN WE19X0983
41GEN WE01X0980?
71WH2X1205 GE Screw 8-18
72GEN WH46X0337
73GEN WH46X0341
74GEN WH08X0379
91WH12X10498 GE Washer Rotary Switch
100GEN WH12X1015
546GEN WH12X0870
555GEN WB17X5053
556GEN WH12X0497
557GEN WH19X0311
627GEN WH12X10025
769WB1X500D GE Oven Screw Package
790WH1X2036 GE UNIX Clamp
803HOSE & WATER INLET
805WATER VALVE
807WH2X42D GE Washer Pack of 12
808WH41X10207 GE Washer Rubber Inlet Hose 2 Pack 4'
811WH41X365 GE Washer Water Level Pressure Switch HOSE
935GEN WD01X1434
