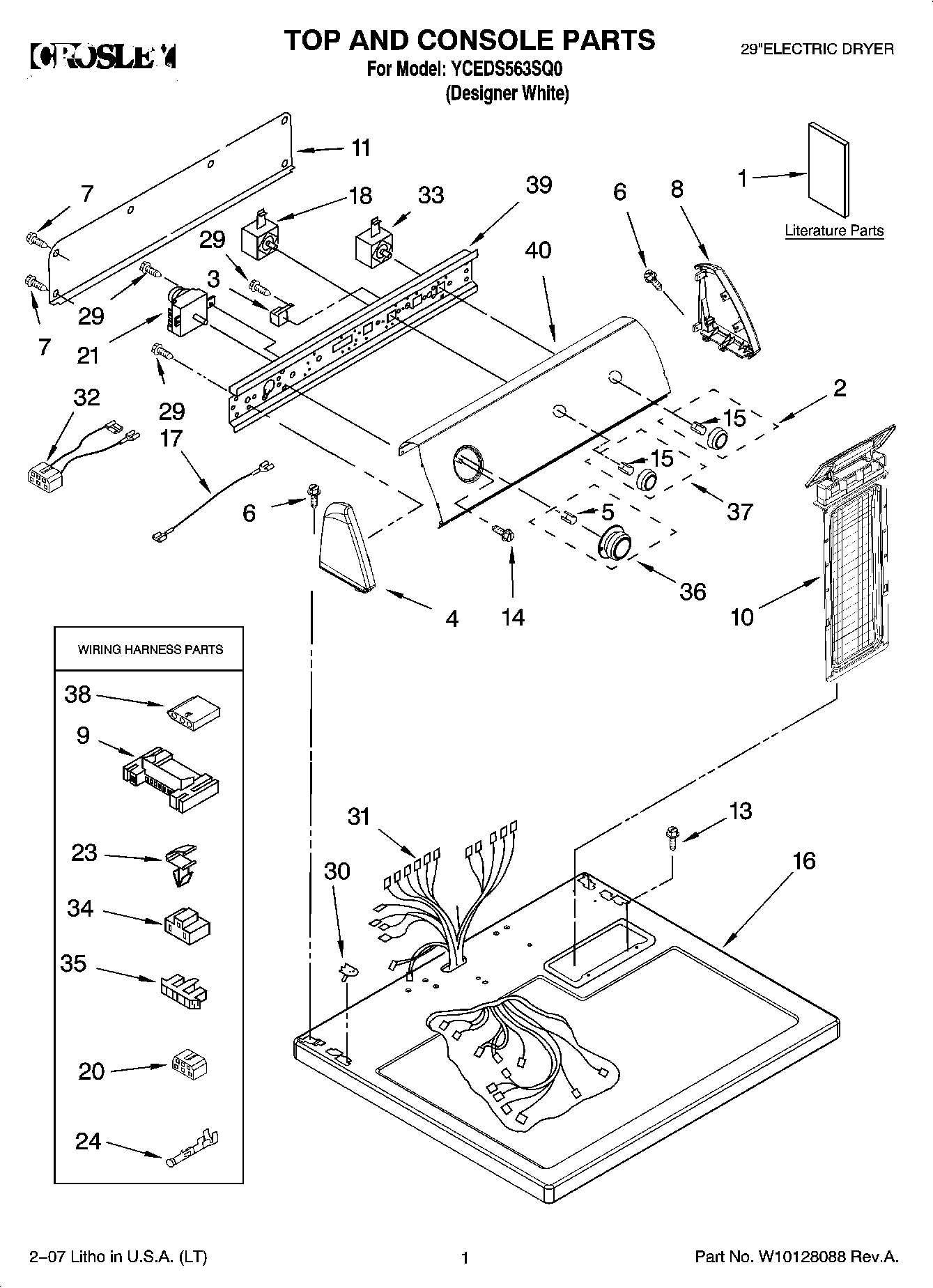

YCEDS563SQ0 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Wiring Diagram
1	Guide, Use & Care
1	Installation, Instruction
1	WPL 677818
1	Sheet, Cycle Feature
1	Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
2	Knob, Push-To-Start
3	WP694419 Whirlpool Buzzer Adjuster
5	WP688805 Whirlpool Spring Clip
6	WP388326 Whirlpool Screw
7	WP693995 Whirlpool Screw
8	W10820038 Whirlpool Endcap
9	3395683 Whirlpool Connector
10	WPW10717210 Whirlpool Dryer Lint Screen Filter
11	W10103406 Whirlpool Rear Panel
13	W11693756 Whirlpool Screw Assembly
14	3400859 Whirlpool Screw
15	WP8536939 Whirlpool Spring Clip
16	Top
17	Wire, Jumper (Tan)
17	Wire, Jumper (White)
18	3399638 Whirlpool Switch
20	Block, Disconnect
21	WP3979618 Whirlpool Timer
23	WP3394427 Whirlpool Clip
24	WP94614 Whirlpool Terminal
29	WP90767 Whirlpool Screw
30	WP357213 Whirlpool Hinge Stopper
31	Harness, Wiring
32	8283286 Whirlpool Wire Harness
33	WP3398094 Whirlpool Push To Start Switch
34	3401144 Whirlpool Connector
35	Connector, Timer
36	WP8557455 Whirlpool Knob Timer
37	KNOB
38	3936144 Whirlpool Connector
39	Bracket, Control
40	Panel, Control (White)
