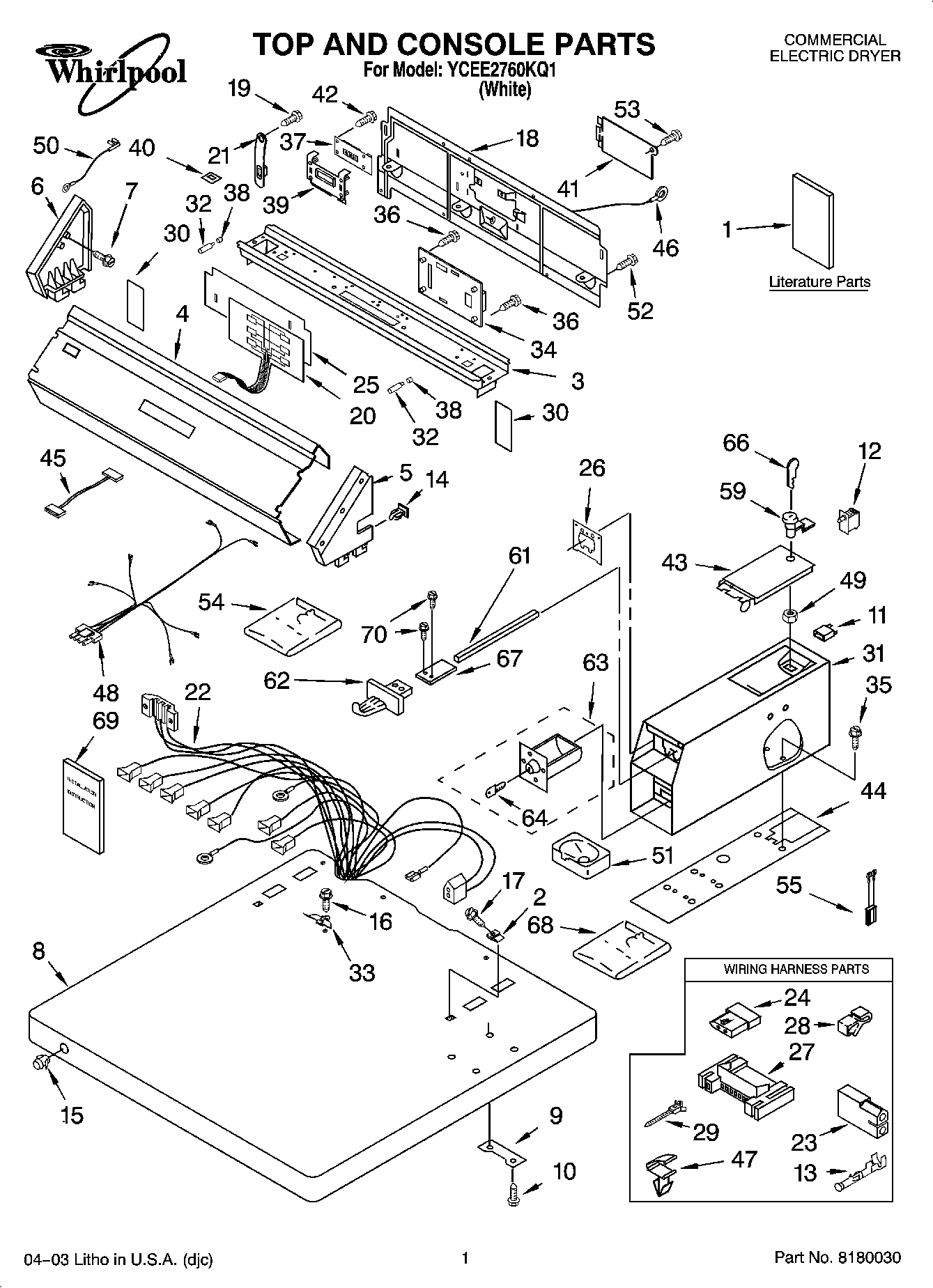

YCEE2760KQ1 01 – TOP AND CONSOLE PARTS

Products

Position	Product
1	Literature Parts (Tech Sheet)
1	Literature Parts (Instructions, Installation)
1	Literature Parts (Wiring Diagram)
2	WP357213 Whirlpool Hinge Stopper
3	Bracket, Control
4	Panel, Control
5	Cap, End (R.H.)
6	W11686050 Whirlpool Drive Motor
7	WPW10109200 Whirlpool Screw
8	Top
9	3347825 Whirlpool Plate
10	W10841059 Whirlpool Screw
11	Switch, Service Diagnostic
12	Switch, Vault Counter
13	WP94614 Whirlpool Terminal
14	WP689559 Whirlpool Nut
15	WP387371 Whirlpool Plug
16	WP355214 Whirlpool Screw
17	WP8281182 Whirlpool Screw Assembly
18	W11089934 Whirlpool Rear Panel
19	WP488729 Whirlpool Refrigerator Door Screw
20	Switch, Membrane
21	WP8568314 Whirlpool Strap
22	Harness, Main
23	Receptacle, Latching (2-Way) (Uses Terminal 94614)
24	WP717253 Whirlpool Dishwasher Connector
25	Backer Plate
26	279950 Whirlpool Funnel
27	3395683 Whirlpool Connector
28	W10113937 Whirlpool Clamp
29	WP3391018 Whirlpool Wire Tie
30	Backer Plate, Side (2)
31	WPW10461200 Whirlpool Case
32	Mounting Stud
33	Clip, Static Ground
34	Control Board
35	W11715721 Whirlpool Screw Assembly
36	WPW10366705 Whirlpool Screw
37	Board, Display
38	Cap, Stud
39	Lens, Display
40	Clip (2)
41	WPW10119283 Whirlpool Terminal Cover
43	W11283272 Whirlpool Washer Dryer Meter Case Access Door
44	WP3954812 Whirlpool Cushion
45	Harness Wire (Display)
46	Wire, Ground
47	WP3394427 Whirlpool Clip
48	Harness Wire (Meter Case)
49	WP90406 Whirlpool Nut
50	Ground Wire (Control Board)
51	WP385421 Whirlpool Coin Operated Laundry Funnel
52	WP3351614 Whirlpool Screw
53	WP90767 Whirlpool Screw
54	WP3406965 Whirlpool Coin Chute
55	A.C. Line Filter
59	W11315637 Whirlpool Lock Assembly
61	WP8576635 Whirlpool Bolt
62	WPL 8316265
62	Inserts (Not Shown
62	W11126319 Whirlpool Washer Dryer Coin Chute
63	WPL ARI136121A
64	WPL ARI136122A
66	WPL ARI136123A
67	3390424 Whirlpool Extension
68	WPL 8316524
69	WPL 8316532
70	WPL 3400086
