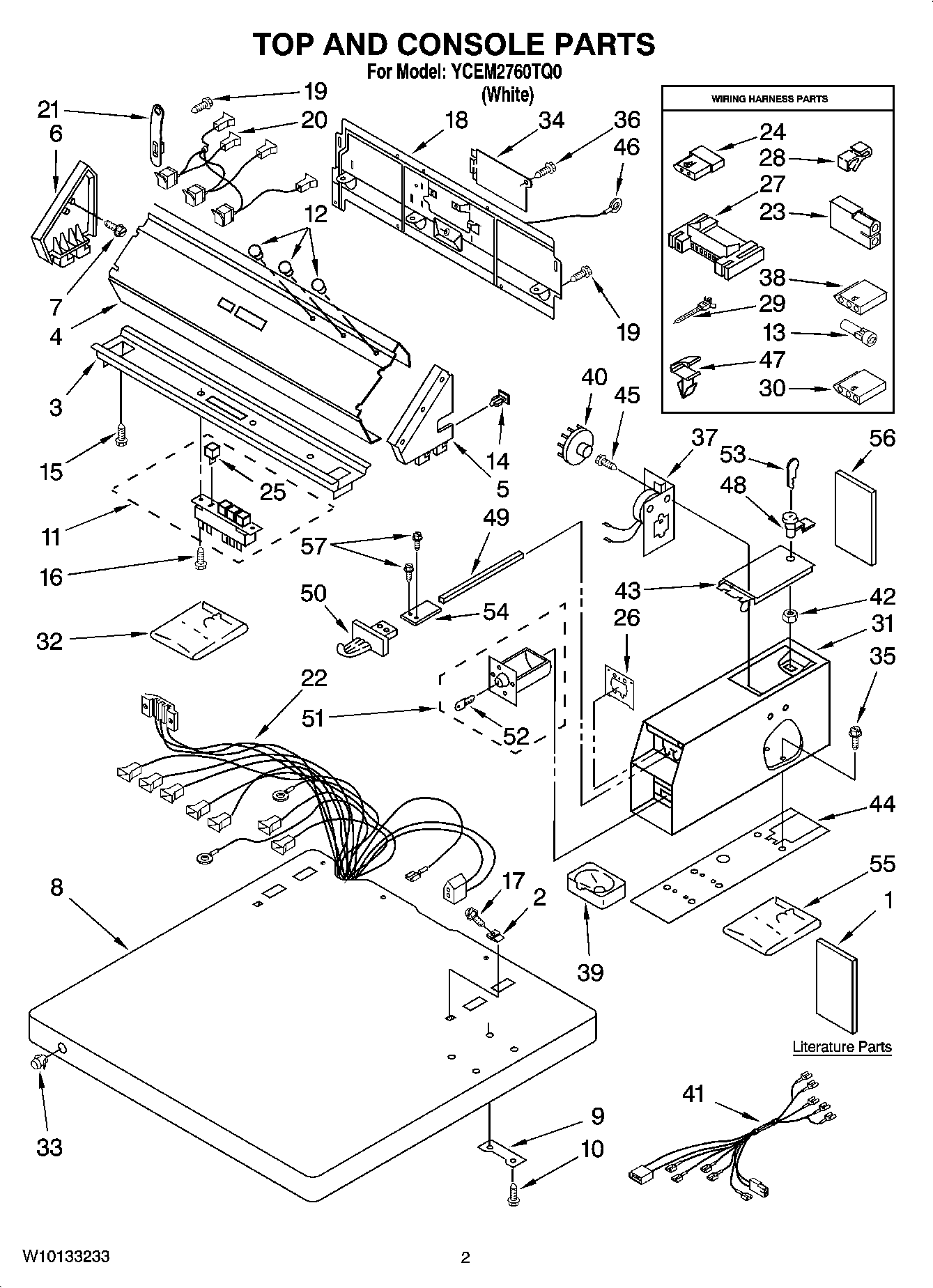

YCEM2760TQ0 01 – TOP AND CONSOLE PARTS

YCEM2760TQ0 01 – TOP AND CONSOLE PARTS

Written by

in

YCEM2760TQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Service Parts List
1Instructions Installation
2WP357213 Whirlpool Hinge Stopper
3Bracket, Control
4Panel, Control
5Cap, End (R.H.)
6W11686050 Whirlpool Drive Motor
7WPW10109200 Whirlpool Screw
8Top
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
12WP3348109 Whirlpool Light Lens
13Plug
14WP689559 Whirlpool Nut
16WP489128 Whirlpool Refrigerator Screw
17WP8281182 Whirlpool Screw Assembly
18W11089934 Whirlpool Rear Panel
19WP488729 Whirlpool Refrigerator Door Screw
20Lights, Indicator Assembly
21WP8568314 Whirlpool Strap
22Harness, Main
23Receptacle, Latching (2-Way) (Uses Terminal 94614)
24WP717253 Whirlpool Dishwasher Connector
25SWITCH-PB
26279950 Whirlpool Funnel
273395683 Whirlpool Connector
28W10113937 Whirlpool Clamp
29WP3391018 Whirlpool Wire Tie
303936144 Whirlpool Connector
31WPW10461200 Whirlpool Case
32WP3406965 Whirlpool Coin Chute
33Top Lock
33Also Available
33WP387371 Whirlpool Plug
34WPW10119283 Whirlpool Terminal Cover
35W11715721 Whirlpool Screw Assembly
36WP90767 Whirlpool Screw
37W11451464 Whirlpool Dryer Timer
38353424 Whirlpool Connector
39WP385421 Whirlpool Coin Operated Laundry Funnel
40WP339854 Whirlpool Cam
40WP3387974 Whirlpool Cam
40WP339855 Whirlpool Cam
40WP339853 Whirlpool Cam
40WP343777 Whirlpool Cam
413401682 Whirlpool Wire Harness
42WP90406 Whirlpool Nut
43W11283272 Whirlpool Washer Dryer Meter Case Access Door
44WP3954812 Whirlpool Cushion
45339805 Whirlpool Screw
46Wire, Ground
47WP3394427 Whirlpool Clip
48W11315637 Whirlpool Lock Assembly
49WP8576635 Whirlpool Bolt
50WPL 8316265
50Inserts (Not Shown
50W11126319 Whirlpool Washer Dryer Coin Chute
51W11190039 Whirlpool Coin Box Assembly
52WPL ARI136151A
53WPL ARI136152A
543390424 Whirlpool Extension
55WPL 8316524
56WPL 8316532
57WP3400029 Whirlpool Dishwasher Nut
