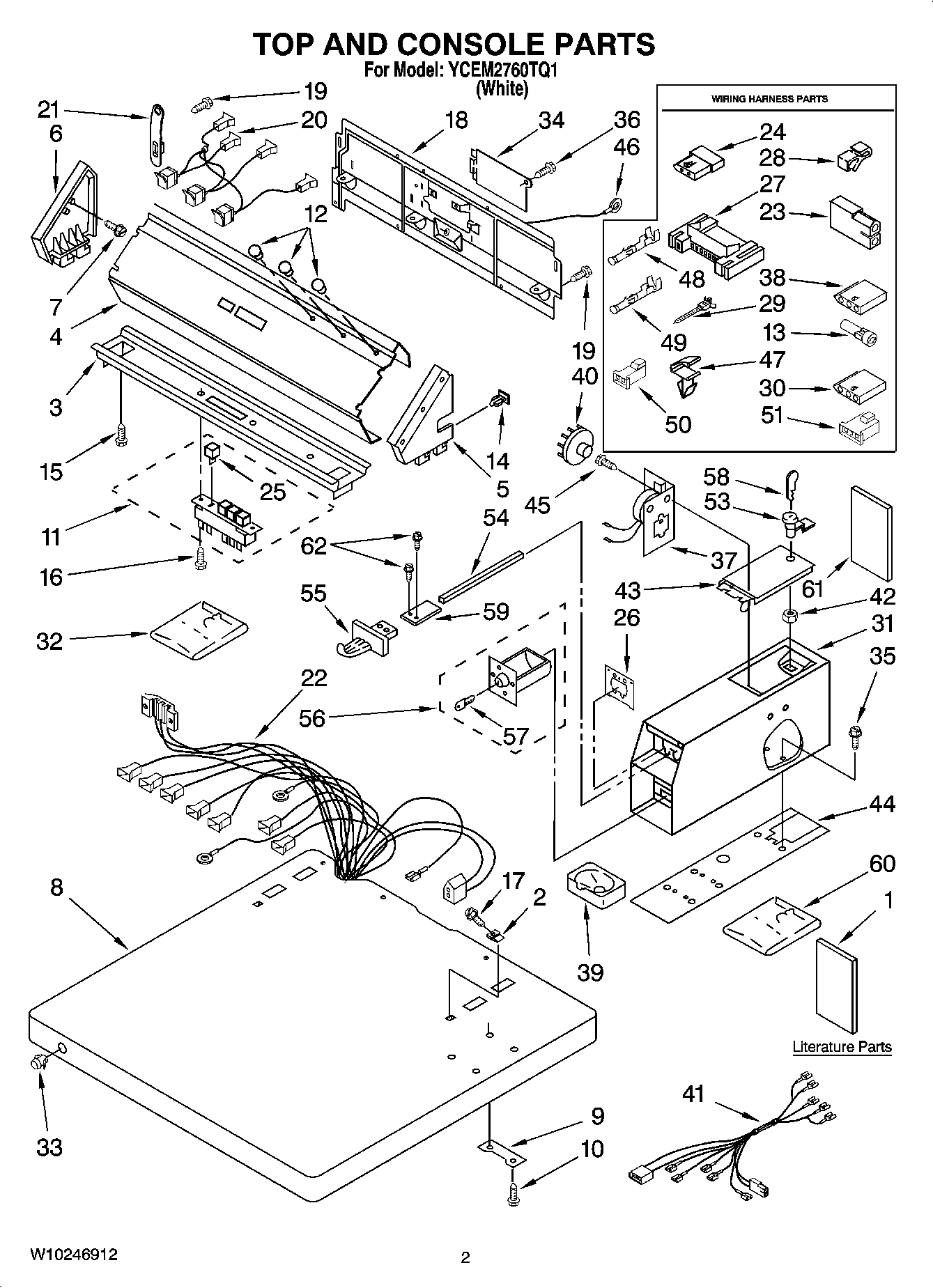

YCEM2760TQ1 01 – TOP AND CONSOLE PARTS
Written by
in
YCEM2760TQ1 01 – TOP AND CONSOLE PARTS
Products
Position
Product
1
Instructions, Installation
1
Wiring Diagram
1
Service Parts List
2
WP357213 Whirlpool Hinge Stopper
3
Bracket, Control
4
Panel, Control
5
Cap, End (R.H.)
6
W11686050 Whirlpool Drive Motor
7
WPW10109200 Whirlpool Screw
8
Top
9
3347825 Whirlpool Plate
10
W10841059 Whirlpool Screw
12
WP3348109 Whirlpool Light Lens
13
Plug
14
WP689559 Whirlpool Nut
16
WP489128 Whirlpool Refrigerator Screw
17
WP8281182 Whirlpool Screw Assembly
18
W11089934 Whirlpool Rear Panel
19
WP488729 Whirlpool Refrigerator Door Screw
20
Lights, Indicator Assembly
21
WP8568314 Whirlpool Strap
22
Harness, Main
23
Receptacle, Latching (2-Way) (Uses Terminal 94614)
24
WP717253 Whirlpool Dishwasher Connector
25
SWITCH-PB
26
279950 Whirlpool Funnel
27
3395683 Whirlpool Connector
28
W10113937 Whirlpool Clamp
29
WP3391018 Whirlpool Wire Tie
30
3936144 Whirlpool Connector
31
WPW10461200 Whirlpool Case
32
WP3406965 Whirlpool Coin Chute
33
WP387371 Whirlpool Plug
33
Also Available
33
Top Lock
34
WPW10119283 Whirlpool Terminal Cover
35
W11715721 Whirlpool Screw Assembly
36
WP90767 Whirlpool Screw
37
W11451464 Whirlpool Dryer Timer
38
353424 Whirlpool Connector
39
WP385421 Whirlpool Coin Operated Laundry Funnel
40
WP343777 Whirlpool Cam
40
WP339855 Whirlpool Cam
40
WP339854 Whirlpool Cam
40
WP3387974 Whirlpool Cam
40
WP339853 Whirlpool Cam
41
3401682 Whirlpool Wire Harness
42
WP90406 Whirlpool Nut
43
W11283272 Whirlpool Washer Dryer Meter Case Access Door
44
WP3954812 Whirlpool Cushion
45
339805 Whirlpool Screw
46
Wire, Ground
47
WP3394427 Whirlpool Clip
48
WP94614 Whirlpool Terminal
49
WP596797 Whirlpool Terminal
50
Receptacle
51
WPL ARI136156A
51
Receptacle, 3-Way Terminal (Use W/94614)
53
W11315637 Whirlpool Lock Assembly
54
WP8576635 Whirlpool Bolt
55
Inserts (Not Shown
55
W11126319 Whirlpool Washer Dryer Coin Chute
55
WPL 8316265
56
W11190039 Whirlpool Coin Box Assembly
57
WPL ARI136157A
58
WPL ARI136158A
59
3390424 Whirlpool Extension
60
WPL 8316524
61
WPL 8316532
62
WP3400029 Whirlpool Dishwasher Nut
←
