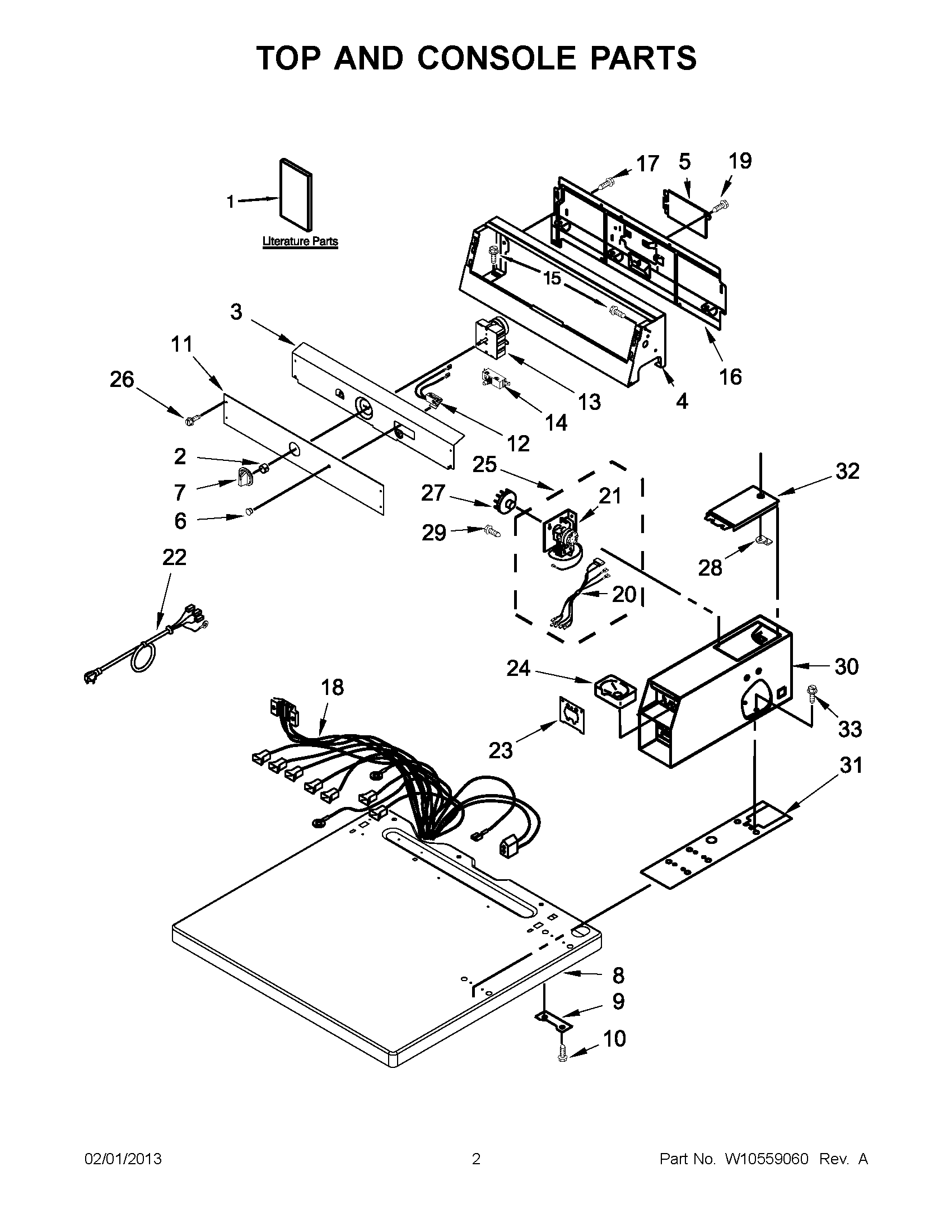

YCEM2763BQ0 01 – TOP AND CONSOLE PARTS

YCEM2763BQ0 01 – TOP AND CONSOLE PARTS

Written by

in

YCEM2763BQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1INSTALLATION INSTRUCTIONS
2Clip, Knob
3W10461070 Whirlpool Bracket
4W10461094 Whirlpool Control Panel
5WPW10119283 Whirlpool Terminal Cover
6WPW10133502 Whirlpool Lens
7W10492415 Whirlpool Knob
8WPW10136707 Whirlpool Top Assembly
93347825 Whirlpool Plate
10W10841059 Whirlpool Screw
11W10461113 Whirlpool Overlay
12W10662107 Whirlpool Light Bulb
13WPW10327105 Whirlpool Cycle Switch
14W11097274 Whirlpool Push-To-Start Switch
15WP90767 Whirlpool Screw
16W11089934 Whirlpool Rear Panel
17WP488729 Whirlpool Refrigerator Door Screw
18Harness, Main
19303776 Whirlpool Dishwasher Screw
20W10177791 Whirlpool Wire Harness
21W11451464 Whirlpool Dryer Timer
22CORD-POWER
23279950 Whirlpool Funnel
24WP385421 Whirlpool Coin Operated Laundry Funnel
25WPW10521398 Whirlpool Timer
26WPW10131119 Whirlpool Screw
27WP343777 Whirlpool Cam
27WP3387974 Whirlpool Cam
28WP90406 Whirlpool Nut
29339805 Whirlpool Screw
30WPW10461200 Whirlpool Case
31WP3954812 Whirlpool Cushion
32W11283272 Whirlpool Washer Dryer Meter Case Access Door
33W11715721 Whirlpool Screw Assembly
