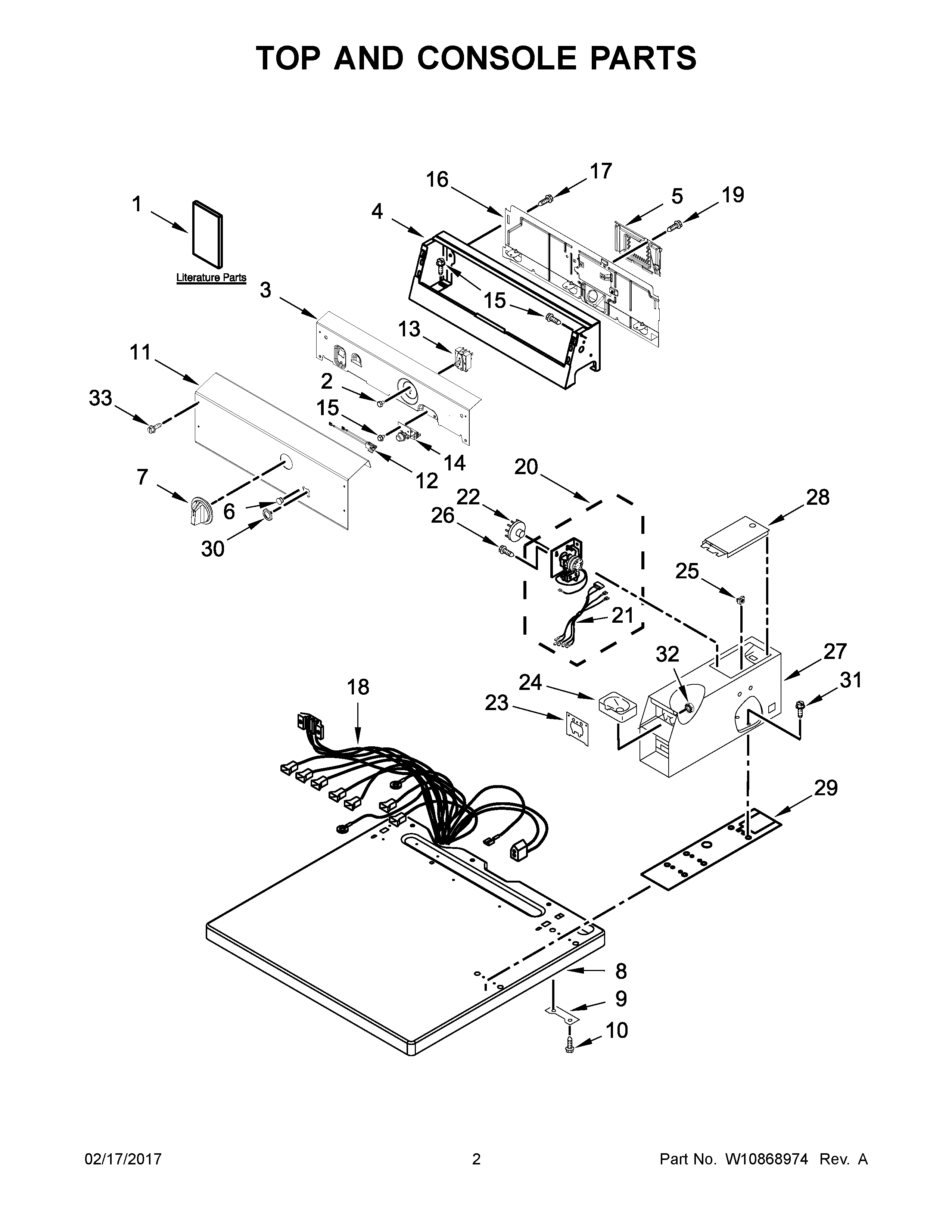

YCEM2765FQ0 02 – TOP AND CONSOLE PARTS

Products

Position	Product
1A	WIRING DIAGRAM
1	2765 MODEL, INSTALLATION INSTRUCTIONS
2	SCREW
3	W10461070 Whirlpool Bracket
4	W10461094 Whirlpool Control Panel
5	WPW10119283 Whirlpool Terminal Cover
6	WPW10133502 Whirlpool Lens
7	W10492415 Whirlpool Knob
8	WPW10136707 Whirlpool Top Assembly
9	3347825 Whirlpool Plate
10	W10841059 Whirlpool Screw
11	W10845275 Whirlpool Dryer Overlay
12	W10662107 Whirlpool Light Bulb
13	WPW10327105 Whirlpool Cycle Switch
14	W11097274 Whirlpool Push-To-Start Switch
15	WP90767 Whirlpool Screw
16	W11089934 Whirlpool Rear Panel
17	WP488729 Whirlpool Refrigerator Door Screw
18	Harness, Main
19	303776 Whirlpool Dishwasher Screw
20	WPW10521398 Whirlpool Timer
21	W10177791 Whirlpool Wire Harness
22A	WP343777 Whirlpool Cam
22	WP3387974 Whirlpool Cam
23	279950 Whirlpool Funnel
24	WP385421 Whirlpool Coin Operated Laundry Funnel
25	WP90406 Whirlpool Nut
26	339805 Whirlpool Screw
27	WPW10461200 Whirlpool Case
28	W11283272 Whirlpool Washer Dryer Meter Case Access Door
29	WP3954812 Whirlpool Cushion
30	W10510149 Whirlpool Bezel
31	W11715721 Whirlpool Screw Assembly
32	WP3400029 Whirlpool Dishwasher Nut
33	WPW10131119 Whirlpool Screw
