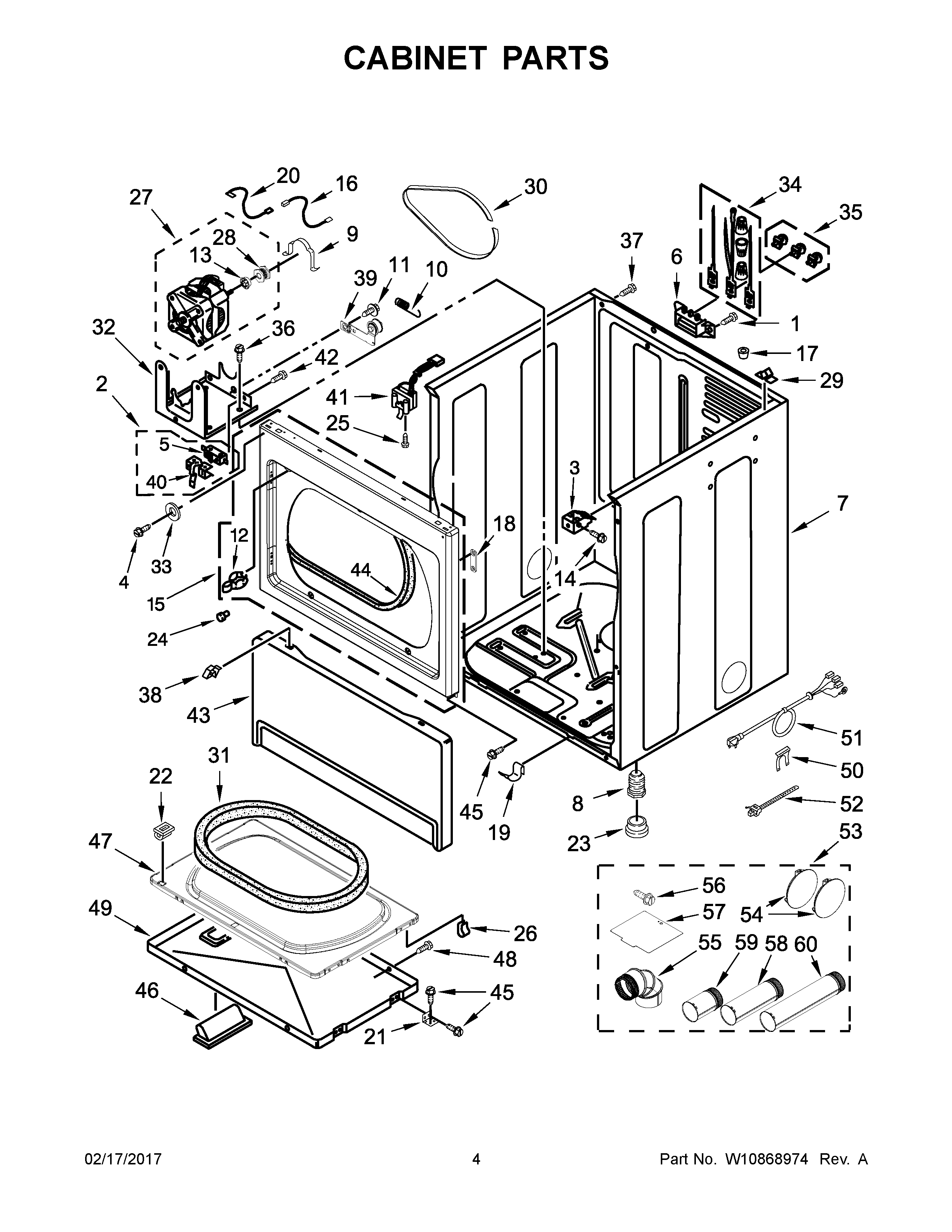

YCEM2765FQ0 03 – CABINET PARTS

Products

Position	Product
NI	49621 Whirlpool Leveling Feet
1	WP308685 Whirlpool Microwave Screw
3	3391846 Whirlpool Clip
4	WP488729 Whirlpool Refrigerator Door Screw
5	279782 Whirlpool Lid Switch
6	WP3397659 Whirlpool Terminal Block
7	W11417441 Whirlpool Cabinet
9	WP660658 Whirlpool Clamp
10	WPW10446781 Whirlpool Spring
11	WP3389420 Whirlpool Screw
13	WP3393657 Whirlpool Belt Retainer
14	681615 Whirlpool Screw
15	W10242810 Whirlpool Panel
16	W10167612 Whirlpool Wire
17	WPL 356674
18	W10191265 Whirlpool Plug
19	WPW10291934 Whirlpool Clip
20	3398948 Whirlpool Wire
21	WPW10279703 Whirlpool Hinge Assembly
22	279570 Whirlpool Dryer Door Latch Kit
23	WP3391943 Whirlpool Foot Boot
24	693152 Whirlpool Bumper
25	WP3395530 Whirlpool Screw
26	WPW10131123 Whirlpool Nut
27	W10841144 Whirlpool Drive Motor
28	WP8066184 Whirlpool Dryer Motor Pulley
29	WP345670 Whirlpool Lock
30	WPW10131172 Whirlpool Belt
31	WP3390735 Whirlpool Door Seal
32	WP3387118 Whirlpool Base Assembly
33	Washer
34	279318 Whirlpool Terminal
35	279393 Whirlpool Terminal Block Screw and Nut Kit
36	SCREW
37	W10850756 Whirlpool Screw
38	WP3388229 Whirlpool Dryer Spring Clip
39	WPW10344193 Whirlpool Idler Pulley
40	WP8066120 Whirlpool Lever Assembly
41	SWITCH-DOOR DRYER
42	WP98129 Whirlpool Screw
43	WP3406797 Whirlpool Toe Panel
44	WP3387242 Whirlpool Seal
45	WP488627 Whirlpool Refrigerator Screw
46	W11209427 Whirlpool Handle
47	280083 Whirlpool Rear Door
48	WPW10139210 Whirlpool Screw
49	W11663440 Whirlpool Door
50	W11712577 Whirlpool Clip
51	W11710615 Whirlpool Cord-Power
52	WPW10155270 Whirlpool Wire Tie
53	W10470674 Whirlpool Dryer Side Vent Exhaust Kit
55	WPW10416072 Whirlpool Elbow
57	WPW10354249 Whirlpool Cover
58	WP8563747 Whirlpool Exhaust Pipe
59	WPW10331278 Whirlpool Exhaust Pipe
60	WP8563749 Whirlpool Exhaust Pipe
