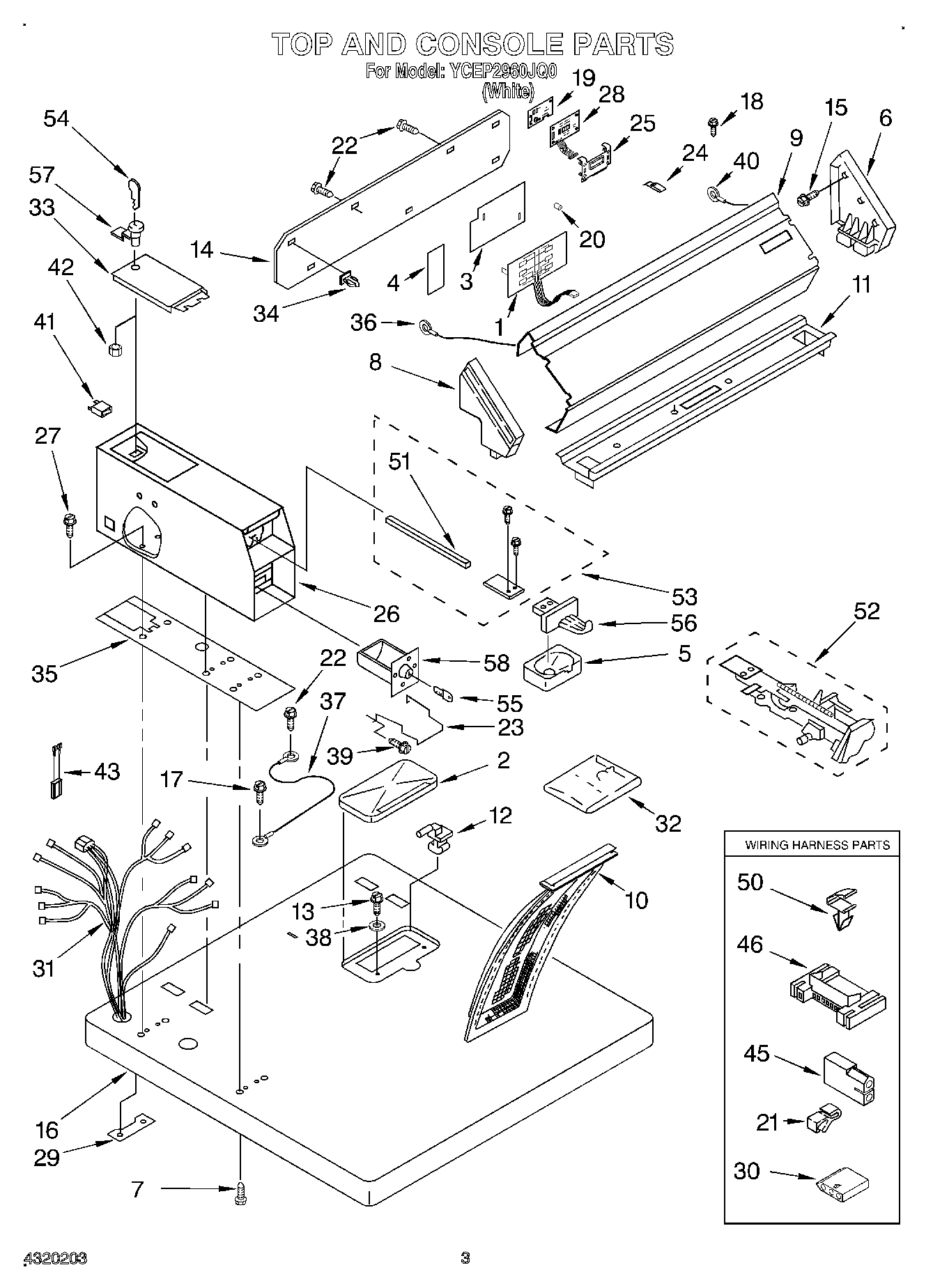

| 1 | Switch, Membrane |
| 2 | Cover, Lint Screen (White) |
| 3 | Backer Plate |
| 4 | Backer Plate, Side (2) |
| 5 | WP385421 Whirlpool Coin Operated Laundry Funnel |
| 6 | Cap, End (R.H.) |
| 7 | W10841059 Whirlpool Screw |
| 8 | W11686050 Whirlpool Drive Motor |
| 9 | Panel, Control |
| 10 | WP349639 Whirlpool Lint Filter |
| 11 | Bracket, Control |
| 12 | WPW10044480 Whirlpool Hinge Assembly |
| 12 | WPW10044470 Whirlpool Hinge Assembly |
| 13 | W11693756 Whirlpool Screw Assembly |
| 14 | Panel, Rear |
| 15 | WPW10109200 Whirlpool Screw |
| 16 | Top |
| 17 | WP90767 Whirlpool Screw |
| 18 | WPW10366705 Whirlpool Screw |
| 19 | Control Board |
| 20 | Cap, Stud |
| 21 | W10113937 Whirlpool Clamp |
| 22 | SCREW |
| 23 | Guide, Drawer |
| 24 | Clip (2) |
| 25 | Lens, Display |
| 26 | Case, Meter |
| 27 | W11715721 Whirlpool Screw Assembly |
| 28 | Board, Display |
| 29 | 3347825 Whirlpool Plate |
| 30 | 3936144 Whirlpool Connector |
| 31 | Harness, Wiring |
| 32 | 279950 Whirlpool Funnel |
| 33 | W11283272 Whirlpool Washer Dryer Meter Case Access Door |
| 34 | WP689559 Whirlpool Nut |
| 35 | WP3954812 Whirlpool Cushion |
| 36 | Wire, Ground |
| 37 | Wire, Ground |
| 38 | Washer |
| 39 | 339805 Whirlpool Screw |
| 40 | Wire, Ground |
| 41 | Switch, Service Diagnostic |
| 42 | WP90406 Whirlpool Nut |
| 43 | A.C. Line Filter |
| 45 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 46 | 3395683 Whirlpool Connector |
| 50 | WP3394427 Whirlpool Clip |
