YCEP2960JQ0 03 – SECTION

YCEP2960JQ0 03 – SECTION

Written by

in

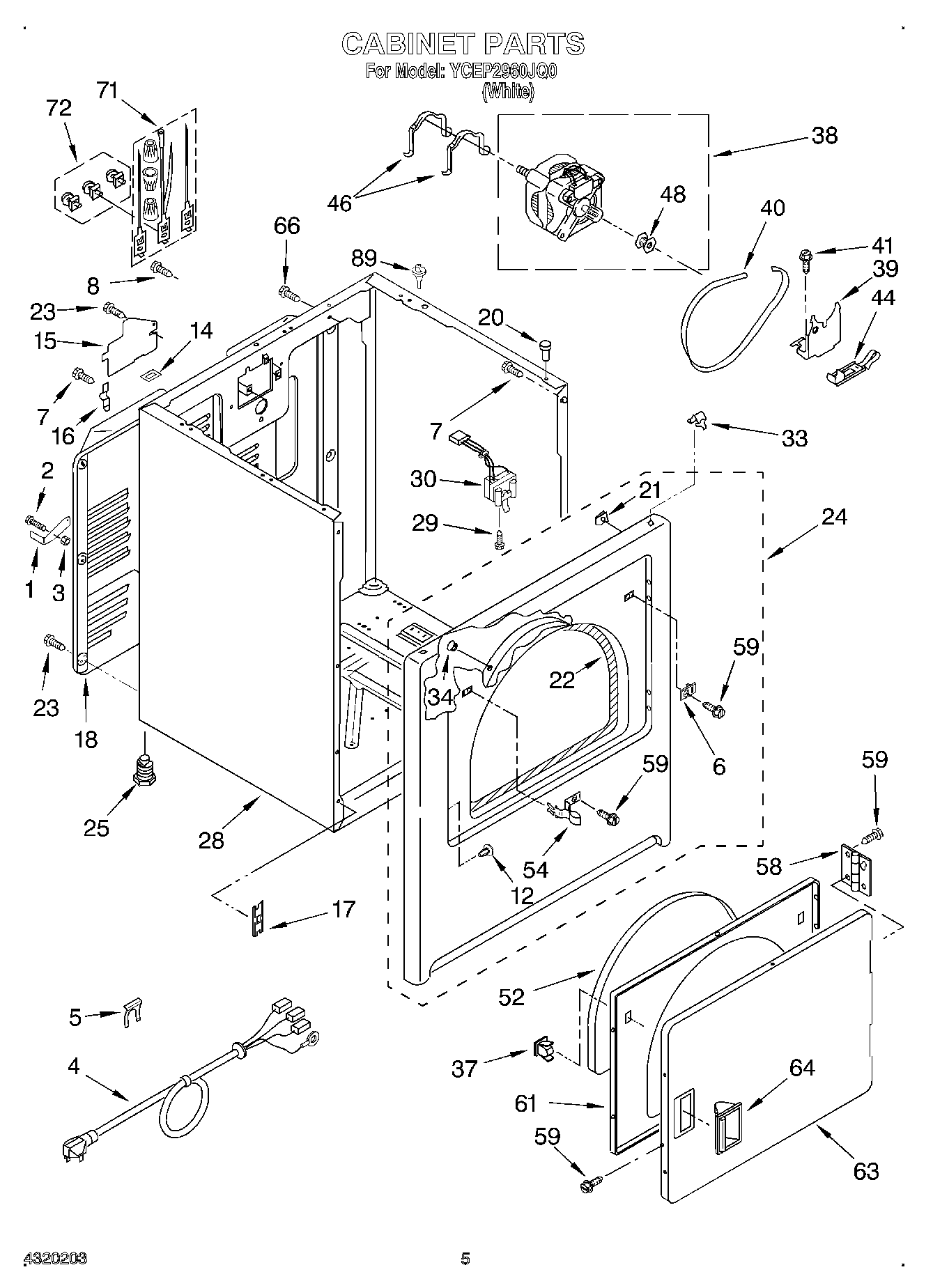

YCEP2960JQ0 03 – SECTION

Products

PositionProduct
1Bracket, Top Lock
2BOLT, 5/16-18 X 2 3/4
390984 Whirlpool Nut
4CORD-POWER
5W11712577 Whirlpool Clip
6WP3403630 Whirlpool Plug
7SCREW
8WP308685 Whirlpool Microwave Screw
12WP3404413 Whirlpool Plug
1418849 Whirlpool Pad
15Cover, Block
16WP8066217 Whirlpool Hinge
17W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
18280043 Whirlpool Rear Panel
20Locator, Top
21WP98234 Whirlpool Nut
22W11035878 Whirlpool Bearing and Seal
23WP693995 Whirlpool Screw
24Panel, Front
2549621 Whirlpool Leveling Feet
28Cabinet (Includes Illus. Nos. 5, 7, 15, 16 & 57) (White)
29WP3395530 Whirlpool Screw
30SWITCH-DOOR DRYER
33WP18776 Whirlpool Lock
34279220 Whirlpool Clip
37279570 Whirlpool Dryer Door Latch Kit
38279827 Whirlpool Dryer Drive Motor
39WP348780 Whirlpool Base
40341241 Whirlpool Dryer Drum Belt
413400500 Whirlpool Screw
44WP691366 Whirlpool Dryer Idler Pulley Assembly
46WP660658 Whirlpool Clamp
48WP8066184 Whirlpool Dryer Motor Pulley
52SEAL-DOOR DRYER
54W11429589 Whirlpool Strike
58WPW10362431 Whirlpool Hinge Assembly
59WP488627 Whirlpool Refrigerator Screw
61WP3402341 Whirlpool Door
63W10861227 Whirlpool Door Assembly
64WP3405184 Whirlpool White Door Handle
66W10850756 Whirlpool Screw
71279318 Whirlpool Terminal
72279393 Whirlpool Terminal Block Screw and Nut Kit
89Locator, Top
