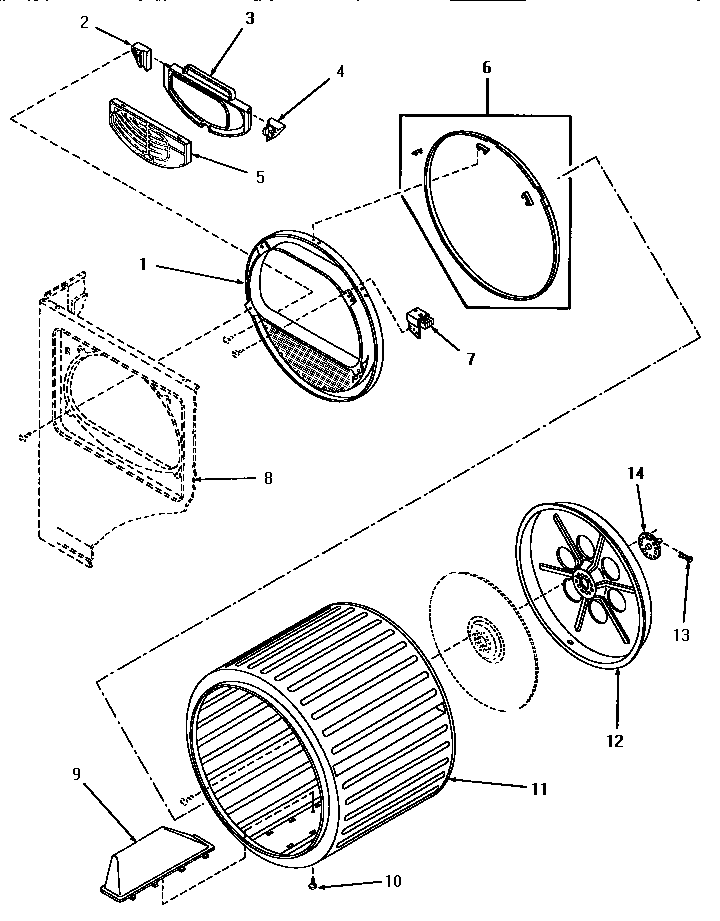

YE1203 06 – LINT FILTER AND DRUM ASSY

YE1203 06 – LINT FILTER AND DRUM ASSY

Written by

in

YE1203 06 – LINT FILTER AND DRUM ASSY

Products

Position	Product
1	MAY 13677
2	MAY 13683
3	MAY 13724
4	MAY 13684
5	MAY 13723
6	MAY 13679
7	MAY 13819
8	SEE NOTE GROUND WIRE, GREEN
9	MAY 13688
10	MAY 13689
11	MAY 13685
12	MAY 13686
13	MAY 13619
14	MAY 13687
