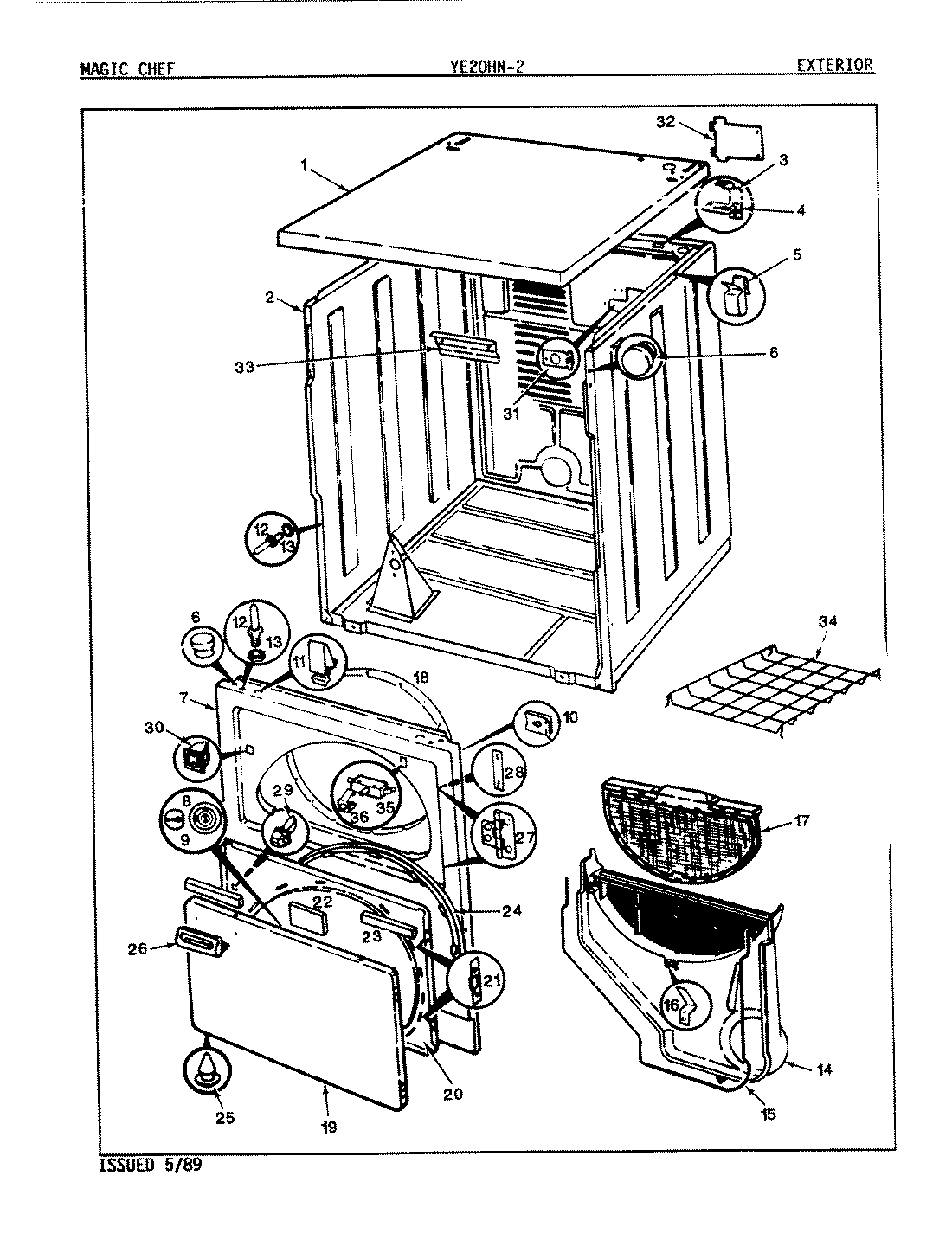

| 1 | MAY 53-1711 |
| 1 | MAY 53-0314 |
| 2 | MAY 53-0160 |
| 2 | MAY 53-0160-25 |
| 2 | MAY 53-0160-24 |
| 3 | MAY 63-5712 |
| 4 | MAY 33-0930 |
| 4 | WP90767 Whirlpool Screw |
| 5 | MAY 25-3034 |
| 6 | MAY 33-2653 |
| 7 | MAY 53-0726 |
| 10 | MAY 25-7817 |
| 10 | WP489478 Whirlpool Refrigerator Screw |
| 11 | WP25-7220 Whirlpool Cabinet Clip |
| 12 | MAY 63-6148 |
| 13 | MAY 25-0224 |
| 13 | MAY 53-0200 |
| 14 | MAY 53-1299 |
| 14 | MAY 53-0917 |
| 15 | MAY 53-1298 |
| 15 | 12001324 Whirlpool Collector Duct |
| 16 | MAY 53-0123 |
| 17 | WP53-0918 Whirlpool Lint Filter |
| 18 | MAY 53-0282 |
| 19 | MAY 53-0154 |
| 20 | MAY 53-0104 |
| 21 | MAY 53-0119 |
| 22 | MAY 53-0251 |
| 23 | MAY 53-0252 |
| 24 | MAY 25-7770 |
| 24 | MAY 53-0112 |
| 25 | MAY 25-3534 |
| 26 | MAY 53-0928 |
| 26 | MAY 25-7810 |
| 27 | MAY 53-0122 |
| 28 | W10756178 Whirlpool Screw |
| 28 | MAY 53-0121 |
| 29 | MAY 73-0033 |
| 30 | LA-1003 Whirlpool Dryer Door Catch and Metal Strike |
| 31 | MAY 53-0135 |
| 31 | WP489483 Whirlpool Screw |
| 32 | MAY 25-7857 |
| 32 | MAY 53-0284 |
| 33 | MAY 53-0133 |
| 33 | MAY 25-3457 |
| 34 | NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED) |
| 35 | MAY 53-0147 |
| 36 | MAY 63-5990 |
