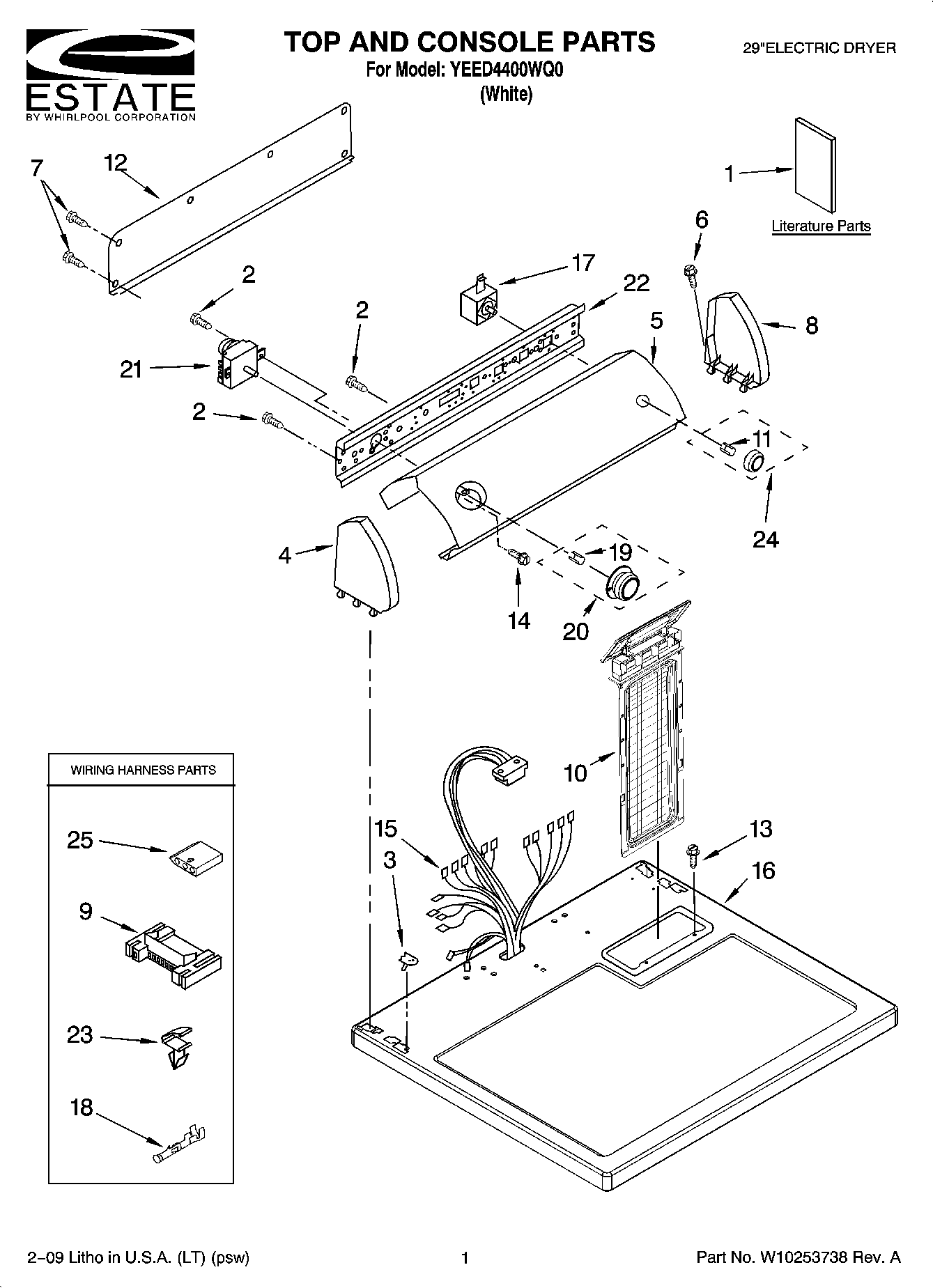

YEED4400WQ0 01 – TOP AND CONSOLE PARTS

YEED4400WQ0 01 – TOP AND CONSOLE PARTS

Written by

in

YEED4400WQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Instructions, Installation
1Guide, Use & Care
1Sheet, Cycle Feature
2WP90767 Whirlpool Screw
3WP357213 Whirlpool Hinge Stopper
5Panel, Control
6WP388326 Whirlpool Screw
7WP693995 Whirlpool Screw
8279960 Whirlpool Endcap Assembly
93395683 Whirlpool Connector
10WPW10717210 Whirlpool Dryer Lint Screen Filter
11WP8536939 Whirlpool Spring Clip
12W10103406 Whirlpool Rear Panel
13W11693756 Whirlpool Screw Assembly
143400859 Whirlpool Screw
15Harness, Wiring
16Top
17WP3977456 Whirlpool Start Switch
18WP94614 Whirlpool Terminal
19WP688805 Whirlpool Spring Clip
20WP8557455 Whirlpool Knob Timer
21WPW10185970 Whirlpool Timer
22Bracket, Control
23WP3394427 Whirlpool Clip
24Knob, Push-To-Start
253936144 Whirlpool Connector
