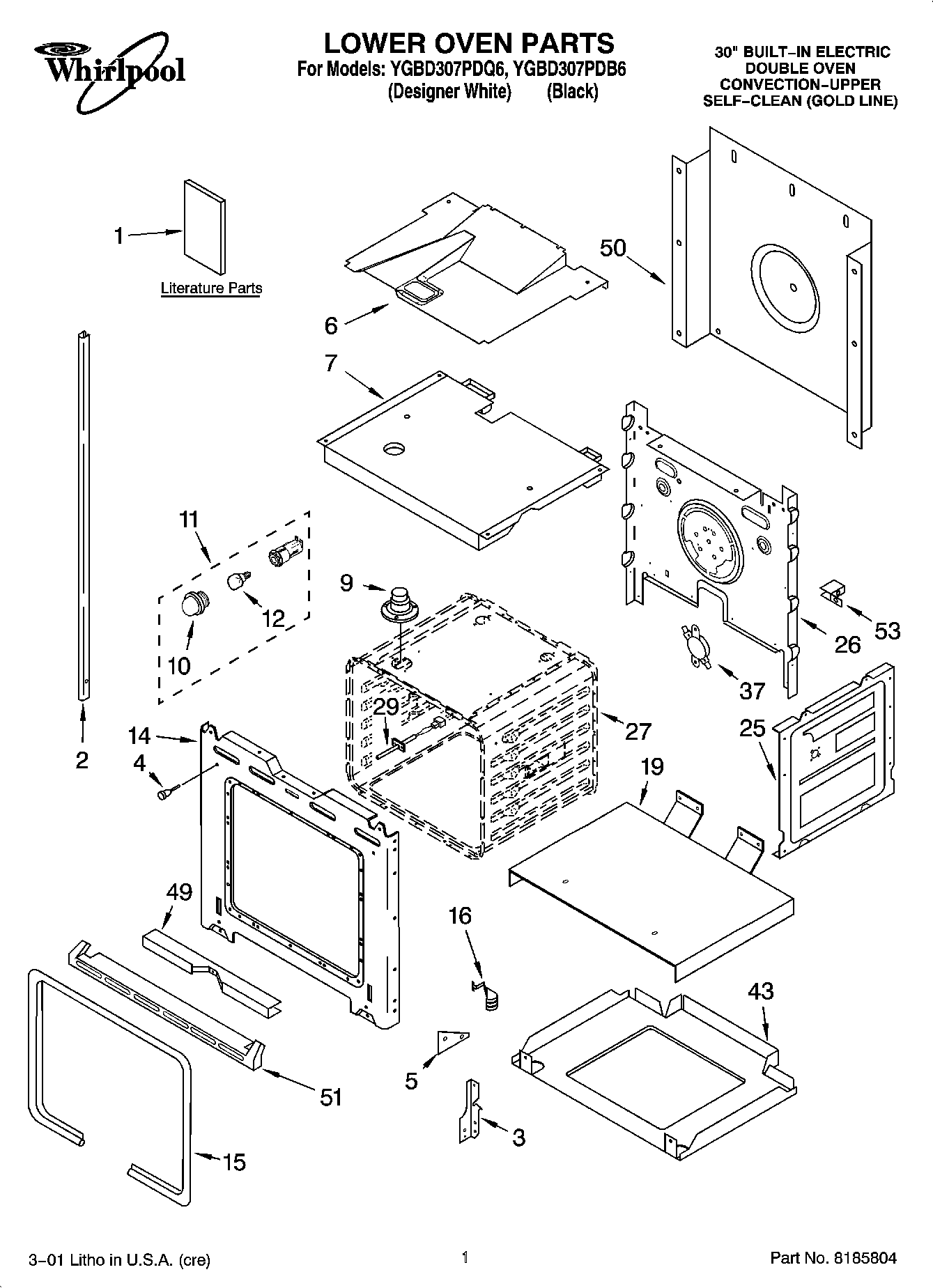

YGBD307PDB6 01 – LOWER OVEN PARTS

YGBD307PDB6 01 – LOWER OVEN PARTS

Written by

in

YGBD307PDB6 01 – LOWER OVEN PARTS

Products

PositionProduct
1Safer Cooking Tips
1Use & Care Guide
1Literature Parts (Installation Instructions)
1Literature Parts (Use & Care Guide) (French)
1Literature Parts (Tech Sheet (Oven))
2Trim, Side (RH Black)
2Trim, Side (Right Hand) (White Model)
2WP8281236 Whirlpool Screw
2Trim, Side (White)
2Trim, Side (LH Black)
2Trim, Side (Left Hand)) (White Model)
3Reciever, Hinge (Right Hand)
3Reciever, Hinge (Left Hand)
44448520 Whirlpool Oven Bumper
5WP4455509 Whirlpool Support Bracket
6Divider, Vent
7Top, Chassis
9SCREW
9W10861715 Whirlpool Vent Tube
10Lens, Light
11WPW10734065 Whirlpool Light
12WP4173175 Whirlpool Light Bulb
14Frame, Front
14WP4450118 Whirlpool Nut
14Screw
15W11675844 Whirlpool Oven Gasket
1698005642 Whirlpool Clip
19Support, Insulation
25W10782197 Whirlpool Side Panel
26Back, Chassis
27Liner, Oven (Not serviceable)
29WPW10131825 Whirlpool Oven Temperature Sensor
37WP9759242 Whirlpool Thermostat
43WPL 4455530
49WP4449154 Whirlpool Screw
49WP4448933 Whirlpool Retainer
50WP4451747 Whirlpool Rear Cover
51WP3400832 Whirlpool Screw
51WPL 4448478
51WPL 4448477
53W11684730 Whirlpool Insulation
53WPL 4449845
53WP4449809 Whirlpool Screw
53FOLLOWING PARTS NOT ILLUSTRATED INSULATION
53WPL 4450365
