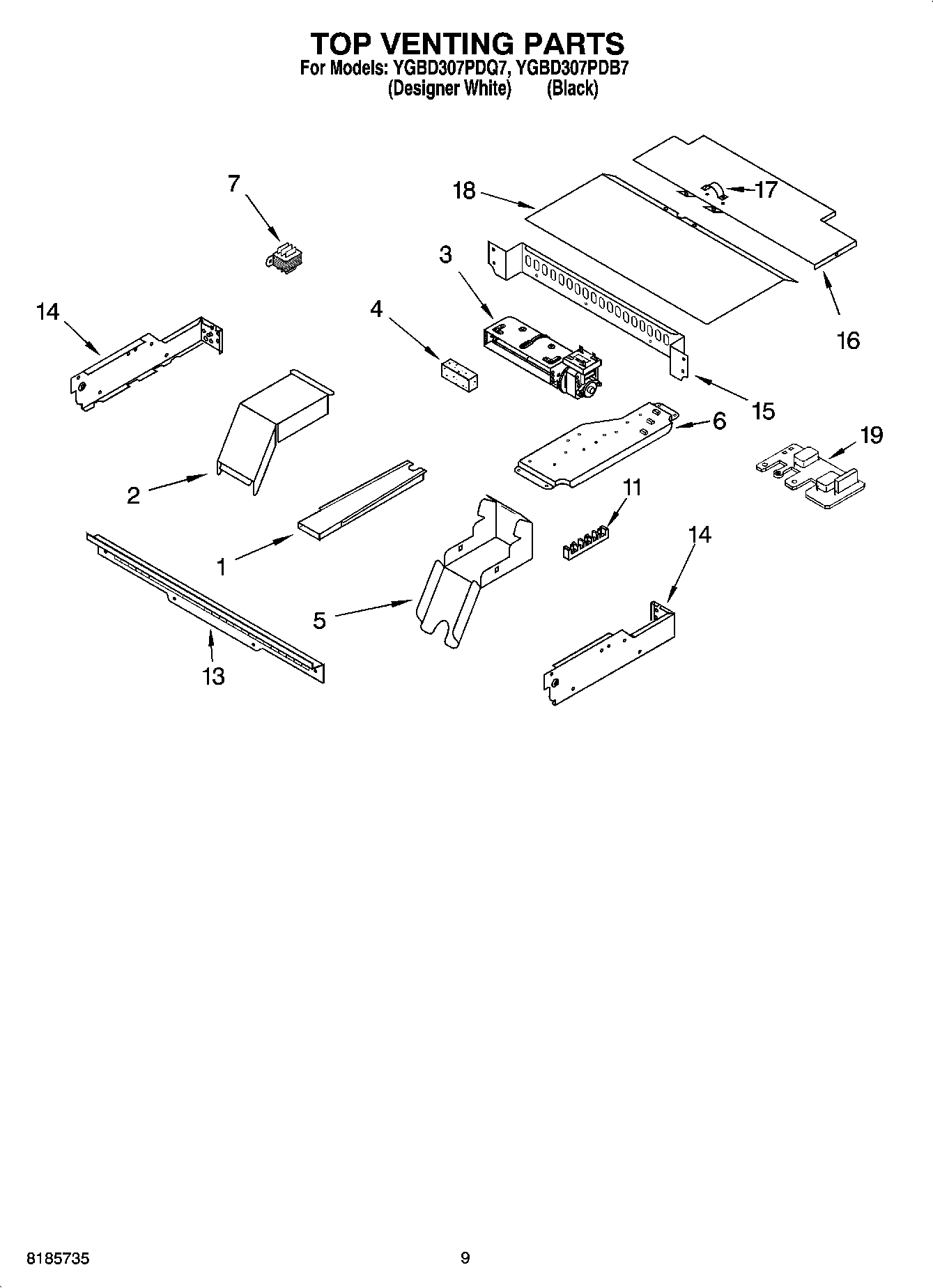

YGBD307PDB7 07 – TOP VENTING PARTS, OPTIONAL PARTS

YGBD307PDB7 07 – TOP VENTING PARTS, OPTIONAL PARTS

Written by

in

YGBD307PDB7 07 – TOP VENTING PARTS, OPTIONAL PARTS

Products

PositionProduct
WPL ARI136278A
18 Ga. 80~c Rating (Red)
Wire (12 Ga. 150 c Black)
Wire (14 Ga. 150 c Yellow)
Wire (14 Ga. 150 c Orange)
Wire (14 Ga. 150 c Green)
Wire (14 Ga. 150 c Brown)
Wire (14 Ga. 150 c Blue)
WP261869 Whirlpool Microwave Paint
Wire (14 Ga. 200 c Brown)
1
WPL ARI136277A
WPL ARI136276A
Harness, Wire (Main)
261900 Whirlpool Microwave Spray
Harness, Wire (Latch)
WPL ARI136279A
4451761 Whirlpool Oven Support Bracket
WPL 591014
242831 Whirlpool Oven Wire
Spacer, Harness
16515 Whirlpool Clip
285006 Whirlpool Spray
WPW10339879 Whirlpool Wire Tie
4450800 Whirlpool Oven Screw
72017 Whirlpool Appliance Touch-Up Paint White
4448664 Whirlpool Oven Mounting Bracket
WP4449809 Whirlpool Screw
Wire, 25“ Roll (White 14 GA.)
Wire, 25` Roll (Red 14 Ga.)
WP112432 Whirlpool Nut Assembly
72032 Whirlpool Touch Up Paint Black
Wire, 25` Roll (Black 14 Ga.)
WP482338 Whirlpool Refrigerator Adhesive
814381 Whirlpool Pin
WP4448950 Whirlpool Screw
350930 Whirlpool White Spray Paint
Conduit, Double
14451759 Whirlpool Oven Exhaust Vent
24455178 Whirlpool Oven Top Elbow
3WP4455352 Whirlpool Mounting Bracket
3WPW10016550 Whirlpool Blower Cooling Fan
3Blower
4W10491987 Whirlpool Foam Seal
54455177 Whirlpool Oven Bottom Elbow
6Plate, Mounting
7Transformer, Control
11Screw
11WP8203546 Whirlpool Terminal Block
13Vent, Control Panel
13WP4450038 Whirlpool Screw
14WP4449154 Whirlpool Screw
14W10790240 Whirlpool Side Assembly Complete
14W10755214 Whirlpool Side Complete
15Back, Control
16WP4450551 Whirlpool Top Cabinet
18WP4452367 Whirlpool Top Cover
184455191 Whirlpool Oven Mounting Plate
19WP4451985 Whirlpool Noise Filter Board
