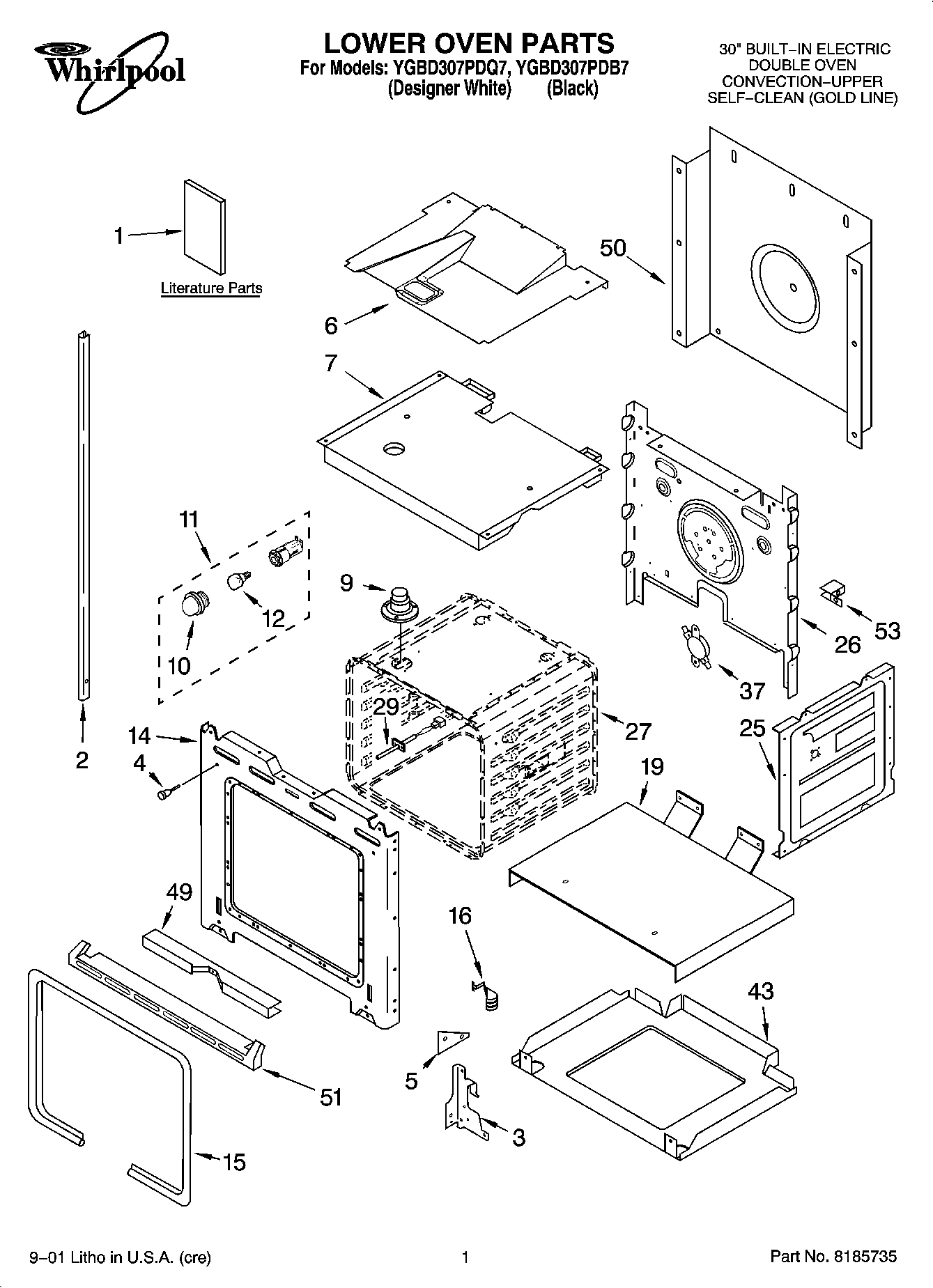

YGBD307PDQ7 01 – LOWER OVEN PARTS
Written by
in
YGBD307PDQ7 01 – LOWER OVEN PARTS
Products
Position
Product
1
Safer Cooking Tips
1
Literature Parts (Use & Care Guide)
1
Literature Parts (Use & Care Guide (French))
1
Literature Parts (Installation Instructions)
1
Literature Parts (Tech Sheet (Oven))
2
Trim, Side (Right Hand) (White Model)
2
Trim, Side (Left Hand)) (White Model)
2
Trim, Side (RH Black)
2
Trim, Side (LH Black)
2
WP8281236 Whirlpool Screw
3
WP4455605 Whirlpool Left Hand Hinge
3
WP4455606 Whirlpool Right Hand Hinge
4
4448520 Whirlpool Oven Bumper
5
WP4455509 Whirlpool Support Bracket
6
Divider, Vent
7
Top, Chassis
9
W10861715 Whirlpool Vent Tube
9
SCREW
10
Lens, Light
11
WPW10734065 Whirlpool Light
12
WP4173175 Whirlpool Light Bulb
14
Screw
14
Frame, Front
14
WP4450118 Whirlpool Nut
15
W11675844 Whirlpool Oven Gasket
16
98005642 Whirlpool Clip
19
Support, Insulation
25
W10782197 Whirlpool Side Panel
26
Back, Chassis
27
Liner, Oven (Not serviceable)
29
WPW10131825 Whirlpool Oven Temperature Sensor
37
WP9759242 Whirlpool Thermostat
43
WPL 4455530
49
WP4449154 Whirlpool Screw
49
WP4448933 Whirlpool Retainer
50
WP4451747 Whirlpool Rear Cover
51
WP3400832 Whirlpool Screw
51
WPL 4448477
51
WPL 4448478
53
W11684730 Whirlpool Insulation
53
WPL 4449845
53
WP4449809 Whirlpool Screw
53
WPL 4450365
53
FOLLOWING PARTS NOT ILLUSTRATED INSULATION
←
