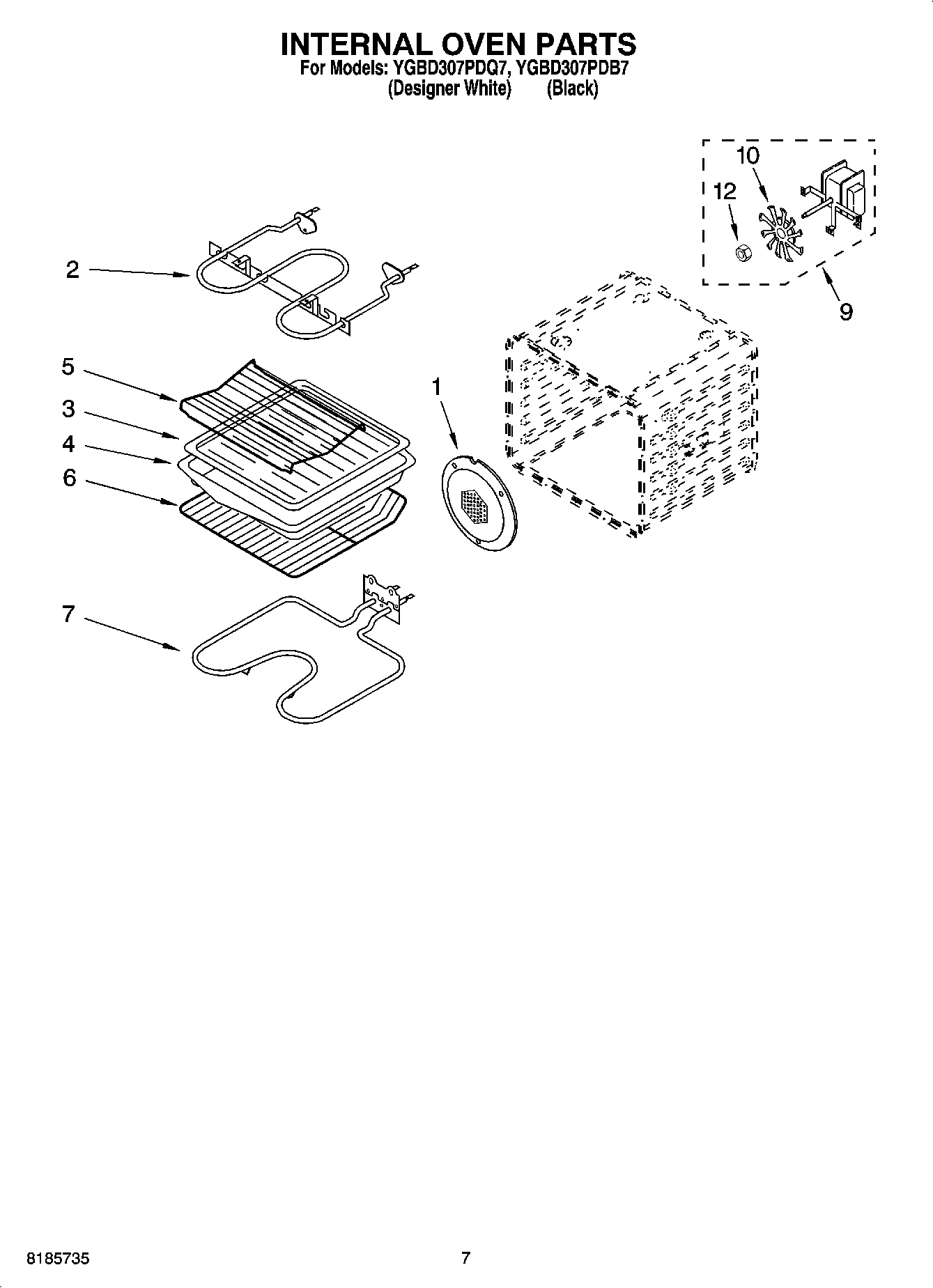

YGBD307PDQ7 05 – INTERNAL OVEN PARTS

Written by

Products

Position	Product
1	WPW10160821 Whirlpool Fan Cover
2	WP9760767 Whirlpool Range Wall Oven Broil Element
3	4396923 Whirlpool Broil Pan Set Gray Porcelain
5	Rack, Roasting
6	WPW10179152 Whirlpool Rack Oven
7	WPW10207397 Whirlpool Oven Bake Element
9	WP4449154 Whirlpool Screw
9	Motor Convection
10	WP4452226 Whirlpool Convection Fan
12	Nut
