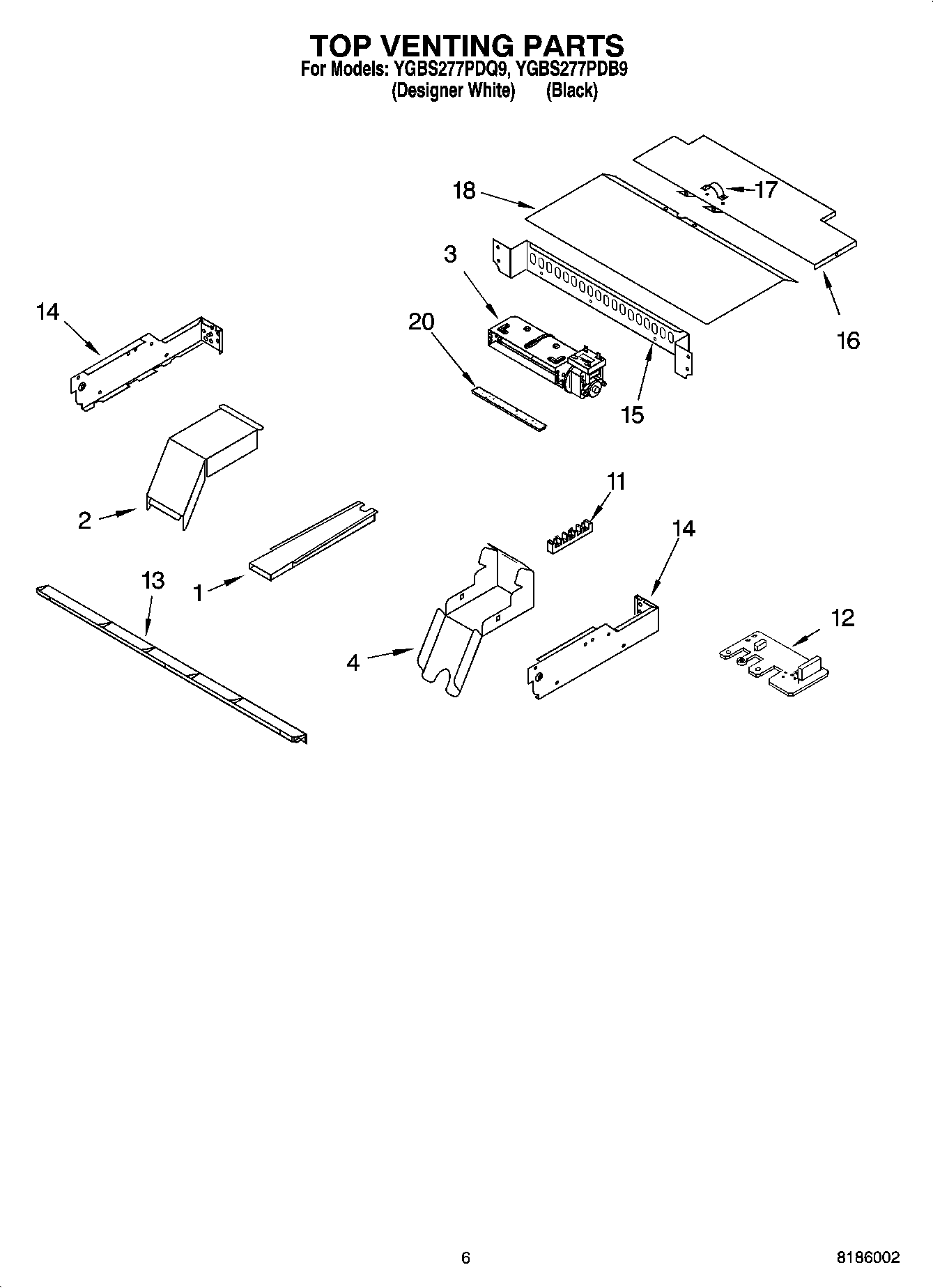

YGBS277PDB9 05 – TOP VENTING PARTS, OPTIONAL PARTS

Products

Position	Product
	WPL ARI136329A
	WPL 591014
	Wire (14 Ga. 150 c Green)
	Wire (14 Ga. 150 c Orange)
	Wire (14 Ga. 150 c Yellow)
	Wire (12 Ga. 150 c Black)
	18 Ga. 80~c Rating (Red)
	Wire (14 Ga. 200 c Brown)
	1
	4451761 Whirlpool Oven Support Bracket
	WPL ARI136330A
	WP4450952 Whirlpool Conduit
	261900 Whirlpool Microwave Spray
	8301399 Whirlpool Oven Wire Harness
	ADHESIVE
	SPLICING WIRES–25FT. LENGTH
	W
	Wire (14 Ga. 150 c Brown)
	Wire (14 Ga. 150 c Blue)
	WP261869 Whirlpool Microwave Paint
	350930 Whirlpool White Spray Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP4449809 Whirlpool Screw
	WP112432 Whirlpool Nut Assembly
	4448664 Whirlpool Oven Mounting Bracket
	Wire, 25“ Roll (White 14 GA.)
	Wire, 25` Roll (Red 14 Ga.)
	Wire, 25` Roll (Black 14 Ga.)
	4450800 Whirlpool Oven Screw
	WPW10339879 Whirlpool Wire Tie
	WP4448950 Whirlpool Screw
	814381 Whirlpool Pin
	242831 Whirlpool Oven Wire
	WP482338 Whirlpool Refrigerator Adhesive
	72032 Whirlpool Touch Up Paint Black
	285006 Whirlpool Spray
1	4451759 Whirlpool Oven Exhaust Vent
2	4455178 Whirlpool Oven Top Elbow
3	WP4455352 Whirlpool Mounting Bracket
3	Blower
4	4455177 Whirlpool Oven Bottom Elbow
11	WP8203546 Whirlpool Terminal Block
11	Screw
12	WP4451985 Whirlpool Noise Filter Board
13	WP4450038 Whirlpool Screw
13	Vent, (Control Panel)
14	W10790240 Whirlpool Side Assembly Complete
14	W10755214 Whirlpool Side Complete
15	Back, Control
16	Cover, Top Rear
18	Cover, Top Front
20	W10491987 Whirlpool Foam Seal
