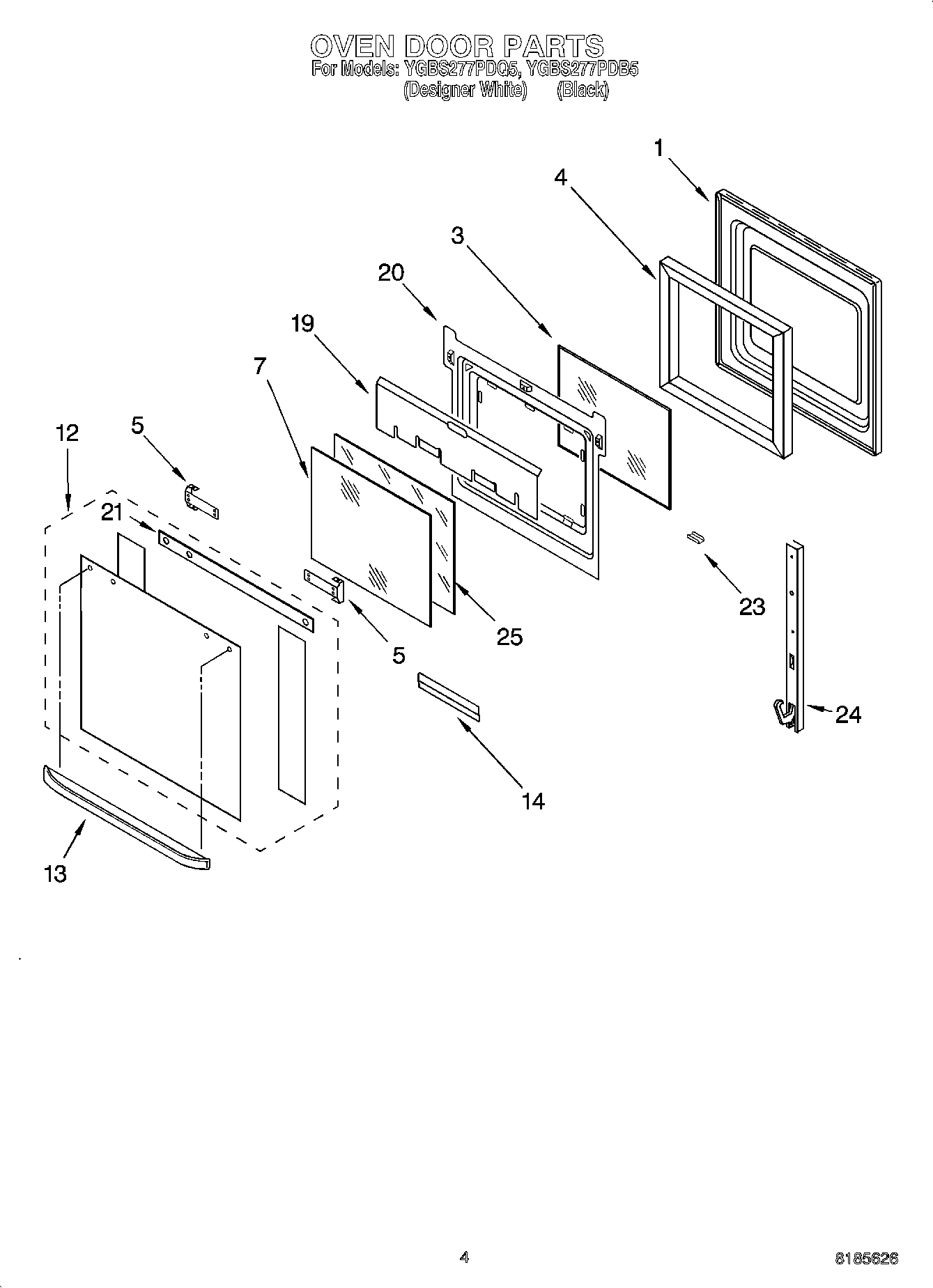

YGBS277PDQ5 03 – OVEN DOOR PARTS

Products

Position	Product
1	Door Liner
3	WP4449253 Whirlpool Glass Window
4	Insulation, Sides
5	Screw
5	Bracket, Handle
7	WP4449257 Whirlpool Door Glass
12	Door Glass Assy (Black Model)
12	Door Glass, Assy (White Model)
13	Handle, Door (White Model)
13	Handle, Door (Black Model)
14	Retainer, Glass
19	Shield, Heat
20	WP4449809 Whirlpool Screw
20	Retainer, Glass
21	Seal, Top
23	Clip, Retainer (Black Model)
23	Clip, Retainer (White Model)
24	WP4449743 Whirlpool Screw
24	WP4455524 Whirlpool Door Hinge
25	Glass, Inner
