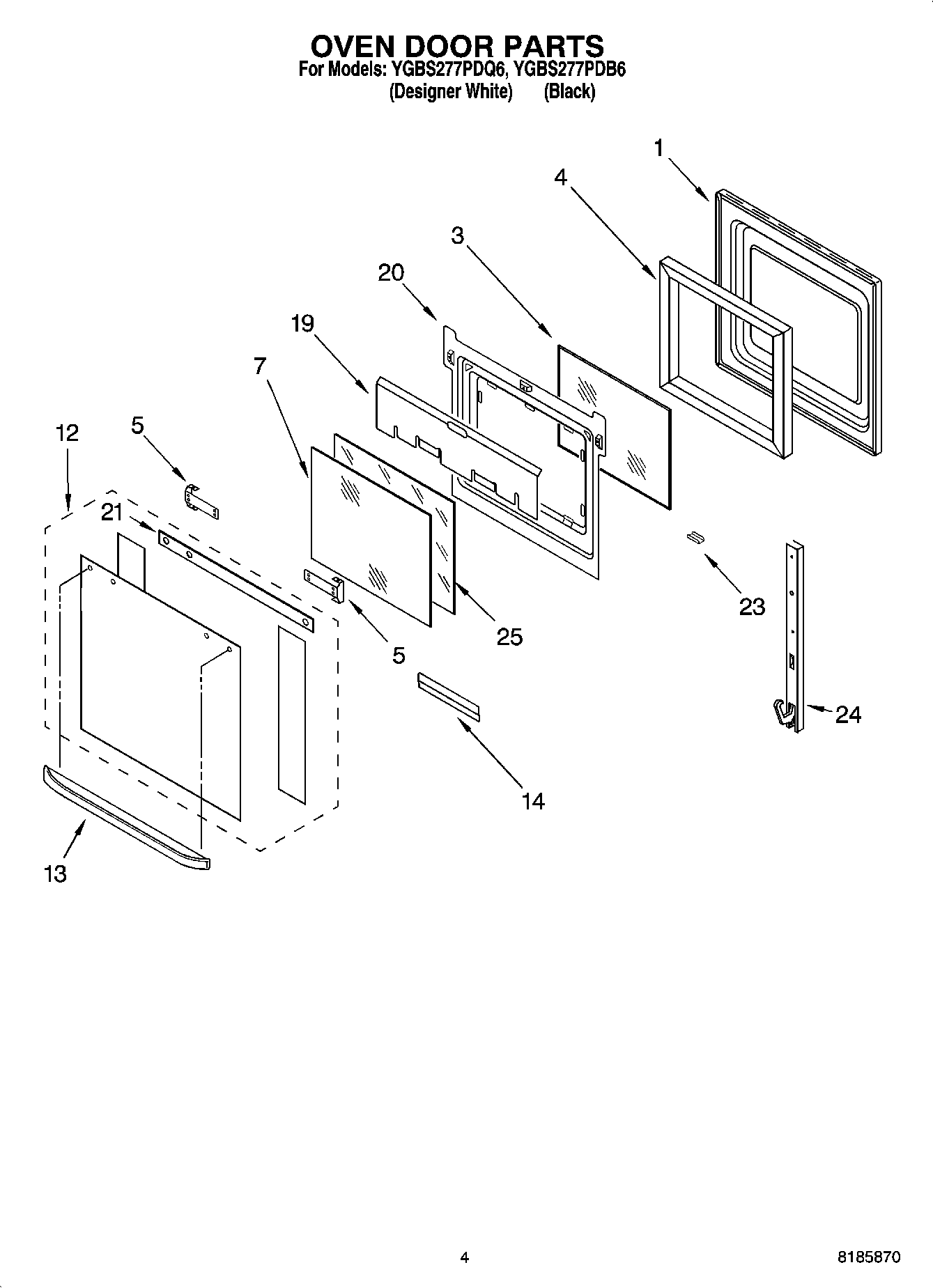

YGBS277PDQ6 03 – OVEN DOOR PARTS

YGBS277PDQ6 03 – OVEN DOOR PARTS

Written by

in

YGBS277PDQ6 03 – OVEN DOOR PARTS

Products

PositionProduct
1Door Liner
3WP4449253 Whirlpool Glass Window
4Insulation, Sides
5Screw
5Bracket, Handle
7WP4449257 Whirlpool Door Glass
12Door Glass Assy (Black Model)
12Door Glass, Assy (White Model)
13Handle, Door (Black Model)
13Handle, Door (White Model)
14Retainer, Glass
19Shield, Heat
20WP4449809 Whirlpool Screw
20Retainer, Glass
21Seal, Top
23Clip, Retainer (Black Model)
23Clip, Retainer (White Model)
24WP4455524 Whirlpool Door Hinge
24WP4449743 Whirlpool Screw
25Glass, Inner
